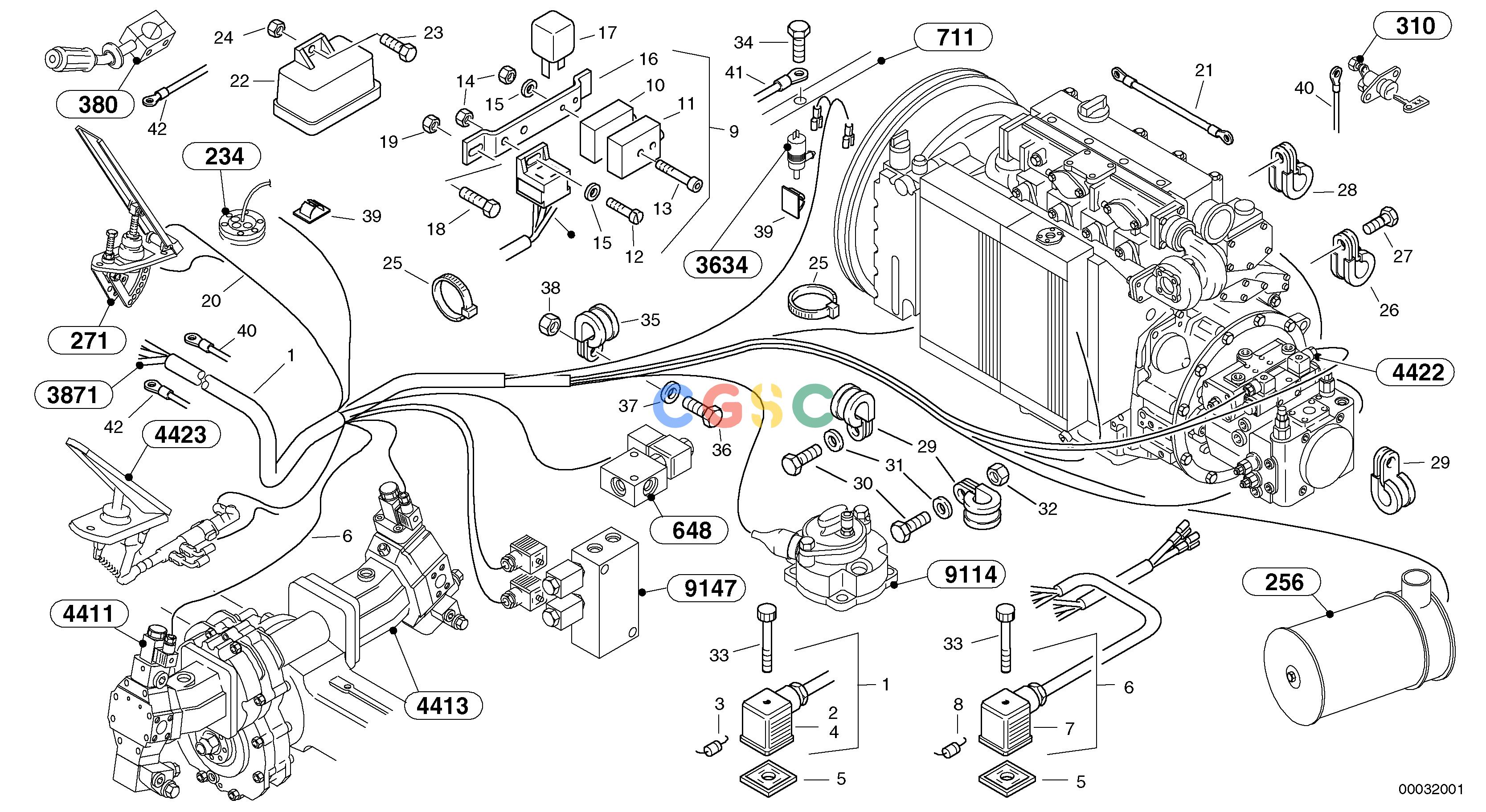

沃尔沃零件查询L40 Electric installationTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
987 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813549
|
[1] |
Electric wire, main line
|
|
| 8. |
ZM4374365
|
[1] |
Diode
|
|
| 9. |
ZM2813551
|
[1] |
Relay Bracket
|
|
| 10. |
VOE11882512
|
[1] |
Fuse
|
60A
|
| 11. |
VOE11882445
|
[1] |
Fuse
|
30A
|
| 12. |
ZM7096665
|
[2] |
Screw
|
M4x10
|
| 13. |
ZM2810998
|
[2] |
Screw
|
M4x55
|
| 14. |
VOE955779
|
[4] |
Hexagon nut
|
M4
|
| 15. |
VOE955891
|
[4] |
Plain washer
|
A4,3
|
| 16. |
ZM2812462
|
[1] |
Bracket
|
|
| 17. |
ZM2813686
|
[1] |
Relay
|
40A
|
| 2. |
VOE14371057
|
[4] |
Socket
|
|
| 18. |
ZM7094807
|
[2] |
Screw
|
M5x12
|
| 19. |
VOE955780
|
[2] |
Hexagon nut
|
M5
|
| 20. |
ZM2814121
|
[1] |
Electric wire
|
|
| 21. |
ZM2813866
|
[1] |
Cable
|
|
| 22. |
VOE11099286
|
[1] |
Relay
|
|
| 23. |
VOE955269
|
[1] |
Hexagon screw
|
M6x12
|
| 24. |
ZM7098000
|
[1] |
Nut
|
M6
|
| 25. |
ZM4375500
|
[12] |
Cable clamp
|
|
| 26. |
ZM5054800
|
[1] |
Clip
|
D1-16X20
|
| 27. |
ZM7095370
|
[1] |
Screw
|
M8x16
|
| 3. |
ZM4374365
|
[4] |
Diode
|
|
| 28. |
ZM2290453
|
[1] |
Pipe clip
|
|
| 29. |
ZM4383294
|
[4] |
Clip
|
|
| 30. |
ZM7095370
|
[4] |
Screw
|
M8x16
|
| 31. |
ZM7098750
|
[3] |
Washer
|
B 8,4
|
| 32. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 33. |
VOE11305562
|
[7] |
Screw
|
|
| 34. |
VOE13970944
|
[1] |
Hexagon screw
|
M10x16
|
| 35. |
ZM4343093
|
[1] |
Clamp
|
D1-28x20
|
| 36. |
ZM7095068
|
[1] |
Screw
|
M6x25
|
| 37. |
VOE955892
|
[1] |
Plain washer
|
B6,4
|
| 4. |
VOE11306801
|
[2] |
Socket
|
|
| 38. |
ZM7098000
|
[1] |
Nut
|
M6
|
| 39. |
VOE11305436
|
[4] |
Clip
|
|
| 40. |
ZM2813869
|
[1] |
Cable
|
|
| 41. |
ZM2813867
|
[1] |
Cable
|
|
| 42. |
ZM2813788
|
[1] |
Wire
|
|
| 5. |
ZM2251940
|
[6] |
Gasket
|
|
| 6. |
ZM2814286
|
|
Wire
|
|
| 6. |
ZM2814286
|
[1] |
Wire
|
|
| 6. |
ZM2815420
|
[1] |
Electric wire
|
191 0119?
|
| 7. |
VOE14371057
|
[1] |
Socket
|
|
