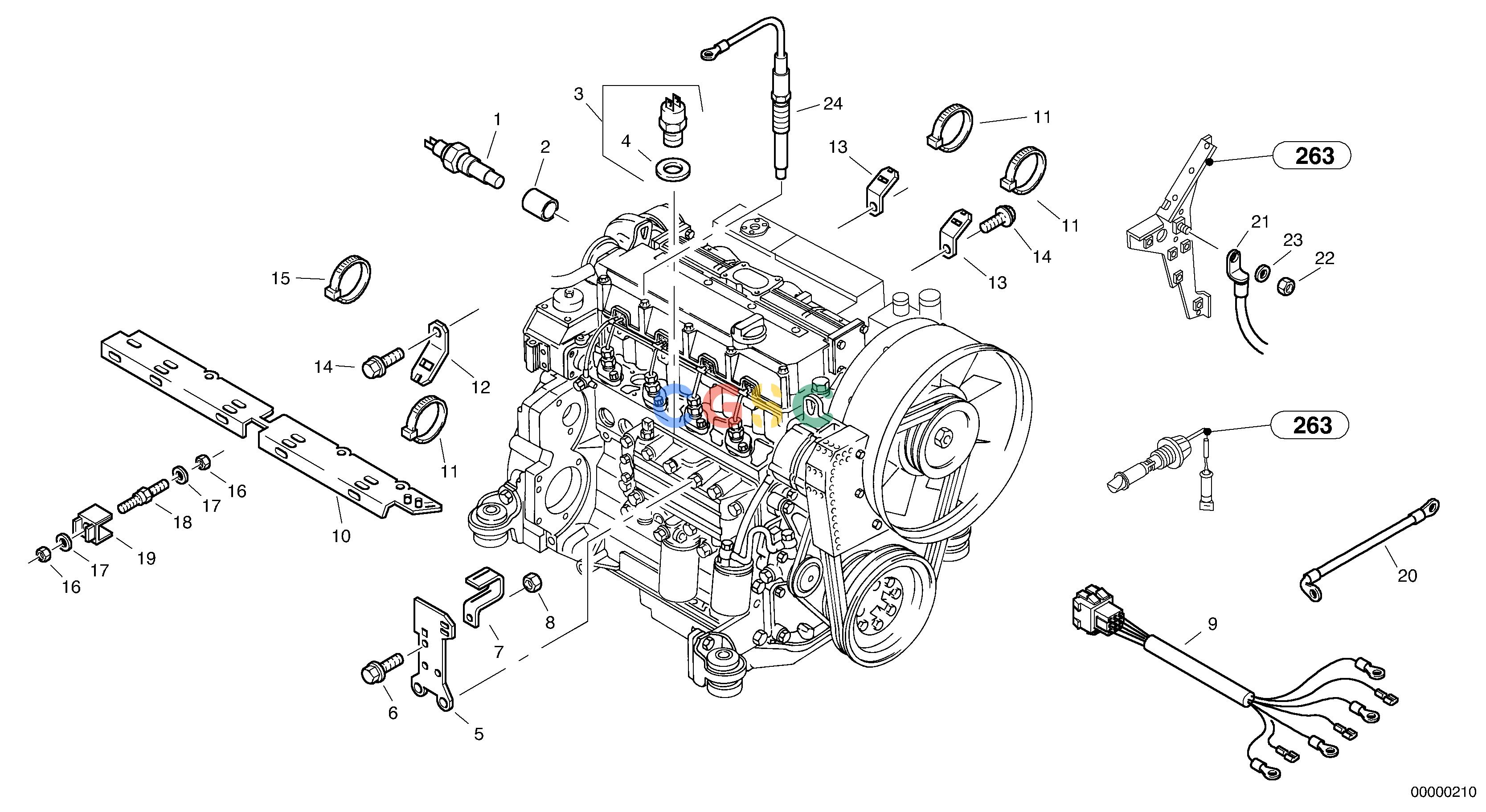

沃尔沃零件查询L40 Electric - EngineTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
415 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2903831
|
[1] |
Temperature transmitter
|
|
| 10. |
VOE20459964
|
[1] |
Cover plate
|
|
| 11. |
VOE4881440
|
[REQ] |
Cable tie
|
|
| 12. |
VOE20450700
|
[1] |
Bracket
|
|
| 13. |
VOE20450997
|
[3] |
Bracket
|
|
| 14. |
ZM2900671
|
[2] |
Screw
|
|
| 15. |
VOE20460347
|
[REQ] |
Clamping band
|
|
| 16. |
VOE20460344
|
[2] |
Hexagon nut
|
|
| 17. |
VOE20460345
|
[2] |
Washer
|
6,4
|
| 18. |
VOE20580716
|
[1] |
Terminal Screw
|
|
| 19. |
VOE20450956
|
[1] |
Cable clamp
|
|
| 2. |
VOE20405788
|
[1] |
Sleeve
|
|
| 20. |
ZM2907346
|
[1] |
Wire Assembly
|
|
| 21. |
VOE20797571
|
[1] |
Cable stem
|
|
| 22. |
ZM2907374
|
[1] |
Hexagon Nut
|
M12
|
| 23. |
ZM2907375
|
[1] |
Washer
|
A13
|
| 24. |
ZM2907355
|
[4] |
Glow pin plug
|
|
| 3. |
VOE20555385
|
[1] |
Sensor
|
|
| 4. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 5. |
ZM2900668
|
[1] |
Retainer
|
|
| 6. |
VOE20450741
|
[1] |
Bolt
|
|
| 7. |
VOE20747120
|
[1] |
Iron bracket
|
|
| 8. |
ZM7098000
|
[1] |
Nut
|
M6
|
| 9. |
ZM2907348
|
[1] |
Cable tree
|
|
