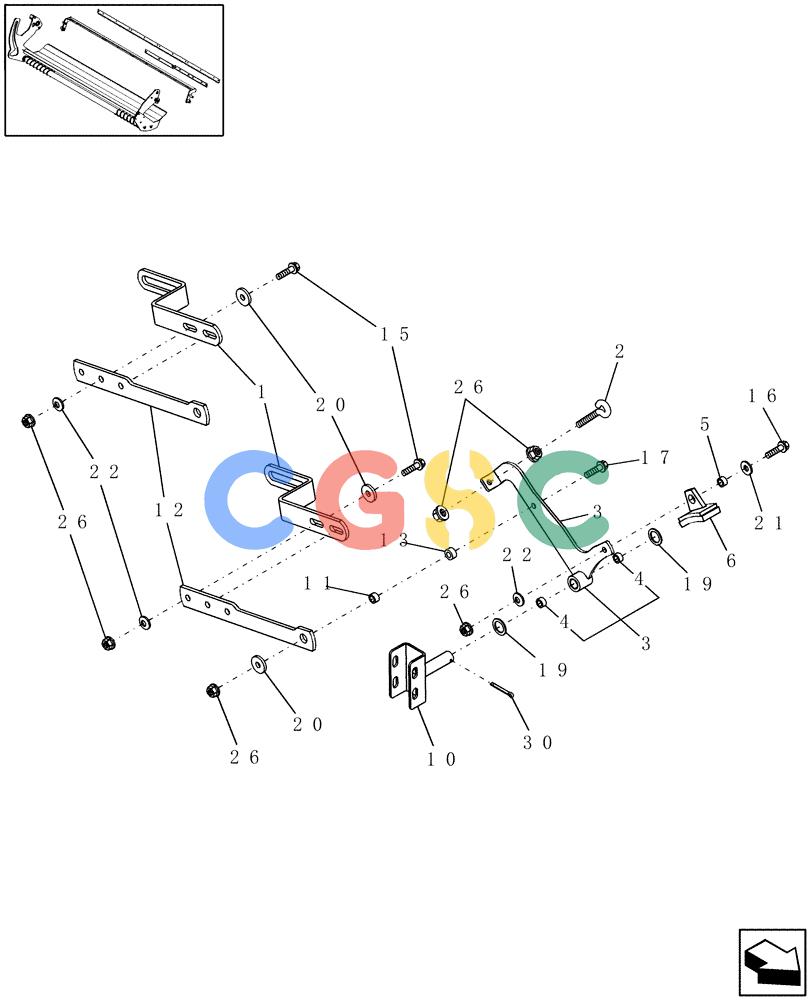

凯斯零件查询(RBX453) - CASE IH ROUND BALER (9/05-12/06) (15.79) - NET BRAKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
1007 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86613366
|
[1] |
ANGLE
|
NH
Superseded by part number: 87643626
|
| 2. |
46041
|
[1] |
EYEBOLT
|
NH
3/8"-16 x 3-1/2"
|
| 3. |
86705241
|
[1] |
SUPPORT
|
NH
|
| 4. |
84024585
|
[2] |
BUSHING,20mm ID x 23mm OD x 15mm Thk
|
PA
|
| 5. |
84024749
|
[1] |
SPACER,10.5mm ID x 16mm OD x 8.5mm L
|
PA
|
| 6. |
86641342
|
[1] |
BRAKE PAD,17.37mm Thk
|
NH
|
| 10. |
86615124
|
[1] |
CHANNEL
|
NH
Superseded by part number: 87644256
|
| 11. |
698748
|
[1] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 12. |
86613365
|
[1] |
STRAP
|
NH
Superseded by part number: 87643640
|
| 13. |
87017552
|
[1] |
SPACER
|
PA
|
| 15. |
811-10025
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 86633356
|
| 16. |
844-10030
|
[1] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 17. |
844-10060
|
[1] |
BOLT,Hvy Hex, M10 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 9804265
|
| 19. |
495-21081
|
[2] |
WASHER,3/4"
|
CAS
Superseded by part number: 86511191
|
| 20. |
678235
|
[1] |
WASHER
|
NH
Hardened, 1-1/4" OD
|
| 21. |
9827956
|
[1] |
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
|
NH
Hardened, 3/8"
|
| 22. |
140045
|
[3] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 25. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 26. |
825-2410
|
[4] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 30. |
733-4032
|
[1] |
COTTER PIN,M4 x 32
|
CAS
Superseded by part number: 412685
|
