凯斯零件查询(RBX453) - CASE IH ROUND BALER (9/05-12/06) (15.80) - NET ACTUATOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
184 次

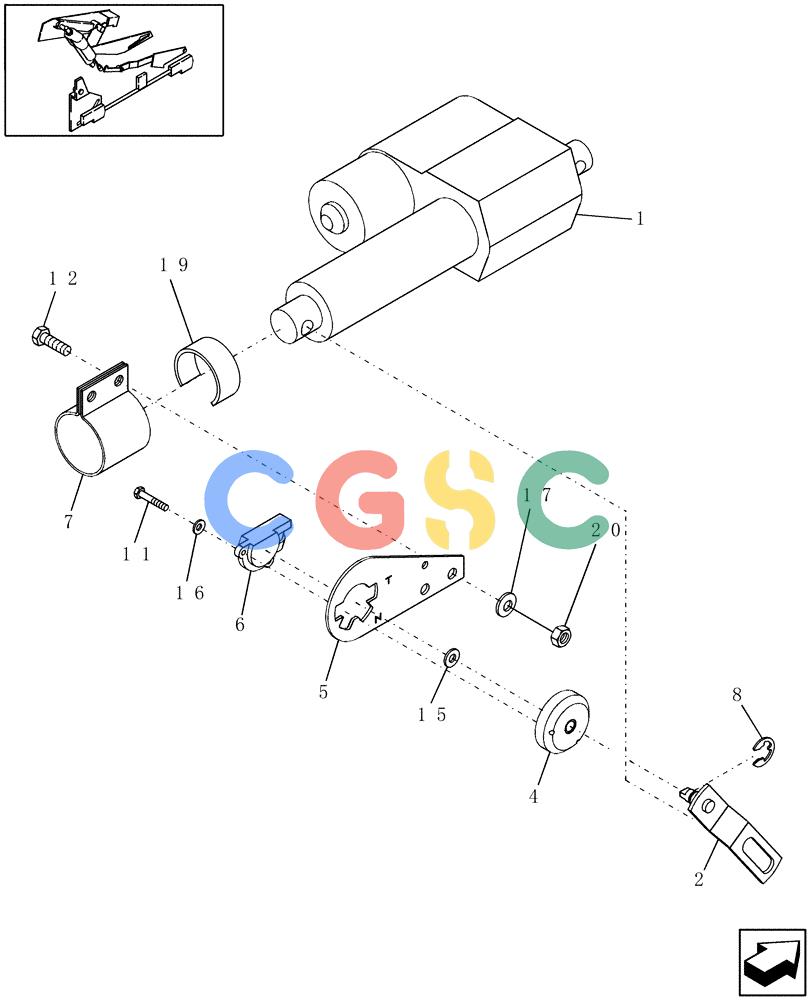

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86634125
|
[1] |
ELECTRIC MOTOR
|
NH
|
| 1. |
86634125R
|
[1] |
REMAN-ELECTRIC ACTUATOR
|
NH
Reman for New PN 86634125
|
| 1. |
86634125C
|
[1] |
CORE-ELECTRIC ACTUATOR
|
NH
Return Number
|
| 2. |
84056960
|
[1] |
SUPPORT
|
PA
|
| 4. |
86643172
|
[1] |
ASSEMBLY
|
NH
& Bushing Superseded by part number: 87034842
|
| 5. |
86616587
|
[1] |
PLATE
|
NH
|
| 6. |
86977396
|
[1] |
POTENTIOMETER,3000 Ohm, 16 VDC
|
PA
|
| 7. |
84056957
|
[1] |
CLAMP
|
PA
|
| 8. |
86000439
|
[1] |
SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External
|
NH
|
| 11. |
614-4020
|
[2] |
BOLT,Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 412255
|
| 12. |
614-8020
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm
|
CAS
Superseded by part number: 120104
|
| 15. |
86613601
|
[1] |
WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk
|
NH
Urethane
|
| 16. |
493-41020
|
[2] |
LOCK WASHER,Ext Tooth, #10
|
CAS
Superseded by part number: 9672521
|
| 17. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 19. |
PL
|
[1] |
PROCURE LOCALLY
|
BAS
Shim, 1.5" x 4" x .010" Tk.
|
| 20. |
825-1408
|
[2] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
