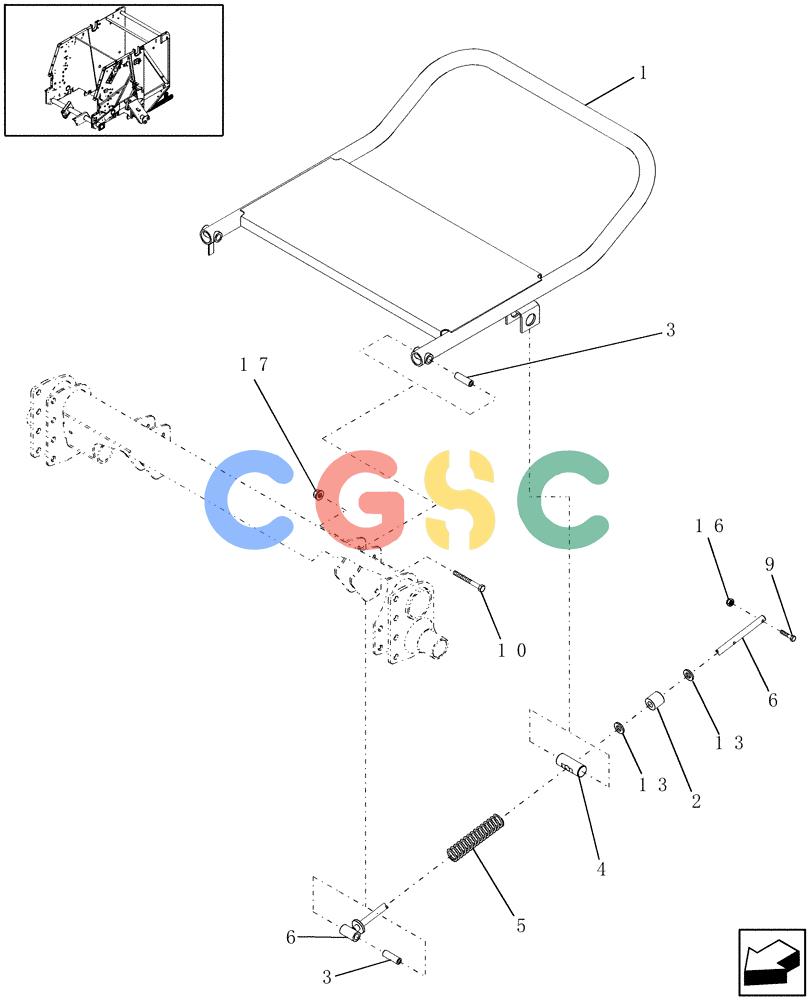

凯斯零件查询(RBX453) - CASE IH ROUND BALER (9/05-12/06) (16.10) - BALE EJECTOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87027503
|
[1] |
EJECTOR
|
PA
Bale
|
| 2. |
86562970
|
[2] |
BUSHING,19.3mm ID x 41.61mm OD x 40.1mm L
|
NH
Rubber
|
| 3. |
647765
|
[4] |
SPACER
|
NH
Superseded by part number: 87022950
|
| 4. |
86637296
|
[2] |
PIN
|
NH
Superseded by part number: 87028069
|
| 5. |
86588221
|
[2] |
SPRING
|
NH
Compression Superseded by part number: 87022949
|
| 6. |
86637308
|
[2] |
ROD
|
NH
Superseded by part number: 87028071
|
| 9. |
426-524
|
[2] |
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8
|
CAS
Superseded by part number: 86514369
|
| 10. |
9637417
|
[4] |
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5
|
NH
|
| 13. |
141781
|
[4] |
WASHER
|
NH
3/4"
|
| 16. |
231-4145
|
[2] |
NUT,5/16"-18, GB
|
CAS
Superseded by part number: 280736
|
| 17. |
86521607
|
[4] |
FLANGE NUT,Flg, 1/2"-13, G5
|
NH
Superseded by part number: 86544265
|
