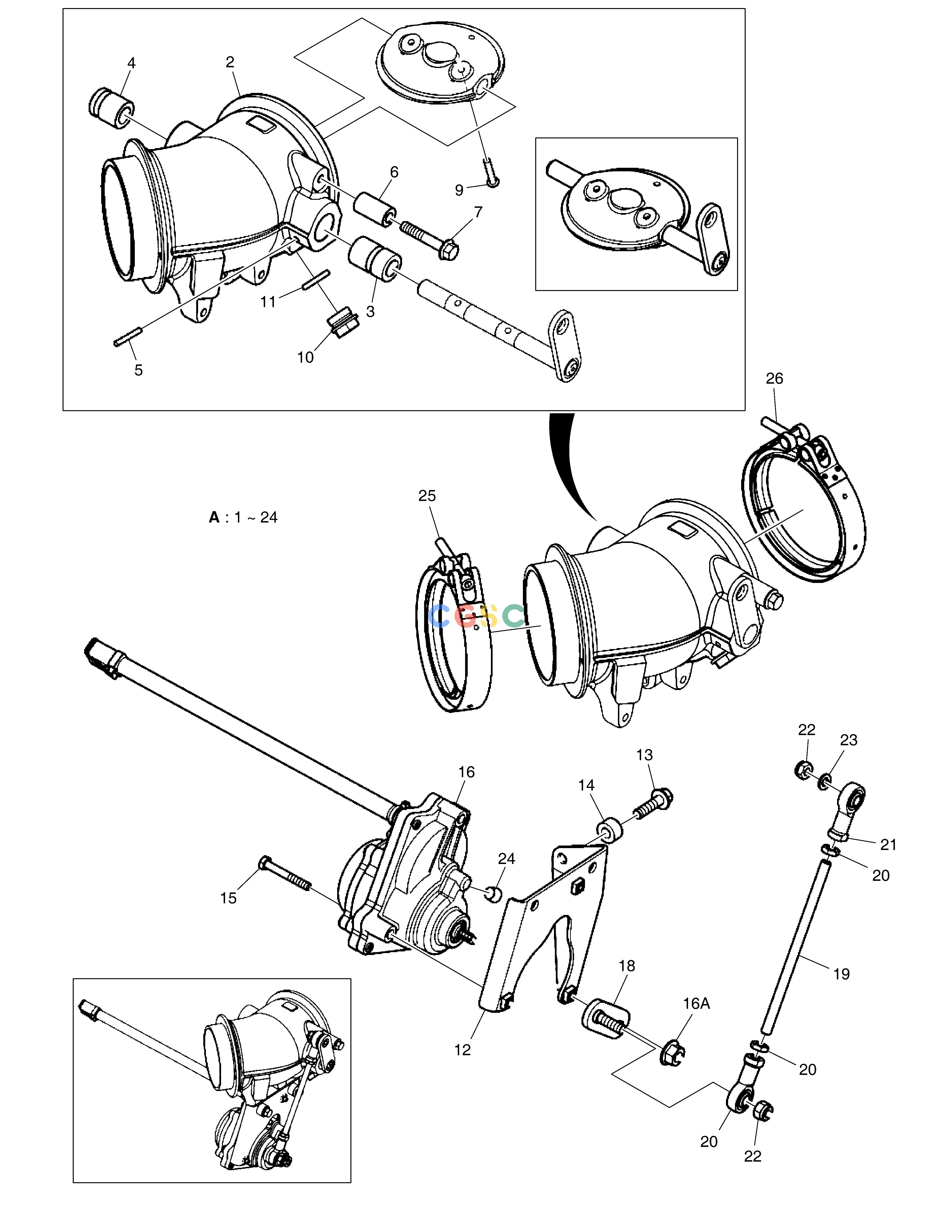

斗山零件查询EXHAUST BRAKE SYSTEM DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
MX351362
|
[1] |
BAGUE D'ARRET
|
|
| 11. |
401109-00141
|
[1] |
BAGUE D`ETANCHEITE
|
|
| 12. |
110411-00259
|
[1] |
SUPPORT
|
|
| 13. |
120705-00836
|
[3] |
VIS
|
|
| 14. |
110951-00685
|
[1] |
ENTRETOISE
|
|
| 15. |
120705-01069
|
[3] |
VIS
|
|
| 16. |
300701-00100
|
[1] |
ACTIONNEUR
|
|
| 16A. |
120311-00196
|
[1] |
ECROU
|
|
| 18. |
101539-00313
|
[1] |
ARTICULATION
|
|
| 19. |
130712-01558
|
[1] |
REMARQUES
|
|
| 2. |
NA00528
|
[1] |
CARTER
|
|
| 20. |
120312-00390
|
[2] |
ECROU
|
|
| 21. |
101539-00309
|
[2] |
ARTICULATION
|
|
| 22. |
120311-00197
|
[1] |
ECROU
|
|
| 23. |
120812-00119
|
[1] |
RONDELLE
|
|
| 24. |
430221-00589
|
[2] |
BOUCHON
|
|
| 25. |
120203-00596
|
[1] |
COLLIER
|
|
| 26. |
120203-00214
|
[1] |
COLLIER
|
|
| 3. |
131002-00460
|
[1] |
DOUILLE
|
|
| 4. |
MX451725
|
[1] |
AMPOULE
|
|
| 5. |
120501-03020
|
[2] |
REMARQUES
|
|
| 6. |
110949-00651
|
[1] |
BAGUE D`ECARTEMENT
|
|
| 7. |
120705-00733
|
[1] |
VIS
|
|
| 9. |
120501-02352
|
[2] |
REMARQUES
|
|
| A. |
420203-00484
|
[1] |
CHAPPEMENT
|
|
