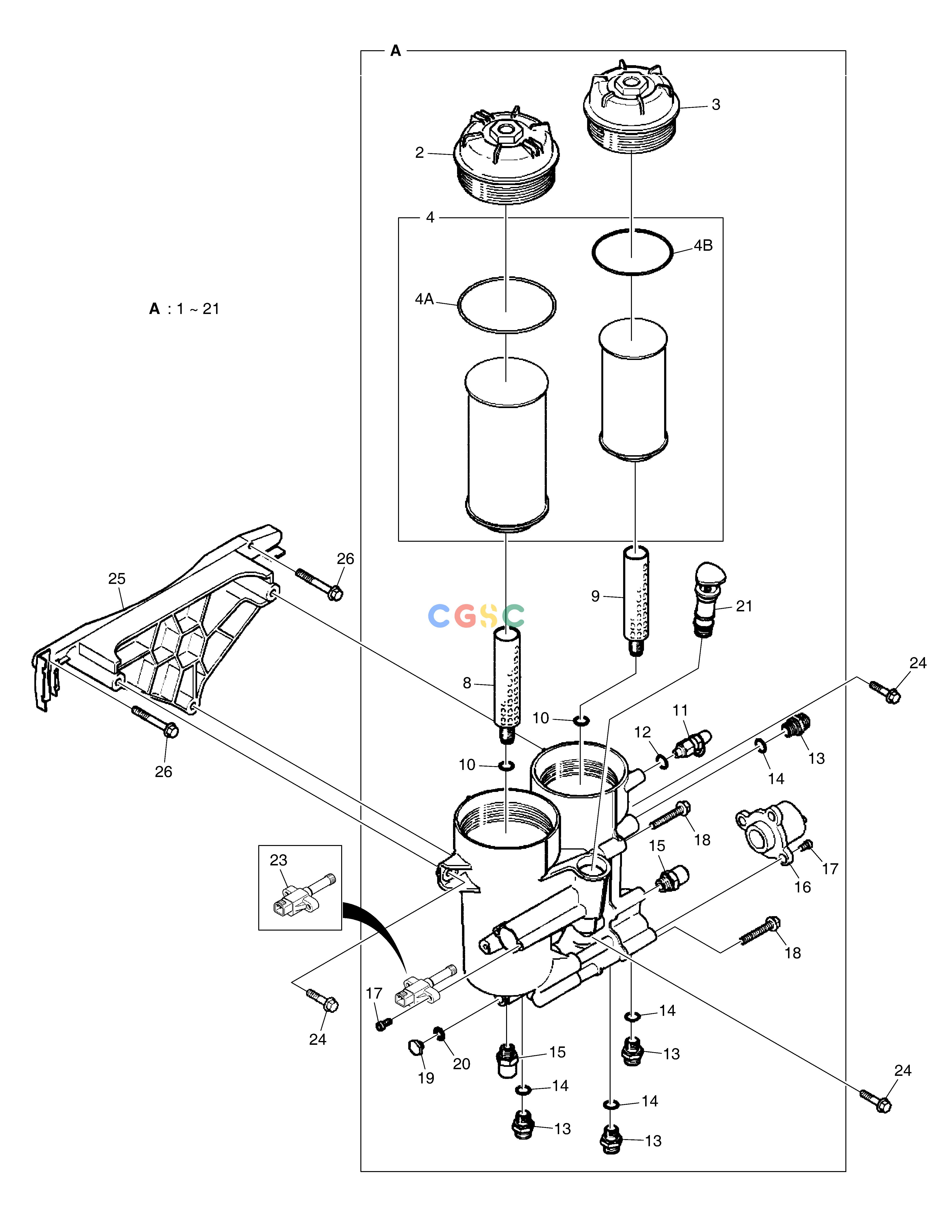

斗山零件查询FUEL FILTER DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
434 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
401002-00706
|
[2] |
|
|
| 11. |
101552-00187
|
[1] |
|
|
| 12. |
120808-00539
|
[1] |
RONDELLE
|
|
| 13. |
430208-00227
|
[4] |
CONNECTEUR
|
|
| 14. |
120808-00540
|
[4] |
RONDELLE
|
|
| 15. |
430208-00441
|
[2] |
|
|
| 16. |
110931-00713
|
[1] |
|
|
| 17. |
120705-00693
|
[5] |
|
|
| 18. |
120705-00734
|
[3] |
VIS
|
|
| 19. |
430221-00588
|
[1] |
|
|
| 2. |
110508-08911
|
[1] |
|
|
| 20. |
120808-00539
|
[1] |
RONDELLE
|
|
| 21. |
400916-00246
|
[1] |
|
|
| 23. |
440207-00373
|
[1] |
|
|
| 24. |
120705-00731
|
[3] |
VIS
|
|
| 25. |
120705-01066
|
[1] |
SUPPORT
|
|
| 26. |
120705-00688
|
[2] |
|
|
| 3. |
110508-11415
|
[1] |
|
|
| 4. |
400504-00158
|
[1] |
|
|
| 4A. |
401002-00704
|
[1] |
|
|
| 4B. |
401002-00709
|
[1] |
|
|
| 8. |
420210-00857
|
[1] |
|
|
| 9. |
420210-00856
|
[1] |
|
|
| A. |
400403-00273
|
[1] |
|
|
