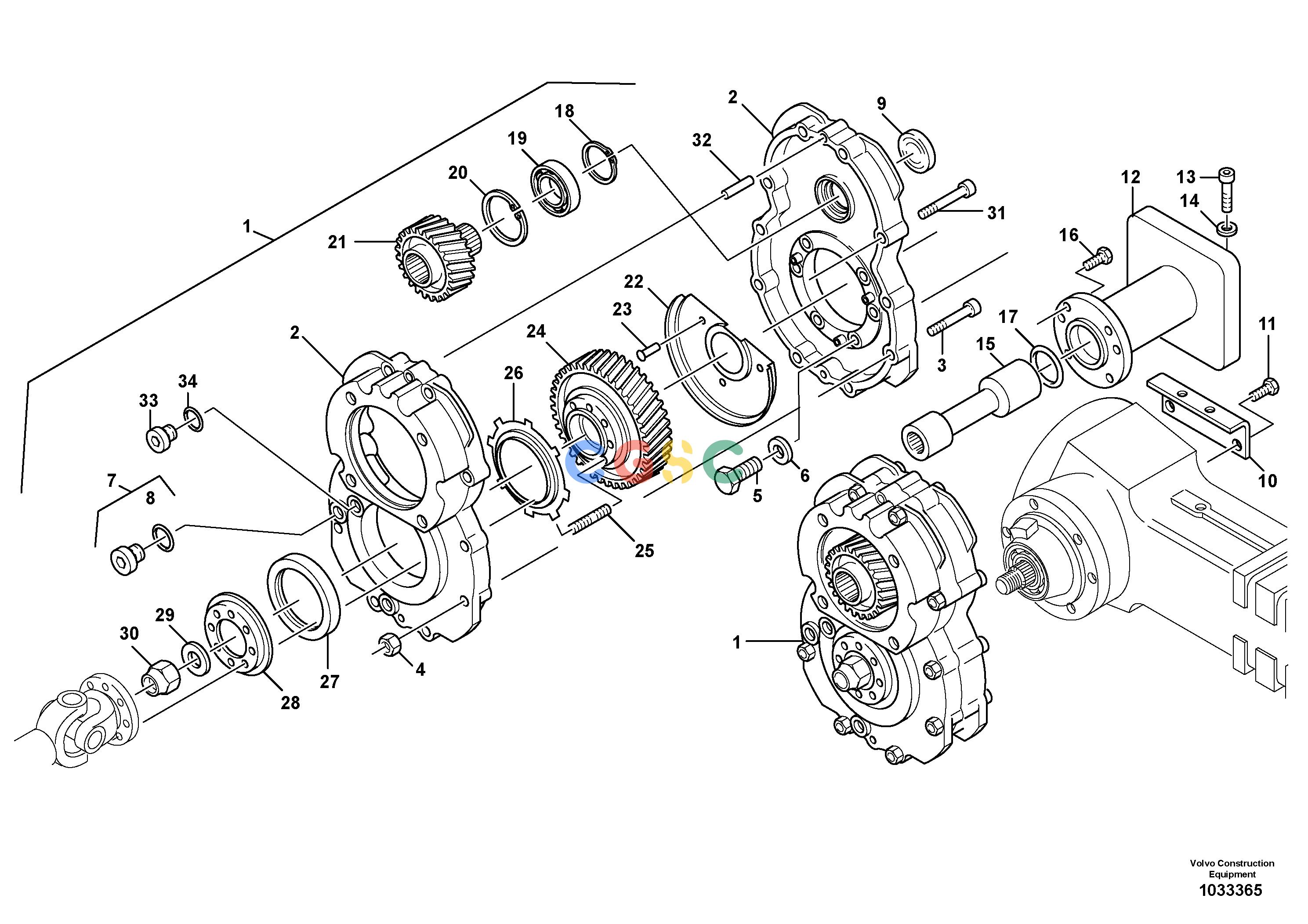

沃尔沃零件查询L40 Gearbox assyTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2906471
|
[1] |
Planetary transmission
|
|
| 8. |
VOE11705141
|
[1] |
O-ring
|
19x2
|
| 9. |
ZM2906477
|
|
Plug
|
|
| 10. |
ZM2906450
|
[1] |
Angle
|
|
| 11. |
ZM2906452
|
[2] |
Screw
|
M14x28
|
| 12. |
ZM2906449
|
[1] |
Flange
|
|
| 13. |
VOE11306209
|
[2] |
Screw
|
M12x25
|
| 14. |
VOE13947282
|
[2] |
Gasket
|
A12x18
|
| 15. |
ZM2907546
|
[1] |
Axle shaft
|
|
| 16. |
VOE997877
|
[6] |
Hex. socket screw
|
M12x35
|
| 17. |
ZM2907805
|
[1] |
O-ring
|
|
| 1. |
ZM2906473
|
|
Transmission
|
|
| 18. |
VOE914472
|
[1] |
Snap ring
|
50x2
|
| 19. |
ZM5227171
|
[1] |
Bearing
|
|
| 20. |
VOE914544
|
[1] |
Retaining ring
|
90x3
|
| 21. |
ZM2906479
|
|
Sprocket
|
|
| 21. |
ZM2907547
|
[1] |
Wheel
|
|
| 22. |
ZM2906481
|
[1] |
Plate
|
|
| 22. |
ZM2906481
|
|
Plate
|
|
| 23. |
ZM2286983
|
[3] |
Pin
|
4x15
|
| 24. |
ZM2908613
|
[1] |
Spur wheel
|
|
| 24. |
ZM2908613
|
|
Spur wheel
|
|
| 2. |
ZM2906444
|
[1] |
Housing
|
|
| 25. |
ZM8097523
|
[8] |
Stud
|
M10x22
|
| 26. |
ZM2906336
|
[1] |
Thrust Washer
|
|
| 27. |
ZM2906330
|
[1] |
Radial seal
|
|
| 28. |
ZM2906331
|
[1] |
Dust protection
|
|
| 29. |
VOE6213085
|
[1] |
Washer
|
|
| 30. |
VOE6213086
|
[1] |
Nut
|
BM27x1,5
|
| 31. |
ZM7096562
|
[5] |
Bolt
|
M12x120
|
| 32. |
VOE11991215
|
[2] |
Pin
|
8m 6x45
|
| 33. |
ZM7099428
|
[1] |
Screw plug
|
M18x1,5
|
| 34. |
VOE11706795
|
[1] |
O-ring
|
15x2
|
| 2. |
ZM2906475
|
|
Housing
|
|
| 3. |
ZM2907317
|
[5] |
Screw
|
M12x110
|
| 4. |
VOE979019
|
[10] |
Hexagon nut
|
M12
|
| 5. |
ZM7097049
|
[6] |
Screw
|
M14x45
|
| 6. |
ZM5231023
|
[6] |
Washer
|
|
| 7. |
ZM2906325
|
[2] |
Plug
|
M22x1,5
|
