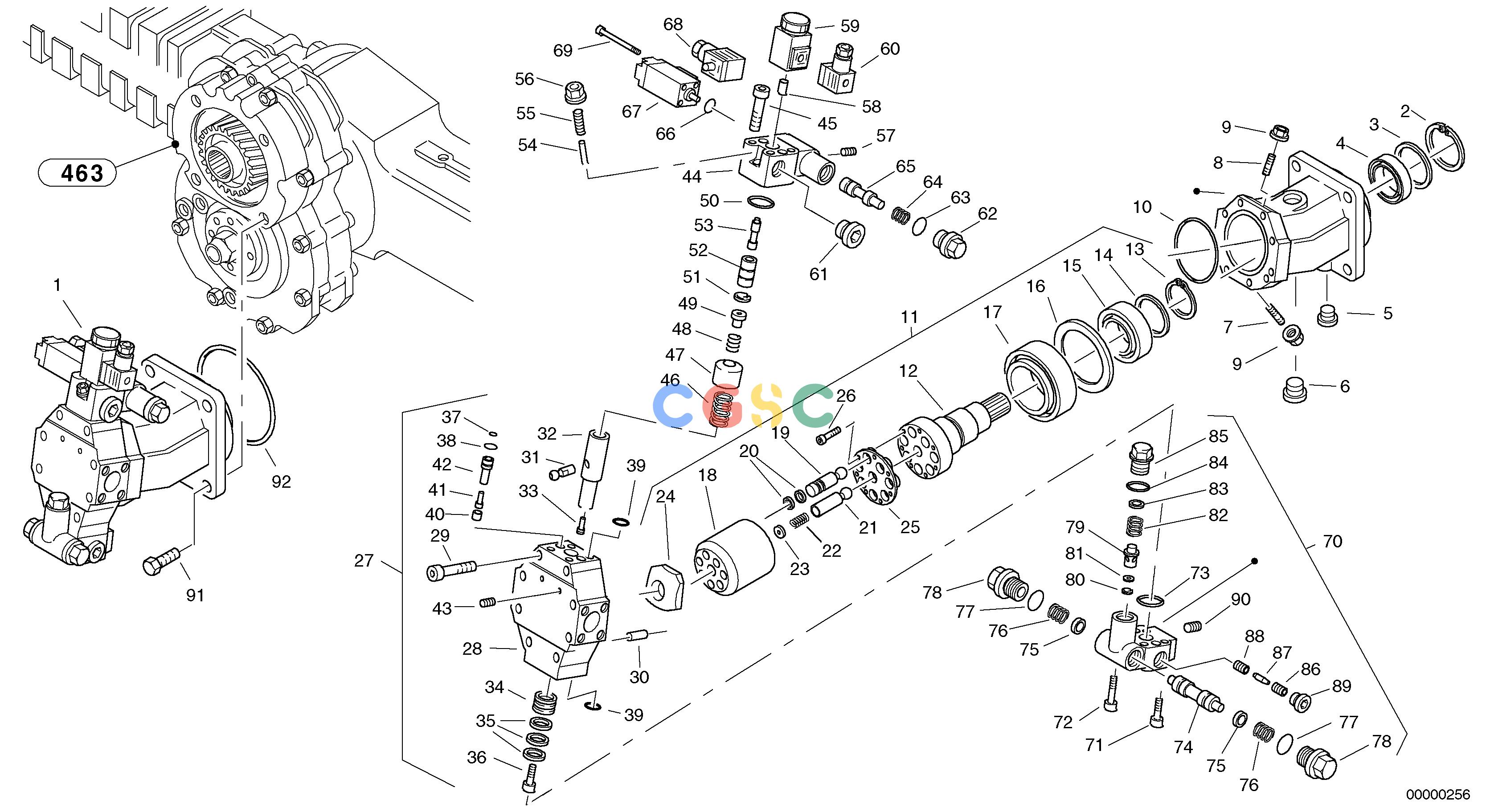

沃尔沃零件查询L40 Variable displacement motorTYPE 191, 192 SER NO - 10001920001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
129 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2814915
|
[1] |
Hydraulic motor
|
|
| 10. |
VOE11705810
|
[1] |
O-ring
|
190,09x3,35
|
| 83. |
ZM2903202
|
[REQ] |
Washer
|
7x13x0,5
|
| 83. |
ZM2905564
|
[REQ] |
Washer
|
7x13x1,0
|
| 84. |
VOE15106589
|
[1] |
O-ring
|
17,12x2,62
|
| 85. |
ZM2286663
|
[1] |
Screw
|
|
| 86. |
ZM2271600
|
[1] |
Screw
|
|
| 87. |
ZM2286657
|
[1] |
Pin
|
|
| 88. |
ZM2271590
|
[1] |
Screw
|
|
| 89. |
ZM2905553
|
[1] |
Screw plug
|
M14x1,5
|
| 90. |
ZM2270310
|
[4] |
Contact breaking plug
|
M6
|
| 91. |
ZM3401420
|
[4] |
Screw
|
M16x50
|
| 11. |
ZM2905560
|
[1] |
Gear
|
|
| 92. |
VOE983521
|
[1] |
O-ring
|
|
| 12. |
ZM2905569
|
[1] |
Shaft
|
|
| 13. |
ZM8094932
|
[1] |
Retaining ring
|
70x2,5
|
| 14. |
ZM2905575
|
[1] |
Support washer
|
3,15 mm
|
| 14. |
ZM2905576
|
[REQ] |
Support washer
|
3,20 mm
|
| 14. |
ZM2905577
|
[REQ] |
Support washer
|
3,25 mm
|
| 14. |
ZM2905578
|
[REQ] |
Support washer
|
3,30 mm
|
| 14. |
ZM2905579
|
[REQ] |
Disc
|
3,35 mm
|
| 14. |
ZM2905580
|
[REQ] |
Support washer
|
3,40 mm
|
| 2. |
VOE11701470
|
[1] |
Snap ring
|
80x2,5
|
| 14. |
ZM2905581
|
[REQ] |
Support washer
|
3,45 mm
|
| 14. |
ZM2905582
|
[REQ] |
Support washer
|
3,50 mm
|
| 15. |
ZM2905584
|
[1] |
Roller bearing
|
|
| 16. |
ZM2905574
|
[1] |
Spacer washer
|
6,30 mm
|
| 16. |
ZM2905573
|
[REQ] |
Disc
|
6,35 mm
|
| 16. |
ZM2905572
|
[REQ] |
Adjusting washer
|
6,40 mm
|
| 16. |
ZM2905571
|
[REQ] |
Spacer washer
|
6,45 mm
|
| 16. |
ZM2905570
|
[REQ] |
Spacer washer
|
6,50 mm
|
| 17. |
ZM2905583
|
[1] |
Roller bearing
|
|
| 18. |
ZM2905585
|
[1] |
Cylinder
|
|
| 3. |
VOE14211699
|
[1] |
Spacer
|
S63x80
|
| 19. |
ZM2905588
|
[7] |
Piston
|
|
| 20. |
ZM2905597
|
[14] |
Sealing ring
|
24,7x27,5x3,5
|
| 21. |
ZM2905587
|
[1] |
Center journal
|
|
| 22. |
ZM2905595
|
[1] |
Pressure spring
|
|
| 23. |
ZM2905589
|
[1] |
Tuning plate
|
4,50 mm
|
| 23. |
ZM2905590
|
[REQ] |
Tuning plate
|
4,60 mm
|
| 23. |
ZM2905591
|
[REQ] |
Tuning plate
|
4,70 mm
|
| 23. |
ZM2905592
|
[REQ] |
Tuning plate
|
4,80 mm
|
| 23. |
ZM2905593
|
[REQ] |
Tuning plate
|
4,90 mm
|
| 23. |
ZM2905594
|
[REQ] |
Tuning plate
|
5,00 mm
|
| 4. |
ZM2902137
|
[1] |
Seal
|
60x80x7
|
| 24. |
ZM2905586
|
[1] |
Control lens
|
|
| 25. |
ZM2905596
|
[1] |
Plate
|
|
| 26. |
ZM2905598
|
[7] |
Screw
|
M8x20
|
| 27. |
ZM2906770
|
[1] |
Tilting, cpl.
|
|
| 28. |
ZM2905600
|
[1] |
Connection plate
|
|
| 29. |
ZM7096321
|
[8] |
Screw
|
M16x45
|
| 30. |
ZM8099220
|
[2] |
Cylindric pin
|
12x24
|
| 31. |
ZM2291070
|
[1] |
Adjusting pin
|
|
| 32. |
SA8230-30050
|
[1] |
Piston
|
|
| 33. |
ZM2902981
|
[1] |
Screw nail
|
|
| 5. |
ZM2905611
|
[1] |
Screw plug
|
M22x1,5
|
| 34. |
ZM2906345
|
[1] |
Piston
|
|
| 35. |
ZM2903193
|
[3] |
Compression ring
|
32x2
|
| 36. |
SA8230-29900
|
[1] |
Screw
|
M14x1,5x25
|
| 37. |
VOE15030547
|
[2] |
O-ring
|
5,28x1,78
|
| 38. |
ZM2256850
|
[2] |
O-ring
|
9,25x1,78
|
| 39. |
VOE11708087
|
[6] |
O-ring
|
7,65x1,78
|
| 40. |
ZM2286643
|
[2] |
Bushing
|
|
| 41. |
ZM2286642
|
[2] |
Bolt
|
|
| 42. |
ZM2286641
|
[2] |
Valve guide
|
|
| 43. |
ZM2270310
|
[1] |
Contact breaking plug
|
M6
|
| 6. |
ZM2905614
|
[1] |
Screw plug
|
M26x1,5
|
| 44. |
ZM2905605
|
[1] |
Timing gear housing
|
|
| 45. |
ZM8097681
|
[4] |
Screw
|
M8x45
|
| 46. |
ZM2905608
|
[1] |
Compression spring
|
|
| 47. |
SA8230-29770
|
[1] |
Bushing
|
|
| 48. |
ZM2905550
|
[1] |
Compression spring
|
|
| 49. |
ZM2903857
|
[1] |
Spring disc
|
|
| 50. |
VOE15030476
|
[1] |
O-ring
|
39,34x2,62
|
| 51. |
ZM8094956
|
[1] |
Snap ring
|
16x1
|
| 52. |
ZM2291077
|
[1] |
Control sleeve
|
|
| 53. |
ZM2905247
|
[1] |
Piston
|
|
| 7. |
VOE15122590
|
[1] |
Pin
|
M12x50
|
| 54. |
ZM2286654
|
[1] |
Pin
|
4m6x24
|
| 55. |
ZM8096431
|
[1] |
Screw
|
M6x30
|
| 56. |
VOE14211724
|
[1] |
Nut
|
M6
|
| 57. |
ZM2161770
|
[5] |
Plug
|
M5
|
| 58. |
ZM2905552
|
[1] |
Bushing
|
|
| 59. |
ZM2905610
|
[1] |
Magnet, 24V
|
|
| 60. |
VOE15030501
|
[1] |
Socket
|
|
| 61. |
ZM2905553
|
[1] |
Screw plug
|
M14x1,5
|
| 62. |
ZM2286662
|
[1] |
Plug
|
|
| 63. |
VOE11702859
|
[1] |
O-ring
|
|
| 8. |
ZM2269280
|
[1] |
Screw nail
|
M12x80
|
| 64. |
ZM2902997
|
[1] |
Pressure spring
|
|
| 65. |
ZM2902996
|
[1] |
Slider
|
|
| 66. |
ZM2905554
|
[1] |
O-ring
|
|
| 67. |
VOE11715437
|
[1] |
Solenoid coil
|
|
| 68. |
VOE15030501
|
[1] |
Socket
|
|
| 69. |
ZM8096824
|
[4] |
Screw
|
|
| 70. |
ZM2906346
|
[1] |
Valve, cpl.
|
|
| 71. |
ZM7096477
|
[2] |
Screw
|
M12x30
|
| 72. |
VOE14371049
|
[2] |
Allen Hd Screw
|
M12x40
|
| 73. |
VOE982736
|
[1] |
O-ring
|
37,69x3,53
|
| 9. |
VOE14211726
|
[2] |
Lock nut
|
M12
|
| 74. |
ZM2905680
|
[1] |
Piston
|
|
| 75. |
ZM2286664
|
[2] |
Washer
|
|
| 76. |
ZM2906340
|
[2] |
Compression spring
|
|
| 77. |
VOE11702859
|
[2] |
O-ring
|
15,54x2,62
|
| 78. |
ZM2286662
|
[2] |
Plug
|
|
| 79. |
ZM2905559
|
[1] |
Piston
|
|
| 80. |
ZM2286667
|
[1] |
Lock ring
|
8x0,8
|
| 81. |
ZM2903205
|
[1] |
Washer
|
|
| 82. |
ZM2286666
|
[1] |
Spring
|
|
| 83. |
ZM2903201
|
[1] |
Washer
|
7x13x0,3
|
