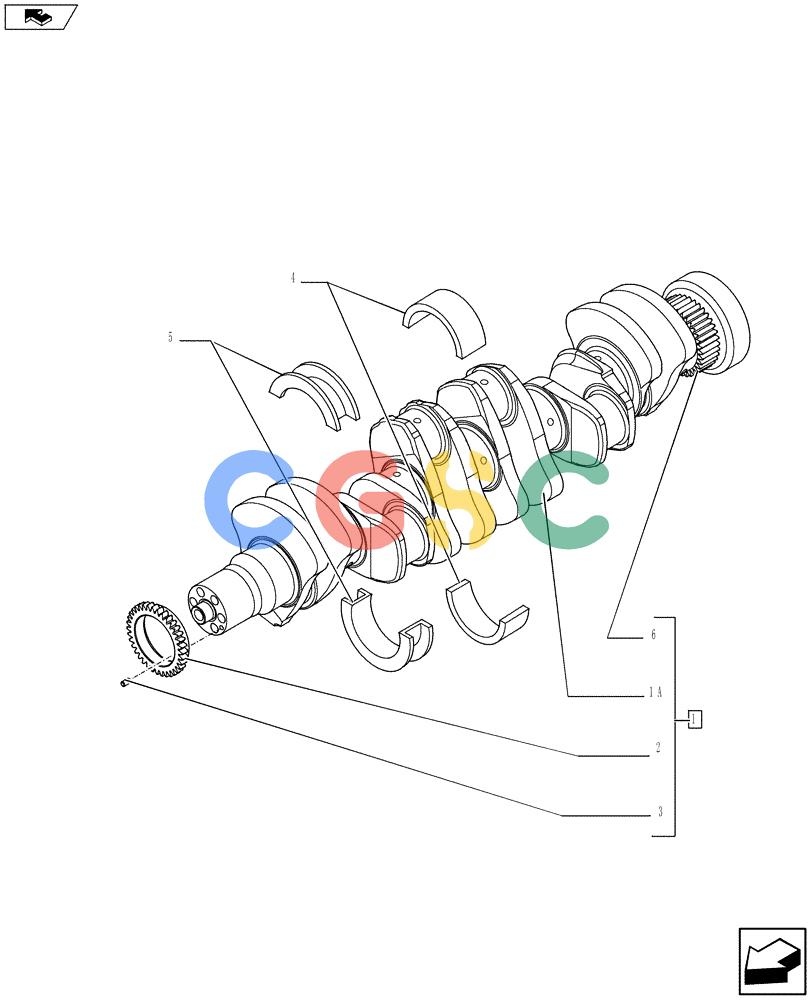

神钢零件查询(F4GE9684B J605) - ENGINE 5801385851 - 84369828 (1/13-) (10.103.01) - SHORT BLOCK - CRANKSHAFT (504384710 - 504057569) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852305 | [1] | CRANKSHAFT | TOR- ASSY Contains Ref.1A, 2, 3 Superseded by part number: 4899046, 504203872 |
| 1A. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 2. | 4893386 | [1] | GEAR,36 T | TOR |
| 3. | 4899046 | [1] | DOWEL,M6 x 9 L | TOR |
| 4. | 2992147 | [6] | SET OF STD MAIN BRGS | LECSTD. Superseded by part number: 2995787 |
| 4. | 2992148 | [6] | SET OF MAIN BRGS-.25 | LEC(-0.254) (-0.250) Superseded by part number: |
| 4. | 2992149 | [6] | SET OF MAIN BRGS - | LEC(-0.508) (-0.500) Superseded by part number: 2995789 |
| 5. | 2992153 | [1] | CAP | LEC(+0.000) (+0.000) Superseded by part number: 2995784 |
| 5. | 2992154 | [1] | SET OF THRUST WASHER | LEC(+0.254) (+0.250) Superseded by part number: 2995785 |
| 5. | 2992155 | [1] | SET OF THRUST WASHER | LEC(+0.508) (+0.500) Superseded by part number: 2995786 |
| 6. | 4892438 | [1] | GEAR,36T | TOR |
