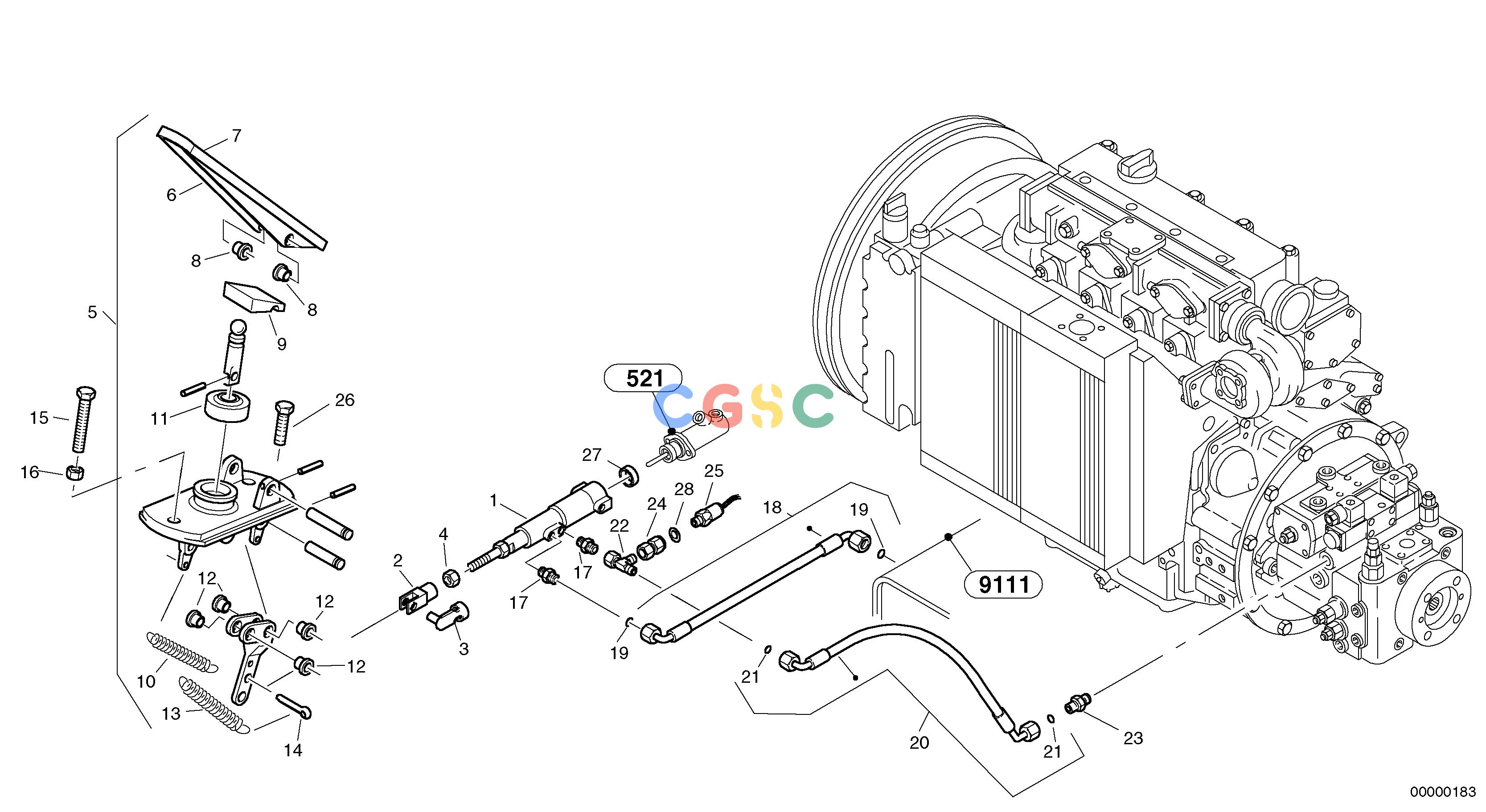

沃尔沃零件查询L40 Inch controlTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
439 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2812927
|
[1] |
Valve
|
|
| 9. |
ZM2233440
|
[1] |
Thrust plate
|
|
| 10. |
ZM2233510
|
[1] |
Wire spring
|
|
| 11. |
ZM5232709
|
[1] |
Cap
|
|
| 12. |
ZM2233490
|
[4] |
Bush
|
|
| 13. |
ZM2805380
|
[1] |
Tension spring
|
|
| 14. |
ZM7098981
|
[1] |
Cotter pin
|
4x25
|
| 15. |
ZM5126006
|
[1] |
Screw
|
M8x90, -1910017/-1920104
|
| 15. |
ZM7095522
|
[1] |
Screw
|
M8x70
1910018-/1920105-
|
| 16. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 17. |
ZM8091974
|
[2] |
Fitting
|
L10G1/4 B
|
| 2. |
VOE11305458
|
[1] |
Link fork
|
G12x24
|
| 18. |
ZM2812537
|
[1] |
Hose
|
|
| 19. |
ZM1089232
|
[2] |
O-ring
|
|
| 20. |
ZM2812045
|
[1] |
Hose
|
|
| 21. |
ZM1089232
|
[2] |
O-ring
|
|
| 22. |
ZM7092235
|
[1] |
Nipple
|
L10
|
| 23. |
ZM7091974
|
[1] |
Nipple
|
L10MB
|
| 24. |
ZM2805485
|
[1] |
Link
|
|
| 25. |
ZM2908009
|
[1] |
Pressure switch
|
|
| 26. |
VOE983244
|
[2] |
Hexagon screw
|
M8x30
|
| 27. |
ZM2813086
|
[1] |
Gasket
|
|
| 3. |
VOE11305459
|
[1] |
Yoke Bolt
|
12x24
|
| 28. |
VOE13947282
|
[1] |
Gasket
|
A12x18
|
| 4. |
ZM7098030
|
[1] |
Nut
|
M12
|
| 5. |
VOE11308633
|
[1] |
Pedal
|
-1910017/-1920104
|
| 5. |
VOE11308633
|
[1] |
Pedal
|
1910018-/1920105-
|
| 6. |
ZM2803648
|
[1] |
Brake pedal
|
|
| 7. |
VOE4860801
|
[1] |
Pedal
|
|
| 8. |
ZM5227452
|
[2] |
Bushing
|
|
