沃尔沃零件查询L40 Hand inch controlTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
666 次

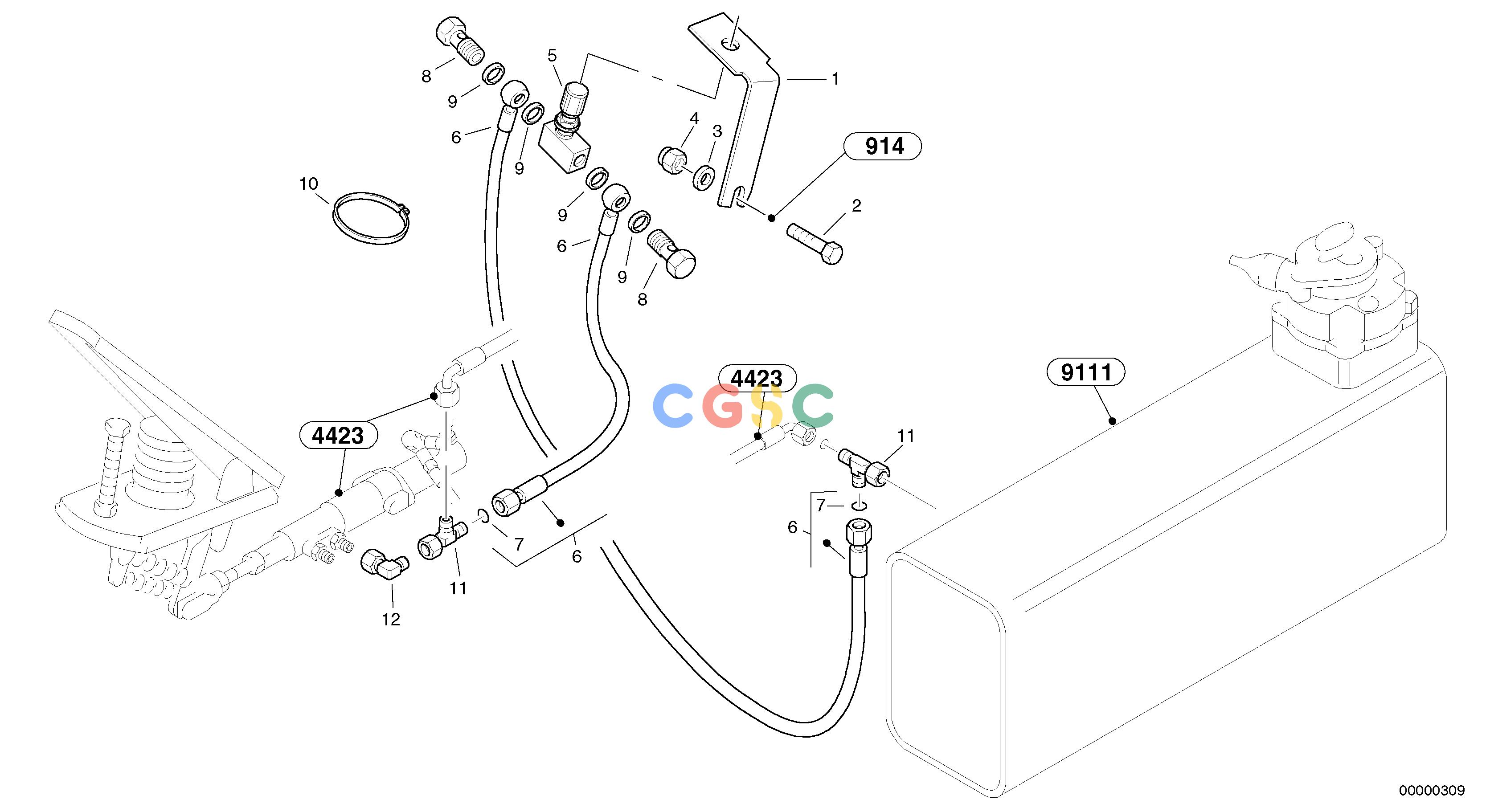

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813325
|
[1] |
Bracket
|
|
| 10. |
VOE943479
|
[1] |
Hose clamp
|
|
| 11. |
ZM7092235
|
[2] |
Nipple
|
L10
|
| 12. |
ZM7092347
|
[1] |
Angular fitting
|
L10
|
| 2. |
VOE14370276
|
[1] |
Screw
|
M8x60
|
| 3. |
VOE11305837
|
[1] |
Washer
|
B 8,4
|
| 4. |
ZM8098397
|
[1] |
Nut
|
M8
|
| 5. |
ZM2805547
|
[1] |
Valve
|
|
| 6. |
ZM2813439
|
[2] |
Hose
|
|
| 7. |
ZM1089232
|
[2] |
O-ring
|
|
| 8. |
ZM2810337
|
[2] |
Hollow screw
|
|
| 9. |
ZM7099503
|
[4] |
Seal
|
A14x18
|
