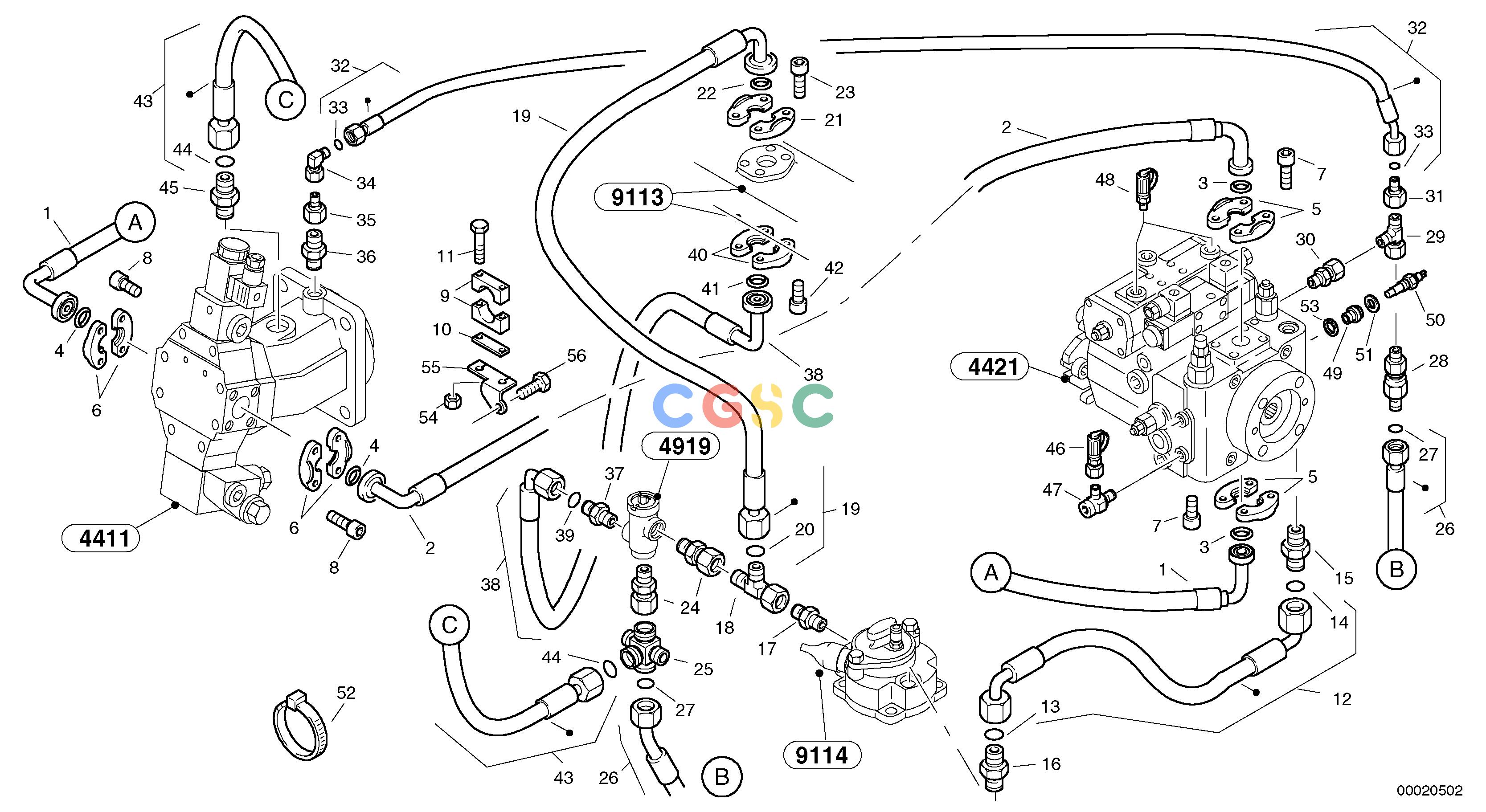

沃尔沃零件查询L40 Lines - hydrostatic driveTYPE 191, 192 SER NO - 10001920001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2812035
|
[1] |
Hose
|
|
| 10. |
ZM2811421
|
[2] |
Top plate
|
|
| 11. |
ZM8094812
|
[4] |
Screw
|
M10x90
|
| 12. |
ZM2812542
|
[1] |
Hose
|
|
| 13. |
ZM7099975
|
[1] |
O-ring
|
25x2,5
|
| 14. |
ZM8099962
|
[1] |
O-ring
|
32x2,5
|
| 15. |
ZM8091971
|
[1] |
Nipple
|
L35MB
|
| 16. |
ZM8091972
|
[1] |
Nipple
|
L28MB
|
| 17. |
ZM7091972
|
[1] |
Nipple
|
L22MB
|
| 18. |
VOE964059
|
[1] |
T-nipple
|
L22
|
| 19. |
ZM2812545
|
[1] |
Hose
|
|
| 2. |
ZM2812034
|
[1] |
Hose
|
|
| 20. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 21. |
ZM1032901
|
[2] |
SAE Flange half
|
|
| 22. |
ZM2123880
|
[1] |
O-ring
|
32,9x3,5
|
| 23. |
VOE11305614
|
[4] |
Allen screw
|
M10x30
|
| 24. |
VOE11305373
|
[2] |
Fitting
|
|
| 25. |
ZM2812483
|
[1] |
Distributor
|
|
| 26. |
ZM2812543
|
[1] |
Hose
|
|
| 27. |
ZM2259053
|
[2] |
O-ring
|
19x2,5
|
| 28. |
VOE11306921
|
[1] |
Non-return valve
|
|
| 29. |
VOE964059
|
[1] |
T-nipple
|
L22
|
| 3. |
ZM2123880
|
[2] |
O-ring
|
32,9x3,5
|
| 30. |
VOE11305373
|
[1] |
Fitting
|
|
| 31. |
VOE11306920
|
[1] |
Fitting
|
|
| 32. |
ZM2814821
|
[1] |
Hose
|
|
| 33. |
ZM1089232
|
[2] |
O-ring
|
|
| 34. |
VOE946390
|
[1] |
Elbow nipple
|
L18
|
| 35. |
VOE11306619
|
[1] |
Fitting
|
|
| 36. |
VOE11306284
|
[1] |
Fitting
|
L18MB
|
| 37. |
ZM7091972
|
[1] |
Nipple
|
L22MB
|
| 38. |
ZM2812544
|
[1] |
Hose
|
|
| 39. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 4. |
VOE993326
|
[2] |
O-ring
|
37,7x3,5
|
| 40. |
ZM1032901
|
[2] |
SAE Flange half
|
|
| 41. |
ZM2123880
|
[1] |
O-ring
|
32,9x3,5
|
| 42. |
VOE11305614
|
[4] |
Allen screw
|
M10x30
|
| 43. |
ZM2804182
|
[1] |
Hose
|
|
| 44. |
ZM2259053
|
[2] |
O-ring
|
19x2,5
|
| 45. |
ZM7091972
|
[1] |
Nipple
|
L22MB
|
| 46. |
ZM2807420
|
[2] |
Testing sleeve
|
|
| 47. |
VOE11306496
|
[2] |
Fitting
|
|
| 48. |
ZM2807422
|
[2] |
Testing sleeve
|
|
| 49. |
ZM2813125
|
[1] |
Reducing
|
|
| 5. |
VOE14048189
|
[4] |
Flange half
|
|
| 50. |
VOE11305367
|
[1] |
Temperature sensor
|
|
| 51. |
ZM7099503
|
[3] |
Seal
|
A14x18
|
| 52. |
ZM2809866
|
[5] |
Cable tie
|
|
| 53. |
ZM2813088
|
[1] |
Sealing ring
|
|
| 54. |
ZM7098002
|
[2] |
Nut
|
M10
|
| 55. |
ZM2815868
|
[1] |
Holder
|
|
| 56. |
ZM7097048
|
[1] |
Screw
|
|
| 6. |
VOE14236931
|
[4] |
Flange half
|
|
| 7. |
VOE14371049
|
[8] |
Allen Hd Screw
|
M12x40
|
| 8. |
VOE984095
|
[8] |
Hex. socket screw
|
M14x40
|
| 9. |
ZM2811420
|
[2] |
Clamp half pair
|
|
