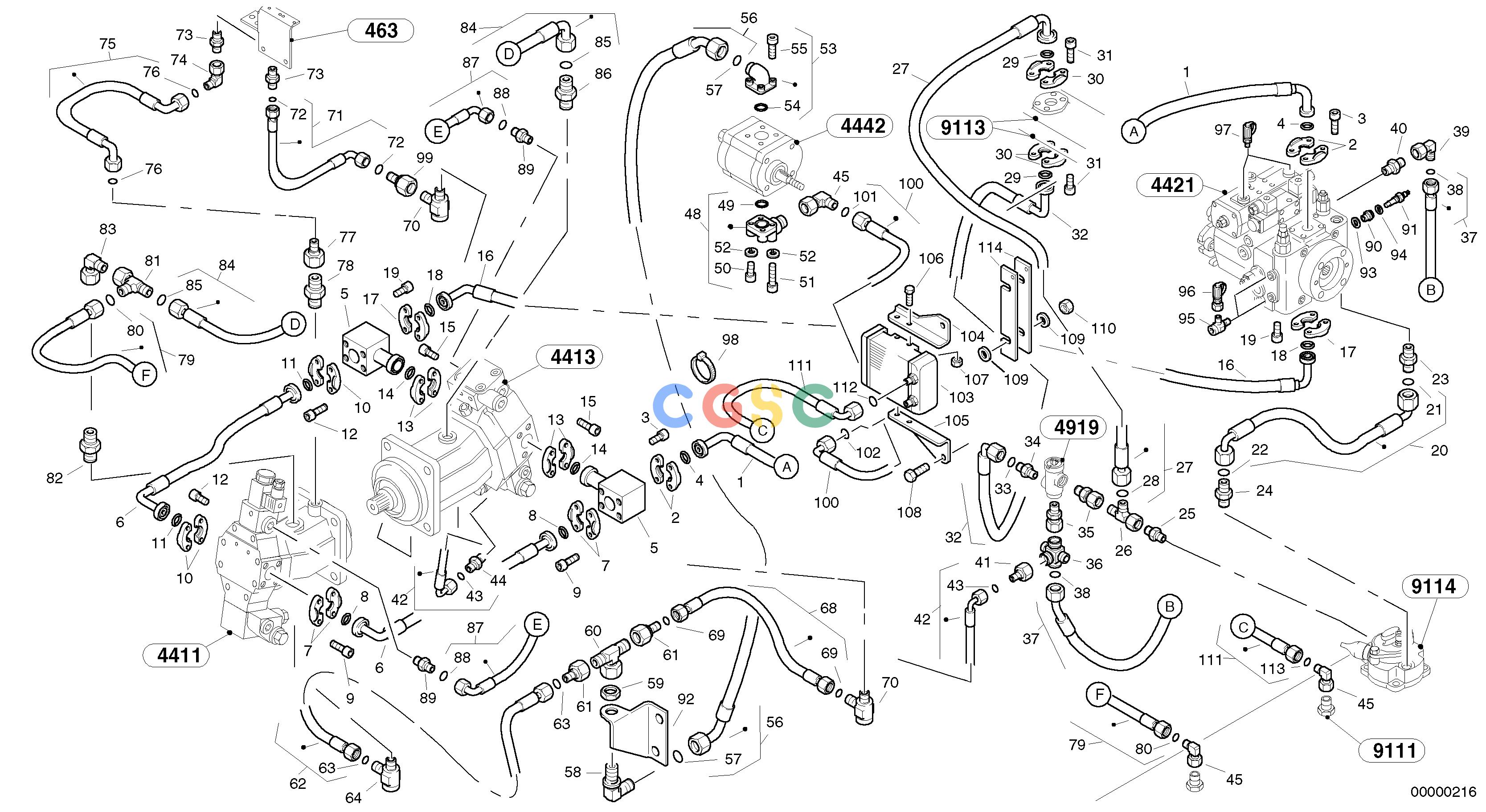

沃尔沃零件查询L40 Lines - hydrostatic driveTYPE 191, 192 SER NO - 10001910001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 99. |
VOE11305311
|
[1] |
Fitting
|
|
| 100. |
ZM2813355
|
[1] |
Hose
|
SB 4-001
|
| 101. |
ZM2259050
|
[1] |
O-ring
|
13x2
|
| 102. |
ZM2259052
|
[1] |
O-ring
|
9,5x2
|
| 103. |
ZM2810930
|
[1] |
Oil cooler
|
|
| 104. |
ZM2813672
|
[1] |
Bracket
|
|
| 105. |
ZM2813673
|
[1] |
Bracket
|
|
| 106. |
VOE13946544
|
[4] |
Screw
|
M6x16
|
| 107. |
ZM7098000
|
[4] |
Nut
|
M6
|
| 108. |
VOE983251
|
[2] |
Hexagon screw
|
M10x25
|
| 5. |
ZM2805766
|
[2] |
Distributor
|
|
| 109. |
VOE930842
|
[2] |
Plain washer
|
10,5
|
| 110. |
VOE983304
|
[2] |
Hexagon nut
|
M10
|
| 111. |
ZM2813354
|
[1] |
Hose
|
|
| 112. |
ZM2259052
|
[1] |
O-ring
|
9,5x2
|
| 113. |
ZM2259050
|
[1] |
O-ring
|
13x2
|
| 114. |
ZM2815744
|
[2] |
Reinf Plate
|
1910123-
|
| 6. |
ZM2812039
|
[2] |
Hose
|
|
| 7. |
VOE14048189
|
[4] |
Flange half
|
|
| 8. |
ZM2123880
|
[2] |
O-ring
|
32,9x3,5
|
| 9. |
VOE14371049
|
[8] |
Allen Hd Screw
|
M12x40
|
| 10. |
VOE14048189
|
[4] |
Flange half
|
|
| 11. |
ZM2123880
|
[2] |
O-ring
|
32,9x3,5
|
| 12. |
VOE14371049
|
[8] |
Allen Hd Screw
|
M12x40
|
| 13. |
VOE14048189
|
[4] |
Flange half
|
|
| 14. |
ZM2123880
|
[2] |
O-ring
|
32,9x3,5
|
| 15. |
VOE978933
|
[8] |
Hexagon screw
|
M12x40
|
| 16. |
ZM2812036
|
[1] |
Hose
|
|
| 17. |
VOE14048189
|
[4] |
Flange half
|
|
| 18. |
ZM2123880
|
[2] |
O-ring
|
32,9x3,5
|
| 19. |
VOE14371049
|
[8] |
Allen Hd Screw
|
M12x40
|
| 20. |
ZM2812542
|
[1] |
Hose
|
|
| 1. |
ZM2812038
|
[1] |
Hose
|
|
| 21. |
ZM8099962
|
[1] |
O-ring
|
32x2,5
|
| 22. |
ZM7099975
|
[1] |
O-ring
|
25x2,5
|
| 23. |
ZM8091971
|
[1] |
Nipple
|
L35MB
|
| 24. |
ZM8091972
|
[1] |
Nipple
|
L28MB
|
| 25. |
ZM7091972
|
[1] |
Nipple
|
L22MB
|
| 26. |
VOE964059
|
[1] |
T-nipple
|
L22
|
| 27. |
ZM2812545
|
[1] |
Hose
|
|
| 28. |
ZM2259053
|
[2] |
O-ring
|
19x2,5
|
| 29. |
ZM2123880
|
[1] |
O-ring
|
32,9x3,5
|
| 30. |
ZM1032901
|
[4] |
SAE Flange half
|
|
| 2. |
VOE14048189
|
[4] |
Flange half
|
|
| 32. |
ZM2812544
|
[1] |
Hose
|
|
| 33. |
ZM2259053
|
[1] |
O-ring
|
19x2,5
|
| 34. |
ZM7091972
|
[1] |
Nipple
|
L22MB
|
| 35. |
VOE11305373
|
[2] |
Fitting
|
|
| 36. |
ZM2812483
|
[1] |
Distributor
|
|
| 37. |
ZM2812543
|
[1] |
Hose
|
|
| 38. |
ZM2259053
|
[2] |
O-ring
|
19x2,5
|
| 39. |
VOE944258
|
[1] |
Elbow nipple
|
L22
|
| 40. |
ZM7091972
|
[2] |
Nipple
|
L22MB
|
| 41. |
VOE11306920
|
[1] |
Fitting
|
|
| 42. |
ZM2800252
|
[1] |
Hose
|
|
| 43. |
ZM1089232
|
[2] |
O-ring
|
|
| 44. |
ZM7091974
|
[1] |
Nipple
|
L10MB
|
| 45. |
ZM8092741
|
[3] |
Angular fitting
|
L15
|
| 48. |
VOE11305366
|
[1] |
Fitting
|
|
| 49. |
ZM2030670
|
[1] |
O-ring
|
|
| 50. |
ZM7096556
|
[2] |
Screw
|
M6x22
|
| 51. |
ZM7096552
|
[2] |
Screw
|
M6x35
|
| 52. |
ZM7098300
|
[4] |
Spring ring
|
6
|
| 53. |
VOE11305782
|
[1] |
Fitting
|
|
| 54. |
ZM2030671
|
[1] |
O-ring
|
|
| 55. |
ZM7096556
|
[4] |
Screw
|
M6x22
|
| 56. |
ZM2812550
|
[1] |
Hose
|
|
| 57. |
ZM2259053
|
[2] |
O-ring
|
19x2,5
|
| 58. |
ZM7091530
|
[1] |
Bulkhead fitting W
|
L22
|
| 59. |
VOE957022
|
[2] |
Hexagon nut
|
M30x2
|
| 60. |
ZM7092203
|
[1] |
T-nipple
|
L22
|
| 61. |
VOE11306500
|
[2] |
Nipple
|
|
| 63. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 64. |
VOE11306947
|
[1] |
Nipple
|
|
| 3. |
VOE14371049
|
[8] |
Allen Hd Screw
|
M12x40
|
| 68. |
VOE11305089
|
[1] |
Hose assembly
|
|
| 69. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 70. |
VOE11306947
|
[2] |
Nipple
|
|
| 71. |
VOE11305386
|
[1] |
Hose assembly
|
|
| 72. |
ZM1089232
|
[2] |
O-ring
|
|
| 73. |
ZM7091974
|
[2] |
Nipple
|
L10MB
|
| 75. |
ZM2800253
|
[1] |
Hose
|
|
| 76. |
ZM1089232
|
[2] |
O-ring
|
|
| 77. |
VOE11305311
|
[1] |
Fitting
|
|
| 78. |
VOE11306284
|
[1] |
Fitting
|
L18MB
|
| 4. |
ZM2123880
|
[2] |
O-ring
|
32,9x3,5
|
| 79. |
VOE11305089
|
[1] |
Hose assembly
|
|
| 80. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 81. |
VOE944260
|
[1] |
T-nipple
|
L15
|
| 82. |
ZM7091971
|
[1] |
Nipple
|
L15
|
| 83. |
ZM8092741
|
[1] |
Angular fitting
|
L15
|
| 84. |
VOE11305401
|
[1] |
Hose assembly
|
2000 mm
|
| 85. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 86. |
ZM7091971
|
[1] |
Nipple
|
L15
|
| 87. |
ZM2812551
|
[1] |
Hose
|
|
| 88. |
ZM1089232
|
[2] |
O-ring
|
|
| 89. |
VOE11306949
|
[2] |
Nipple
|
S8MB, SB 4-001
|
| 90. |
ZM2813125
|
[1] |
Reducing
|
|
| 91. |
VOE11305367
|
[1] |
Temperature sensor
|
|
| 92. |
ZM2812867
|
[1] |
Holder
|
|
| 93. |
ZM2813088
|
[1] |
Sealing ring
|
|
| 94. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 95. |
VOE11306496
|
[2] |
Fitting
|
|
| 96. |
ZM2807420
|
[2] |
Testing sleeve
|
|
| 97. |
ZM2807422
|
[2] |
Testing sleeve
|
|
| 98. |
ZM2809866
|
[32] |
Cable tie
|
|
