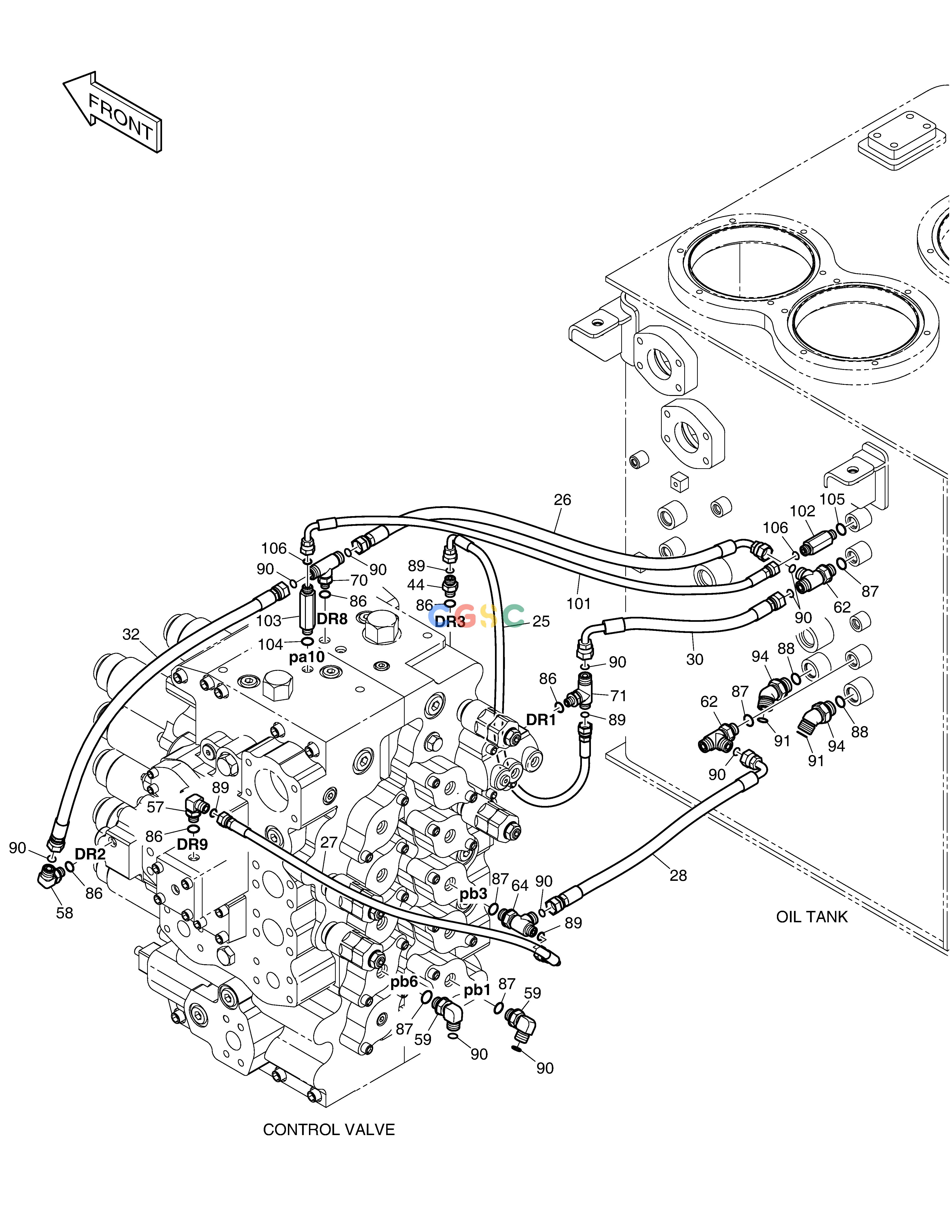

斗山零件查询PILOT PIPING(5) DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
546 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08502
|
[-] |
|
|
| 101. |
DS2143059
|
[1] |
|
|
| 102. |
DS2232171
|
[1] |
|
|
| 103. |
DS2232198
|
[1] |
|
|
| 104. |
S8000111
|
[1] |
O-RING
|
|
| 105. |
S8000141
|
[1] |
O-RING
|
|
| 106. |
S8030041
|
[2] |
O-RING
|
|
| 25. |
DS2143014
|
[1] |
|
|
| 26. |
DS2143040
|
[1] |
|
|
| 27. |
DS2143046
|
[1] |
|
|
| 28. |
DS2143047
|
[1] |
|
|
| 30. |
DS2143053
|
[1] |
|
|
| 32. |
DS2144021
|
[1] |
|
|
| 44. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 57. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 58. |
2181-2815D5
|
[1] |
ELBOW
|
|
| 59. |
2181-2815D6
|
[2] |
ELBOW
|
|
| 62. |
181-00121D2
|
[5] |
TEE
|
|
| 64. |
181-00121D5
|
[1] |
TEE
|
|
| 70. |
DS2418012
|
[1] |
|
|
| 71. |
DS2418017
|
[1] |
|
|
| 86. |
S8000111
|
[5] |
O-RING
|
|
| 87. |
S8000141
|
[5] |
O-RING
|
|
| 88. |
S8000181
|
[2] |
O-RING
|
|
| 89. |
S8030041
|
[4] |
O-RING
|
|
| 90. |
S8030061
|
[10] |
O-RING
|
|
| 91. |
S8030081
|
[2] |
O-RING
|
|
| 94. |
2181-2816D4
|
[2] |
ELBOW
|
|
