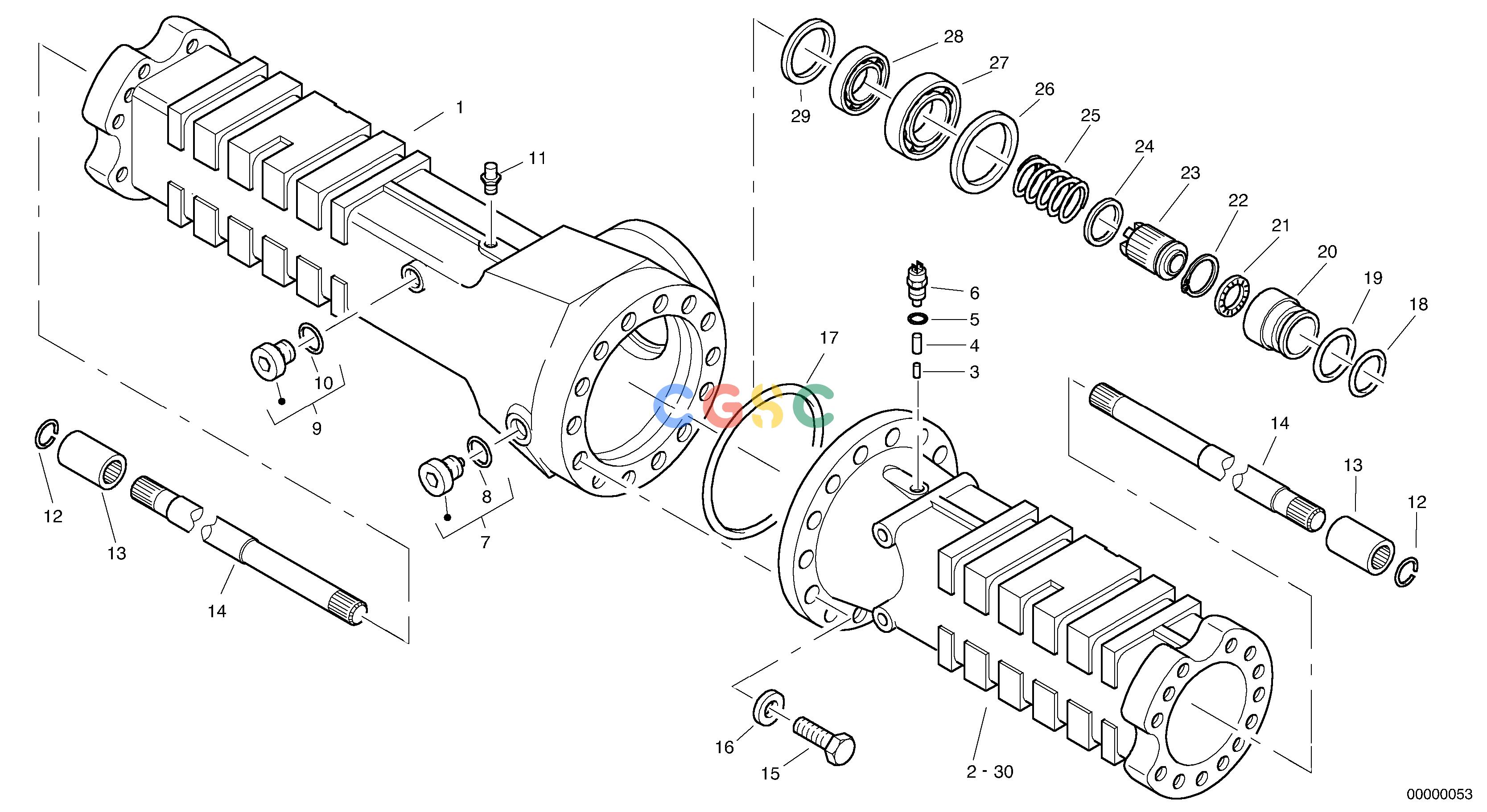

沃尔沃零件查询L40 Housing - front axleTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
489 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2906380
|
[1] |
Housing
|
|
| 3. |
ZM2906407
|
[REQ] |
Contact Pin
|
A = 15,6
|
| 3. |
ZM2906408
|
[REQ] |
Contact Pin
|
A = 16,0
|
| 3. |
ZM2906413
|
[REQ] |
Sliding Block
|
A = 16,5
|
| 3. |
ZM2906414
|
[REQ] |
Sliding Block
|
A = 17,0
|
| 3. |
ZM2906415
|
[REQ] |
Sliding Block
|
A = 17,5
|
| 4. |
ZM2906403
|
[1] |
Contact Pin
|
|
| 5. |
VOE11706795
|
[1] |
O-ring
|
15x2
|
| 6. |
ZM2282449
|
[1] |
Switch
|
|
| 7. |
VOE11705054
|
[1] |
Plug
|
|
| 8. |
VOE8550769
|
[1] |
O-ring
|
33x2
|
| 2. |
ZM2906381
|
[1] |
Housing
|
|
| 9. |
VOE6213130
|
[1] |
Plug
|
|
| 10. |
VOE8550769
|
[1] |
O-ring
|
33x2
|
| 11. |
VOE4881469
|
[1] |
Bleeder nipple
|
|
| 12. |
VOE11705878
|
[2] |
Snap ring
|
32x1,2
|
| 13. |
VOE11705877
|
[2] |
Sleeve
|
|
| 14. |
ZM2906400
|
[2] |
Shaft
|
|
| 15. |
VOE11704969
|
[31] |
Screw
|
M18x60
|
| 16. |
ZM2045660
|
[16] |
Washer
|
|
| 17. |
VOE6213127
|
[1] |
O-ring
|
203x3
|
| 18. |
VOE11715027
|
[1] |
Sealing ring
|
72,40x5,33
|
| 3. |
ZM2906409
|
[1] |
Sliding stone
|
A = 12,0
|
| 19. |
VOE11715028
|
[1] |
Sealing ring
|
78,75x5,33
|
| 20. |
ZM2290839
|
[1] |
Piston
|
|
| 21. |
ZM2287796
|
[1] |
Needle rim
|
|
| 22. |
ZM2907324
|
[1] |
Ring
|
62x2
|
| 23. |
ZM2908345
|
[1] |
Slider
|
|
| 24. |
ZM2906418
|
[1] |
Washer
|
|
| 25. |
VOE11715029
|
[1] |
Compression spring
|
|
| 26. |
ZM2906395
|
[1] |
Washer
|
0,10 mm
|
| 26. |
ZM2906394
|
[REQ] |
Washer
|
0,20 mm
|
| 26. |
ZM2906393
|
[REQ] |
Washer
|
0,30 mm
|
| 3. |
ZM2906411
|
[REQ] |
Sliding stone
|
A = 12,5
|
| 26. |
ZM2906392
|
[REQ] |
Washer
|
0,85 mm
|
| 26. |
ZM2906389
|
[REQ] |
Washer
|
0,90 mm
|
| 26. |
ZM2906390
|
[REQ] |
Washer
|
0,95 mm
|
| 26. |
ZM2906389
|
[REQ] |
Washer
|
1,00 mm
|
| 26. |
ZM2906389
|
[REQ] |
Washer
|
1,05 mm
|
| 26. |
ZM2906386
|
[REQ] |
Washer
|
1,10 mm
|
| 26. |
ZM2906386
|
[REQ] |
Washer
|
1,15 mm
|
| 26. |
ZM2906385
|
[REQ] |
Washer
|
1,20 mm
|
| 26. |
ZM2906383
|
[REQ] |
Washer
|
1,50 mm
|
| 26. |
ZM2906384
|
[REQ] |
Washer
|
1,80 mm
|
| 3. |
ZM2906411
|
[REQ] |
Sliding stone
|
A = 13,0
|
| 26. |
ZM2906382
|
[REQ] |
Washer
|
2,00 mm
|
| 27. |
ZM2906396
|
[1] |
Roller bearing
|
|
| 28. |
VOE11709810
|
[1] |
Roller bearing
|
|
| 29. |
VOE6213121
|
[1] |
Shim
|
0,10 mm
|
| 29. |
ZM2289550
|
[REQ] |
Washer
|
0,15 mm
|
| 29. |
VOE6213120
|
[REQ] |
Shim
|
0,20 mm
|
| 29. |
ZM2289552
|
[REQ] |
Washer
|
0,25 mm
|
| 29. |
VOE6213119
|
[REQ] |
Shim
|
0,30 mm
|
| 29. |
ZM2289547
|
[REQ] |
Washer
|
0,35 mm
|
| 29. |
VOE6213118
|
[REQ] |
Shim
|
0,40 mm
|
| 3. |
ZM2906412
|
[REQ] |
Sliding stone
|
A = 13,5
|
| 29. |
ZM2289485
|
[REQ] |
Washer
|
0,45 mm
|
| 29. |
VOE6213117
|
[REQ] |
Shim
|
0,50 mm
|
| 29. |
ZM2289486
|
[REQ] |
Washer
|
0,55 mm
|
| 29. |
VOE6213116
|
[REQ] |
Shim
|
0,60 mm
|
| 29. |
ZM2289673
|
[REQ] |
Washer
|
0,65 mm
|
| 29. |
ZM2289674
|
[REQ] |
Washer
|
0,70 mm
|
| 29. |
ZM2289675
|
[REQ] |
Washer
|
0,75 mm
|
| 29. |
VOE6213115
|
[REQ] |
Shim
|
0,80 mm
|
| 29. |
ZM2289676
|
[REQ] |
Washer
|
0,85 mm
|
| 29. |
ZM2289677
|
[REQ] |
Washer
|
0,90 mm
|
| 3. |
ZM2906404
|
[REQ] |
Contact Pin
|
A = 14,1
|
| 29. |
ZM2289682
|
[REQ] |
Washer
|
0,95 mm
|
| 29. |
ZM5230950
|
[REQ] |
Washer
|
1,00 mm
|
| 29. |
ZM2289693
|
[REQ] |
Washer
|
1,05 mm
|
| 29. |
ZM2289695
|
[REQ] |
Washer
|
1,10 mm
|
| 29. |
ZM2289697
|
[REQ] |
Washer
|
1,15 mm
|
| 29. |
ZM5230949
|
[REQ] |
Washer
|
1,20 mm
|
| 29. |
ZM2289678
|
[REQ] |
Washer
|
1,25 mm
|
| 29. |
ZM2289870
|
[REQ] |
Washer
|
1,30 mm
|
| 29. |
ZM2290219
|
[REQ] |
Washer
|
1,35 mm
|
| 29. |
VOE11706775
|
[REQ] |
Shim
|
1,40 mm
|
| 3. |
ZM2906405
|
[REQ] |
Contact
|
A = 14,4
|
| 29. |
ZM2290229
|
[REQ] |
Washer
|
1,45 mm
|
| 29. |
ZM2290231
|
[REQ] |
Washer
|
1,50 mm
|
| 29. |
ZM2290829
|
[REQ] |
Washer
|
1,55 mm
|
| 29. |
ZM2290837
|
[REQ] |
Washer
|
1,60 mm
|
| 29. |
ZM2290838
|
[REQ] |
Washer
|
1,65 mm
|
| 29. |
ZM5230947
|
[REQ] |
Washer
|
2,00 mm
|
| 30. |
ZM7096513
|
[1] |
Screw plug
|
M10x1
|
| 3. |
ZM2906406
|
[REQ] |
Contact Pin
|
A = 15,0
|
