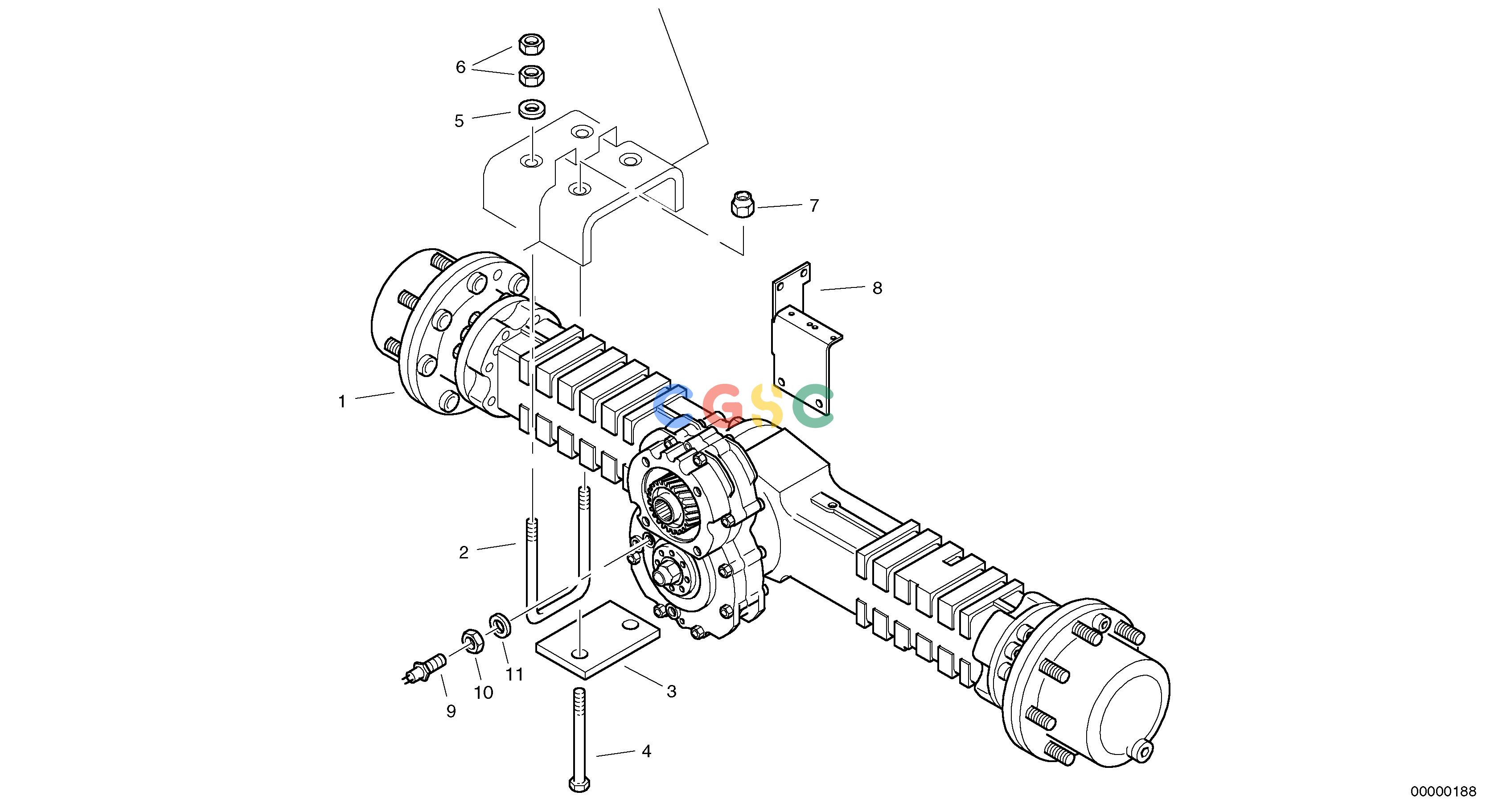

沃尔沃零件查询L40 Assembly - rear axleTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2808626
|
|
Rear axle
|
|
| 9. |
ZM2810102
|
[1] |
Impulse sensor
|
|
| 10. |
ZM7098061
|
[1] |
Nut
|
BM18x1,5
|
| 11. |
ZM2813087
|
[1] |
Seal
|
|
| 1. |
ZM2813985
|
[1] |
Axle with gearbox, cpl.
|
|
| 2. |
ZM2807847
|
[2] |
Axle holder
|
|
| 3. |
ZM2813250
|
[2] |
Plate
|
|
| 4. |
VOE11306735
|
[4] |
Hexagon screw
|
M20x1,5x230
|
| 5. |
VOE11306750
|
[4] |
Washer
|
21
|
| 6. |
VOE11306721
|
[8] |
Hexagon nut
|
M20x1,5
|
| 7. |
VOE11306512
|
[4] |
Lock nut
|
M20x1,5
|
| 8. |
ZM2812136
|
[1] |
Holder
|
|
