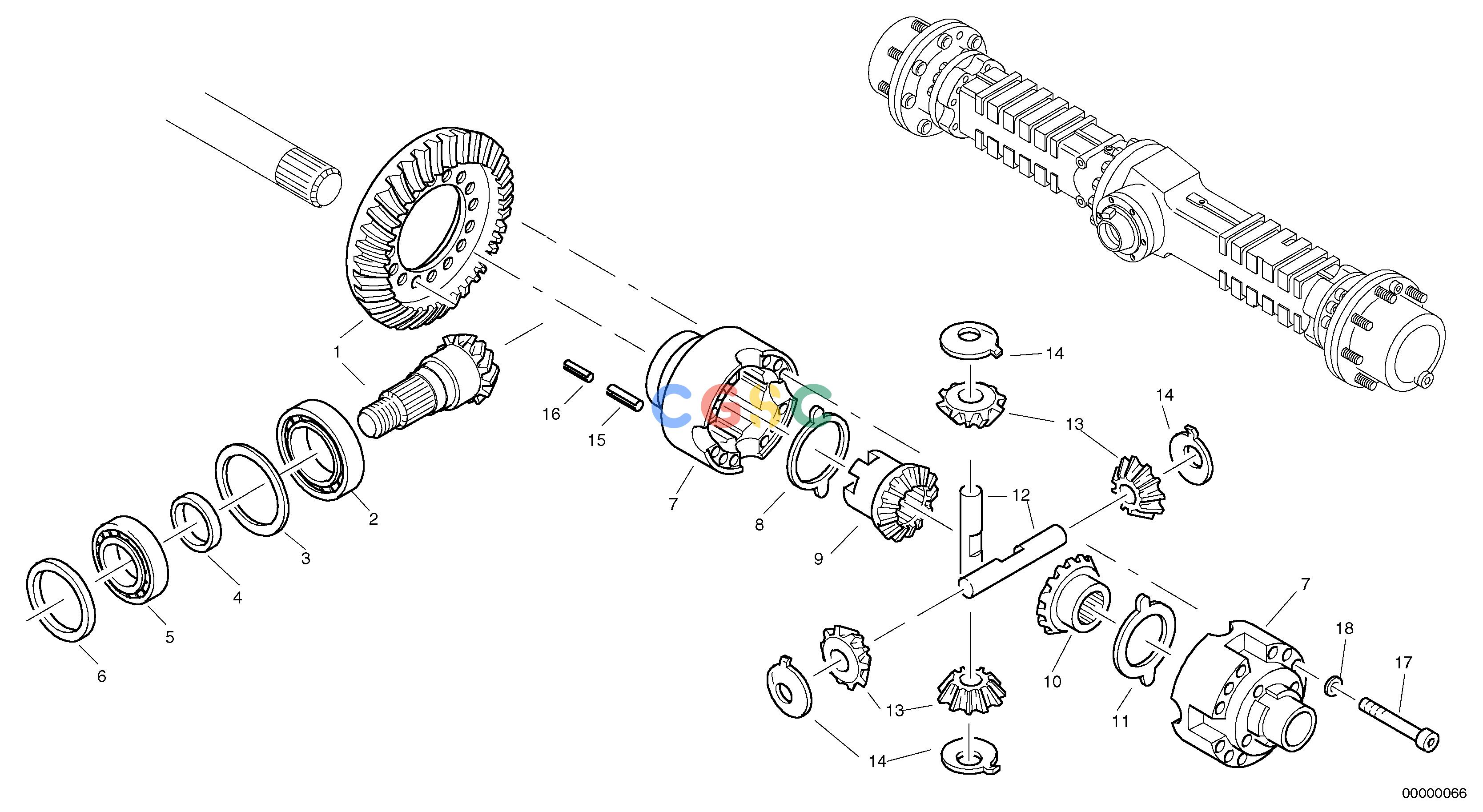

沃尔沃零件查询L40 Differential carrier - assy rear axleTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2906453
|
|
Diff Gear Kit
|
|
| 1. |
VOE15063301
|
[1] |
Differential pinion set
|
|
| 2. |
VOE11704955
|
[1] |
Roller bearing
|
|
| 3. |
VOE8550763
|
[1] |
Shim
|
0,70 mm
|
| 3. |
VOE8550764
|
[REQ] |
Shim
|
0,75 mm
|
| 3. |
VOE8550765
|
[REQ] |
Shim
|
0,80 mm
|
| 3. |
VOE8550766
|
[REQ] |
Shim
|
0,85 mm
|
| 3. |
VOE6213065
|
[REQ] |
Shim
|
0,90 mm
|
| 3. |
VOE6213066
|
[REQ] |
Shim
|
0,95 mm
|
| 3. |
VOE6213067
|
[REQ] |
Shim
|
1,00 mm
|
| 3. |
VOE6213068
|
[REQ] |
Shim
|
1,05 mm
|
| 3. |
VOE6213069
|
[REQ] |
Shim
|
1,10 mm
|
| 3. |
VOE6213070
|
[REQ] |
Shim
|
1,15 mm
|
| 3. |
ZM5230940
|
[REQ] |
Washer
|
1,20 mm
|
| 3. |
VOE6213072
|
[REQ] |
Shim
|
1,25 mm
|
| 3. |
VOE6213073
|
[REQ] |
Shim
|
1,30 mm
|
| 3. |
VOE8550767
|
[REQ] |
Shim
|
1,50 mm
|
| 4. |
ZM2906366
|
[1] |
Ring
|
10,94 mm
|
| 4. |
ZM2906365
|
[REQ] |
Ring
|
10,97 mm
|
| 4. |
VOE11704960
|
[REQ] |
Spacer ring
|
11,00 mm
|
| 4. |
ZM2906370
|
[REQ] |
Ring
|
11,03 mm
|
| 4. |
ZM2906369
|
[REQ] |
Ring
|
11,06 mm
|
| 4. |
ZM2906368
|
[REQ] |
Ring
|
11,09 mm
|
| 4. |
ZM2906367
|
[REQ] |
Ring
|
11,12 mm
|
| 4. |
ZM5240863
|
[REQ] |
Ring
|
11,15 mm
|
| 4. |
ZM5240864
|
[REQ] |
Ring
|
11,18 mm
|
| 4. |
ZM5240865
|
[REQ] |
Ring
|
11,21 mm
|
| 4. |
ZM5240866
|
[REQ] |
Ring
|
11,24 mm
|
| 4. |
ZM5240867
|
[REQ] |
Ring
|
11,27 mm
|
| 4. |
VOE11704956
|
[REQ] |
Spacer ring
|
11,30 mm
|
| 4. |
ZM5227736
|
[REQ] |
Ring
|
11,33 mm
|
| 4. |
ZM5227737
|
[REQ] |
Ring
|
11,36 mm
|
| 4. |
ZM5227738
|
[REQ] |
Ring
|
11,39 mm
|
| 4. |
ZM5227739
|
[REQ] |
Ring
|
11,42 mm
|
| 4. |
ZM5227740
|
[REQ] |
Ring
|
11,45 mm
|
| 4. |
ZM5227741
|
[REQ] |
Ring
|
11,48 mm
|
| 4. |
ZM5227742
|
[REQ] |
Ring
|
11,51 mm
|
| 4. |
ZM5227743
|
[REQ] |
Ring
|
11,54 mm
|
| 4. |
ZM5227744
|
[REQ] |
Ring
|
11,57 mm
|
| 4. |
VOE11704957
|
[REQ] |
Spacer ring
|
11,60 mm
|
| 4. |
ZM5227746
|
[REQ] |
Ring
|
11,63 mm
|
| 4. |
ZM5227747
|
[REQ] |
Ring
|
11,66 mm
|
| 4. |
ZM5227748
|
[REQ] |
Ring
|
11,69 mm
|
| 4. |
ZM5227749
|
[REQ] |
Ring
|
11,72 mm
|
| 4. |
ZM5227750
|
[REQ] |
Ring
|
11,75 mm
|
| 4. |
ZM5227751
|
[REQ] |
Ring
|
11,78 mm
|
| 4. |
ZM5227752
|
[REQ] |
Ring
|
11,81 mm
|
| 4. |
ZM5227753
|
[REQ] |
Ring
|
11,84 mm
|
| 4. |
ZM5227754
|
[REQ] |
Ring
|
11,87 mm
|
| 4. |
ZM5227755
|
[REQ] |
Ring
|
11,90 mm
|
| 4. |
ZM5227756
|
[REQ] |
Ring
|
11,93 mm
|
| 4. |
ZM5227757
|
[REQ] |
Ring
|
11,96 mm
|
| 4. |
ZM5227758
|
[REQ] |
Ring
|
11,99 mm
|
| 4. |
ZM5227759
|
[REQ] |
Ring
|
12,02 mm
|
| 4. |
ZM5227760
|
[REQ] |
Ring
|
12,05 mm
|
| 4. |
ZM5227761
|
[REQ] |
Ring
|
12,08 mm
|
| 4. |
ZM5227762
|
[REQ] |
Ring
|
12,11 mm
|
| 4. |
ZM5227763
|
[REQ] |
Ring
|
12,14 mm
|
| 4. |
ZM5227764
|
[REQ] |
Ring
|
12,17 mm
|
| 4. |
VOE11704959
|
[REQ] |
Spacer ring
|
12,20 mm
|
| 4. |
ZM5227766
|
[REQ] |
Ring
|
12,23 mm
|
| 4. |
ZM5227767
|
[REQ] |
Ring
|
12,26 mm
|
| 4. |
ZM5227768
|
[REQ] |
Ring
|
12,29 mm
|
| 4. |
ZM5227769
|
[REQ] |
Ring
|
12,32 mm
|
| 4. |
ZM5227770
|
[REQ] |
Ring
|
12,35 mm
|
| 4. |
ZM5227771
|
[REQ] |
Ring
|
12,38 mm
|
| 5. |
ZM2274730
|
[1] |
Bearing
|
|
| 6. |
ZM2906455
|
[1] |
Washer
|
|
| 7. |
ZM2906373
|
[1] |
Differential holder
|
|
| 8. |
ZM2906376
|
[1] |
Washer
|
|
| 9. |
VOE11715026
|
[1] |
Differential side gear
|
|
| 9. |
VOE11988771
|
[1] |
Differential side gear
|
|
| 11. |
VOE11704963
|
[1] |
Washer
|
|
| 12. |
VOE11710798
|
[2] |
Axle
|
|
| 13. |
VOE11988772
|
[4] |
Differential side gear
|
|
| 14. |
VOE11988773
|
[4] |
Thrust washer
|
|
| 15. |
VOE952034
|
[4] |
Spring pin
|
S14x40
|
| 16. |
ZM5226740
|
[4] |
Grooved Pin
|
S8x40
|
| 17. |
VOE11704965
|
[12] |
Screw
|
M12x1,5x120
|
| 18. |
VOE6646533
|
[12] |
Washer
|
|
