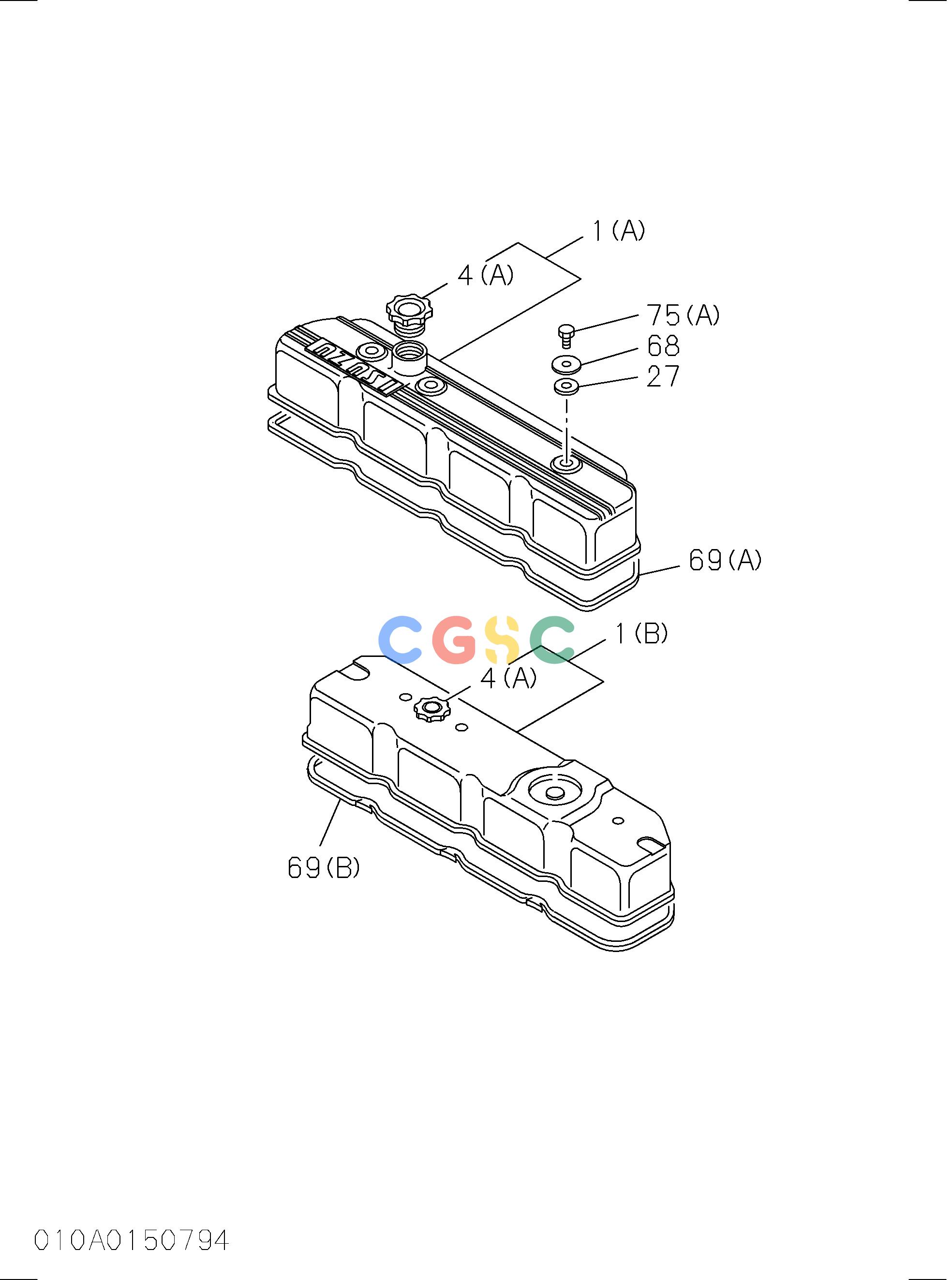

日立零件查询（BX70D）CYLINDER HEAD COVER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
418 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(B). | 8944368971 | [1] | COVER; CYL HD | |
| 4(A). | 8942391510 | [1] | CAP; OIL FILLER | |
| 27. | 9111790300 | [3] | GASKET; HD COVER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 68. | 9111791050 | [3] | WASHER; CAP NUT,HD COVER | |
| 69(B). | 8944625590 | [1] | GASKET; HD TO COVER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 69(B). | 8944625590 | [1] | GASKET; HD TO COVER | C ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 69(B). | 8943109120 | [1] | GASKET; HD TO COVER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 75(A). | 9111750120 | [3] | NUT; CAP,HD COVER | |
| 75(A). | 9111750120 | [3] | NUT; CAP,HD COVER | |
