日立零件查询（BX70D）CYLINDER HEAD Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
407 次

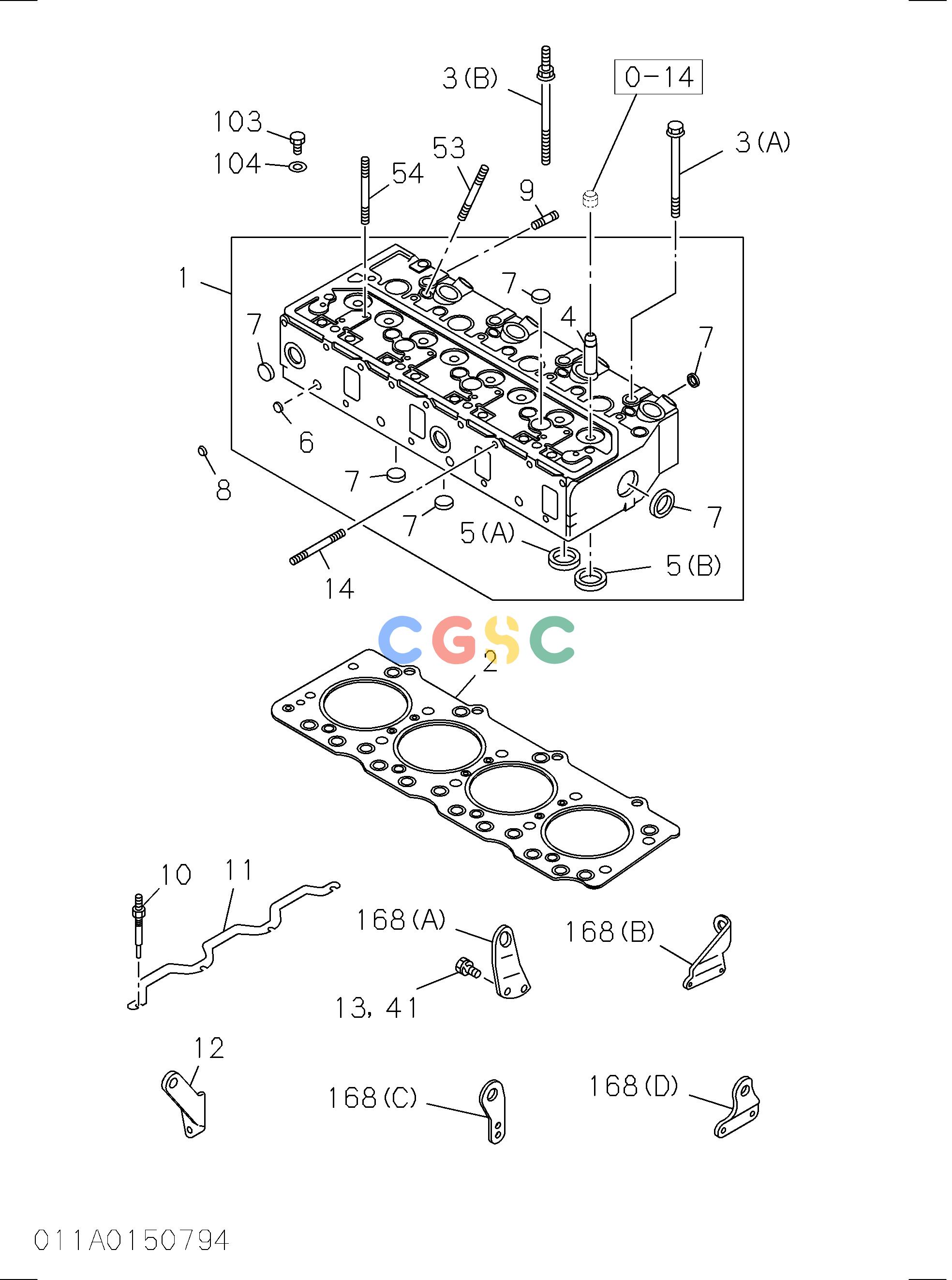

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5111101680 | [1] | HEAD ASM; CYL | |
| 2. | 8941458390 | [1] | GASKET; CYL HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 3(A). | 8943674370 | [4] | BOLT; CYL HD TO BLOCK | M12X102 |
| 3(A). | 1090701000 | [4] | BOLT; CYL HD TO BLOCK | M12X100 |
| 3(A). | 8943674380 | [14] | BOLT; CYL HD TO BLOCK | M12X115 |
| 3(A). | 1090701010 | [14] | BOLT; CYL HD TO BLOCK | M12X113 |
| 4. | 5117210010 | [8] | GUIDE; VLV | |
| 5(A). | 9117156070 | [4] | SEAT; VLV INSERT | OD=47 |
| 5(B). | 9117118030 | [4] | SEAT; VLV INSERT | OD=39 EXHAUST |
| 6. | 9096600340 | [4] | PLUG; PLATE | |
| 7. | 1096000051 | [1] | CUP; SEALING,CYL HEAD | OD=45 |
| 7. | 5112190150 | [2] | CUP; SEALING,CYL HEAD | OD=32 |
| 7. | 1096000160 | [7] | CUP; SEALING,CYL HEAD | OD=25 |
| 7. | 9111291280 | [2] | CUP; SEALING,CYL HEAD | OD=20 |
| 7. | 5096000130 | [4] | CUP; SEALING,CYL HEAD | OD=12.3 |
| 8. | 9111296010 | [4] | CUP; SEALING,WATER JACKET | |
| 9. | 9041108250 | [2] | STUD; INL MANIF | M8X25 L=37 |
| 9. | 9041108250 | [4] | STUD; INL MANIF | M8X25 L=37 |
| 10. | 9825139289 | [4] | PLUG; GLOW | C |
| 10. | 1825130430 | [4] | PLUG; GLOW | |
| 11. | 5197320021 | [1] | CONNECTOR; GLOW PLUG | |
| 12. | 9117778050 | [1] | HANGER; ENG,RR | |
| 13. | 0500410200 | [4] | BOLT; HANGER | |
| 13. | 0500410200 | [4] | BOLT; HANGER | |
| 13. | 0280810200 | [4] | BOLT; HANGER | |
| 14. | 9098301770 | [2] | STUD; EXH MANIF | M10X85 L=100 |
| 14. | 9041108750 | [2] | STUD; EXH MANIF | M8X75 L=87 |
| 53. | 1093000180 | [8] | STUD; INJ NOZZLE | M8X40 L=58 |
| 54. | 5093000650 | [3] | STUD; ROCKER ARM | M8X79 L=92 |
| 168(B). | 5117770640 | [1] | HANGER; ENG,FRT | |
