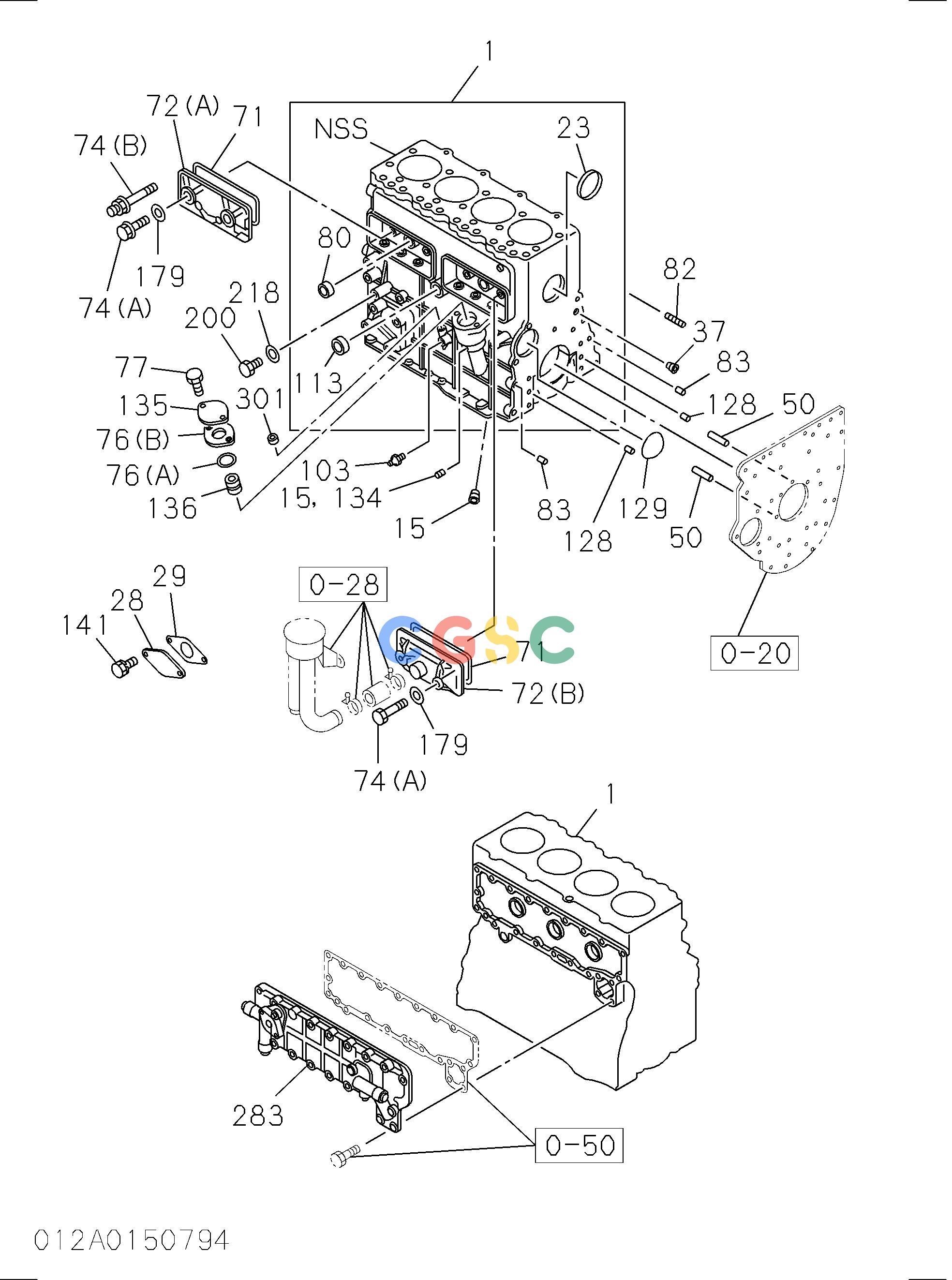

日立零件查询（BX70D）CYLINDER BLOCK Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
965 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8970267530 | [1] | BLOCK ASM; CYL | C |
| 1. | 8941303284 | [1] | BLOCK ASM; CYL | |
| 2. | 5878131240 | [4] | LINER SET;ENG CYL | GRADE=1 |
| 2. | 5878131250 | [4] | LINER SET;ENG CYL | GRADE=2 |
| 2. | 5878131260 | [4] | LINER SET;ENG CYL | GRADE=3 |
| 2. | 5878131270 | [4] | LINER SET;ENG CYL | GRADE=4 |
| 4. | 1112612400 | [4] | LINER;C/BL | OD GRD=1,ID GRD=AXALSO INCLUDED IN LINER SET. |
| 4. | 1112612410 | [4] | LINER;C/BL | OD GRD=1,ID GRD=CXALSO INCLUDED IN LINER SET. |
| 4. | 1112612420 | [4] | LINER;C/BL | OD GRD=2,ID GRD=AXALSO INCLUDED IN LINER SET. |
| 4. | 1112612430 | [4] | LINER;C/BL | OD GRD=2,ID GRD=CXALSO INCLUDED IN LINER SET. |
| 4. | 1112612440 | [4] | LINER;C/BL | OD GRD=3,ID GRD=AXALSO INCLUDED IN LINER SET. |
| 4. | 1112612450 | [4] | LINER;C/BL | OD GRD=3,ID GRD=CXALSO INCLUDED IN LINER SET. |
| 4. | 1112612460 | [4] | LINER;C/BL | OD GRD=4,ID GRD=AXALSO INCLUDED IN LINER SET. |
| 4. | 1112612470 | [4] | LINER;C/BL | OD GRD=4,ID GRD=CXALSO INCLUDED IN LINER SET. |
| 8. | 1090004691 | [10] | BOLT; BRG CAP | |
| 13. | 8941480790 | [2] | DOWEL; C/BL TO HD | |
| 15. | 9992055170 | [1] | PLUG; OIL GALLERY | PT3/8 |
| 15. | 5096050180 | [7] | PLUG; OIL GALLERY | PT1/8 L=8 SQ.HEAD |
| 23. | 1096000520 | [2] | CUP; SEALING, C/BL FRT & RR | |
| 25(A). | 5116110130 | [1] | METAL; CM/SHF | C |
| 25(A). | 9116110480 | [1] | METAL; CM/SHF | |
| 25(B). | 9116130350 | [2] | METAL; CM/SHF | |
| 28. | 8941745290 | [1] | COVER; OIL PORT | |
| 29. | 8943210180 | [1] | GASKET; COVER,OIL PORT | C |
| 29. | 8943706630 | [1] | GASKET; COVER,OIL PORT | |
| 34. | 8970233390 | [1] | VALVE; OIL RELIEF | |
| 35. | 5096230350 | [1] | GASKET; RELIEF VLV | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 37. | 1096050681 | [2] | PLUG; OIL GALLERY | |
| 38. | 1097400780 | [1] | PIN; TIMING GEAR CASE | |
| 45(B). | 1824100912 | [1] | SWITCH; OIL PRESSURE | |
| 45(B). | 1824100912 | [1] | SWITCH; OIL PRESSURE | |
| 71. | 8943673681 | [2] | GASKET; COVER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 71. | 8943673681 | [2] | GASKET; COVER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 72(A). | 8970285250 | [1] | COVER; TAPPET CHAMBER | |
| 72(A). | 8970285250 | [1] | COVER; TAPPET CHAMBER | |
| 72(A). | 8970285250 | [1] | COVER; TAPPET CHAMBER | |
| 72(B). | 5112901451 | [1] | COVER; TAPPET CHAMBER | |
| 72(B). | 5112901451 | [1] | COVER; TAPPET CHAMBER | |
| 72(B). | 5112901451 | [1] | COVER; TAPPET CHAMBER | |
| 74(A). | 8943675301 | [1] | BOLT; COVER TO C/BL | M8X56 FLANGE |
| 74(A). | 8944299951 | [2] | BOLT; COVER TO C/BL | M8X84 |
| 74(B). | 8941296562 | [1] | BOLT; COVER TO C/BL | C M8X12 & M8X56 |
| 74(B). | 8943675311 | [1] | BOLT; COVER TO C/BL | M8X56 |
| 76(A). | 1096234650 | [1] | GASKET; COVER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 77. | 0500408200 | [2] | BOLT; COVER TO C/BL | |
| 80. | 1096000121 | [2] | CUP; SEALING,TAPPET CHAMBER | |
| 83. | 9081510180 | [2] | PIN; FLYWHEEL HSG | |
| 113. | 5112190140 | [1] | CUP; SEALING | |
| 129. | 9098600190 | [1] | PLUG; PLATE,C/BL | |
| 130. | 5112570011 | [1] | DOWEL; BRG CAP | |
| 135. | 1112191291 | [1] | COVER; OIL PUMP | |
| 136. | 5112240040 | [1] | BUSHING; DRIVE SHAFT,OIL PUMP | |
| 137(B). | 1096800250 | [1] | COCK; DRAIN,WATER | |
| 140. | 5096600330 | [1] | NIPPLE;INJ,PUMP.OIL | |
| 141. | 0500408180 | [2] | BOLT; COVER | |
| 141. | 0280808160 | [2] | BOLT; COVER | |
| 179. | 9095720080 | [4] | GASKET; COVER TO BOLT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 200. | 9992023140 | [1] | PLUG; OIL GALLERY | |
| 218. | 9095720140 | [1] | GASKET; PLUG,C/BL SIDE | |
| 236. | 1093000530 | [1] | STUD; ENG FOOT | L1=18 |
