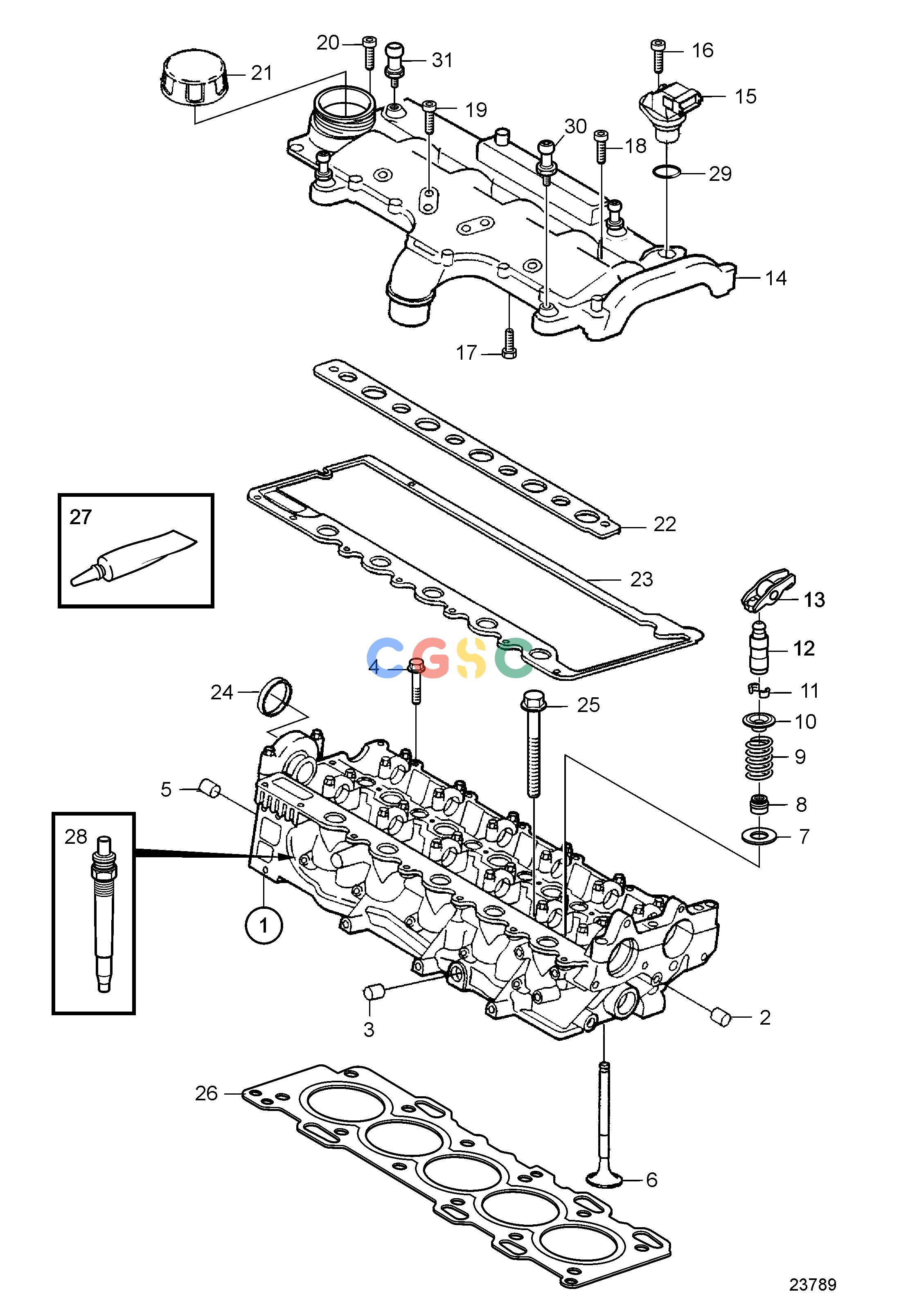

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-EngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
829 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803856
|
[1] |
Cylinder head
|
(3803647), Replaced by 3801742
|
| 1. |
3801742
|
[1] |
Cylinder head
|
|
| 2. |
946780
|
[1] |
Cap plug
|
|
| 3. |
946779
|
[2] |
Cap plug
|
|
| 4. |
965212
|
[24] |
Flange screw
|
M6x35mm
|
| 5. |
981713
|
[3] |
Plug
|
|
| 6. |
8631650
|
[10] |
Inlet valve, intake
|
|
| 6. |
8631651
|
[10] |
Exhaust valve, exhaust
|
|
| 7. |
8631655
|
[20] |
Valve spring washer
|
|
| 8. |
8631652
|
[20] |
Valve stem seal
|
|
| 9. |
8631656
|
[20] |
Valve spring
|
|
| 10. |
8631654
|
[20] |
Valve spring washer
|
|
| 11. |
9454613
|
[40] |
Valve collet
|
|
| 12. |
31251885
|
[20] |
Pivot
|
|
| 13. |
8670045
|
[20] |
Tappet
|
|
| 14. |
8692397
|
[1] |
Valve cover
|
|
| 15. |
8631533
|
[1] |
Camshaft position se
|
|
| 16. |
986214
|
[1] |
Six point socket scr
|
|
| 17. |
982483
|
[3] |
Six point socket scr
|
M6x14
|
| 18. |
982484
|
[19] |
Six point socket scr
|
M6x20mm
|
| 19. |
982486
|
[4] |
Six point socket scr
|
M6x45
|
| 20. |
|
|
|
|
| 21. |
1275403
|
[1] |
Oil filler cap
|
|
| 22. |
8642665
|
[1] |
Gasket
|
|
| 23. |
8692438
|
[1] |
Gasket
|
|
| 24. |
8631561
|
[1] |
Sealing ring
|
|
| 25. |
9497825
|
[12] |
Screw, cylinder head
|
|
| 26. |
30731261
|
[1] |
Cylinder head gasket
|
Gasket with 1 hole., Class A, (30650521)
|
| 26. |
30731262
|
[1] |
Cylinder head gasket
|
Gasket with 2 hole., Class B, (30650522)
|
| 26. |
30731263
|
[1] |
Cylinder head gasket
|
Gasket with 3 hole., Class C, (30650523)
|
| 26. |
30650524
|
[1] |
Gasket
|
Gasket with 4 hole., Class D
|
| 26. |
30650525
|
[1] |
Gasket
|
Gasket with 5 hole., Class E
|
| 27. |
1161059
|
[1] |
Sealing compound
|
SN-2003004733, SN2003004843, SN2003004845, SN2003004852, SN2003004853, SN2003004857
|
| 27. |
1161771
|
[1] |
Sealing compound
|
SN2003004734-
|
| 28. |
8631607
|
[5] |
Glow plug
|
12V, SOLAS
|
| 29. |
30756062
|
[1] |
O-ring
|
|
| 30. |
30731216
|
[3] |
Ball screw
|
|
| 31. |
3812606
|
[1] |
Ball stud
|
|
