沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-EngineEngine CoverEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
878 次

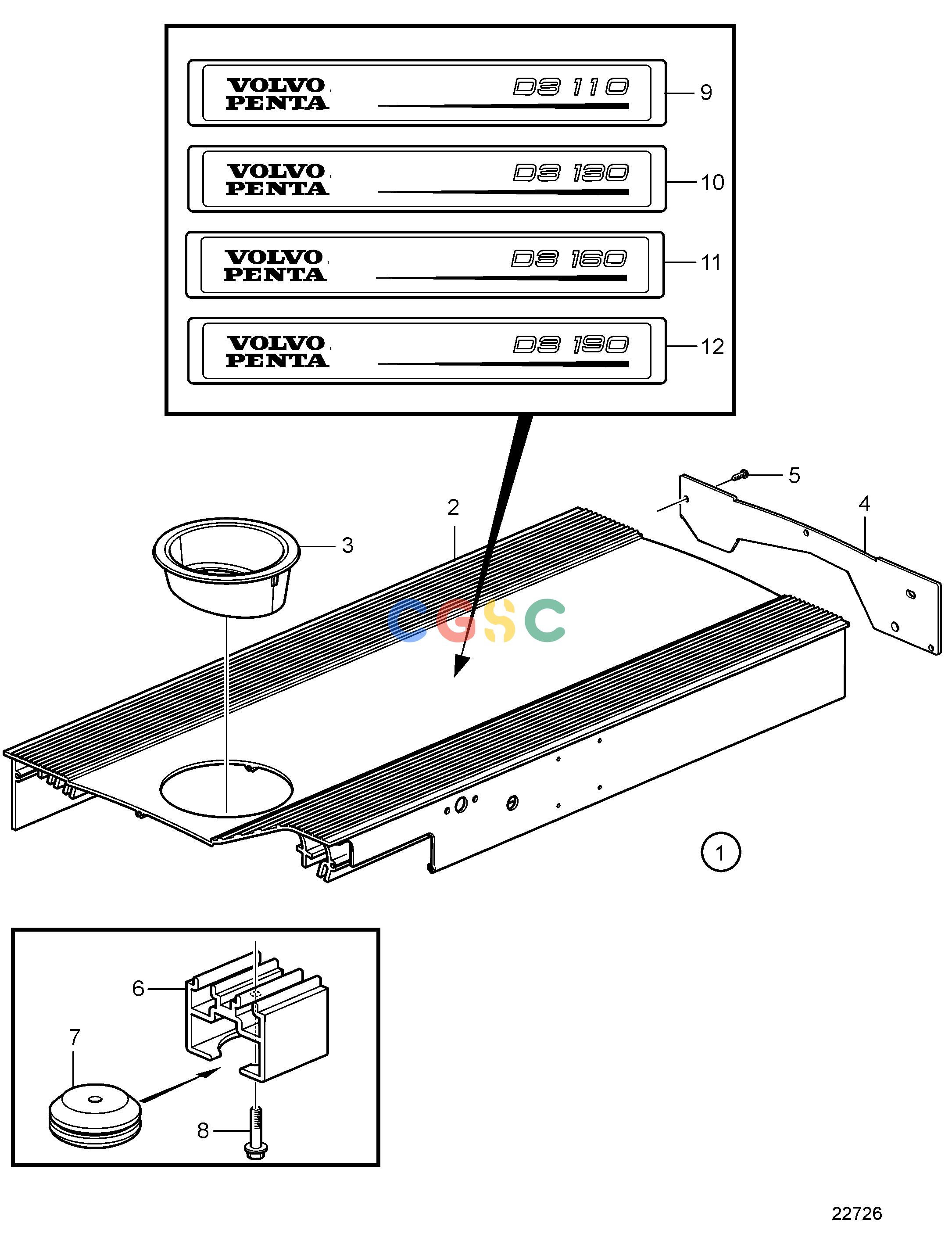

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3884631
|
[1] |
Cover, complete
|
|
| 2. |
3808288
|
[1] |
Cover
|
|
| 3. |
3812607
|
[1] |
Cup
|
|
| 4. |
3819953
|
[1] |
End cover
|
|
| 5. |
969456
|
[4] |
Six point socket scr
|
|
| 6. |
888512
|
[4] |
Bracket
|
|
| 7. |
8642162
|
[4] |
Rubber cushion
|
|
| 8. |
969476
|
[4] |
Six point socket scr
|
|
| 9. |
888382
|
[1] |
Decal
|
|
| 10. |
888383
|
[1] |
Decal
|
|
| 11. |
3584298
|
[1] |
Decal
|
|
| 12. |
3812572
|
[1] |
Decal
|
|
