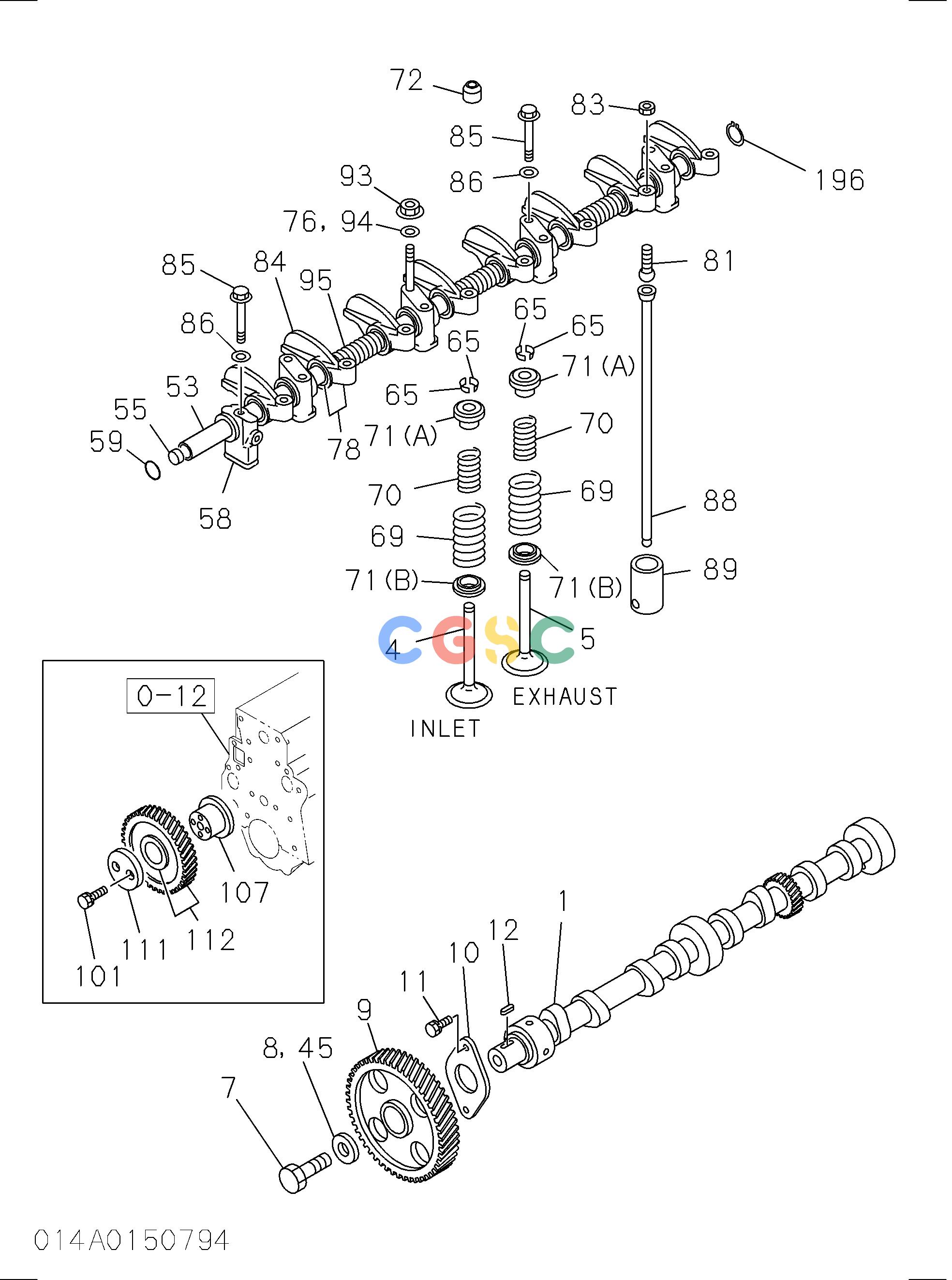

日立零件查询（BX70D）CAMSHAFT AND VALVE Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
359 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8944094120 | [1] | CAMSHAFT | |
| 4. | 1125510501 | [4] | VALVE; INL | |
| 4. | 1125510501 | [4] | VALVE; INL | |
| 5. | 1125520251 | [4] | VALVE; EXH | |
| 5. | 1125520251 | [4] | VALVE; EXH | |
| 7. | 5090002360 | [1] | BOLT; CM/SHF GEAR | M14X39 |
| 9. | 9125221471 | [1] | GEAR; CM/SHF | C |
| 10. | 9116810150 | [1] | PLATE; THRUST | |
| 11. | 0500408250 | [2] | BOLT; THRUST PLATE TO C/BL | |
| 12. | 9080107200 | [1] | KEY; CAM GEAR SET | |
| 45. | 9098518503 | [1] | WASHER; GEAR CAM | |
| 53. | 8941295510 | [1] | SHAFT; ROCKER ARM | |
| 53. | 8941295510 | [1] | SHAFT; ROCKER ARM | |
| 55. | 9126260050 | [2] | PLUG; ROCKER SHAFT END | |
| 58. | 5126280120 | [1] | BRACKET; ROCKER SHAFT,FRT | |
| 59. | 5096230600 | [1] | GASKET; ROCKER SHAFT | |
| 65. | 5125650060 | [16] | COLLAR; SPLIT | |
| 69. | 5125610090 | [8] | SPRING; VLV,OUTER | |
| 71(B). | 1125630351 | [8] | SEAT; SPR | |
| 71(A). | 8941145790 | [8] | SEAT; SPR | |
| 72. | 1125690150 | [8] | SEAL; VLV GUIDE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 72. | 1125690150 | [8] | SEAL; VLV GUIDE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 76. | 9098514300 | [3] | WASHER; PL,BRKT | |
| 78. | 5126110310 | [8] | ARM; ROCKER | |
| 78. | 5126110310 | [8] | ARM; ROCKER | |
| 81. | 9126160420 | [8] | SCREW; ADJ,ROCKER ARM | |
| 83. | 9091115080 | [8] | NUT; ADJ SCREW,LK | |
| 84. | 9126281050 | [4] | BRACKET; ROCKER SHAFT,INTER | |
| 85. | 1090005670 | [6] | BOLT; BRKT | |
| 86. | 9098514300 | [6] | WASHER; ROCKER ARM FIX | |
| 88. | 1125750360 | [8] | ROD; PUSH | |
| 89. | 5125710032 | [8] | TAPPET; VALVE | |
| 93. | 1094001160 | [3] | NUT; BRKT | |
| 95. | 1095803350 | [3] | SPRING; ROCKER SHAFT | |
| 101. | 5090300381 | [2] | BOLT; THRUST COLLAR | |
| 107. | 9125310300 | [1] | SHAFT; IDLE GEAR | |
| 111. | 5125350011 | [1] | COLLAR; THRUST,IDLER GEAR | |
| 112. | 9125238014 | [1] | GEAR; IDLER | C |
| 196. | 9091800190 | [1] | RING; SNAP | |
