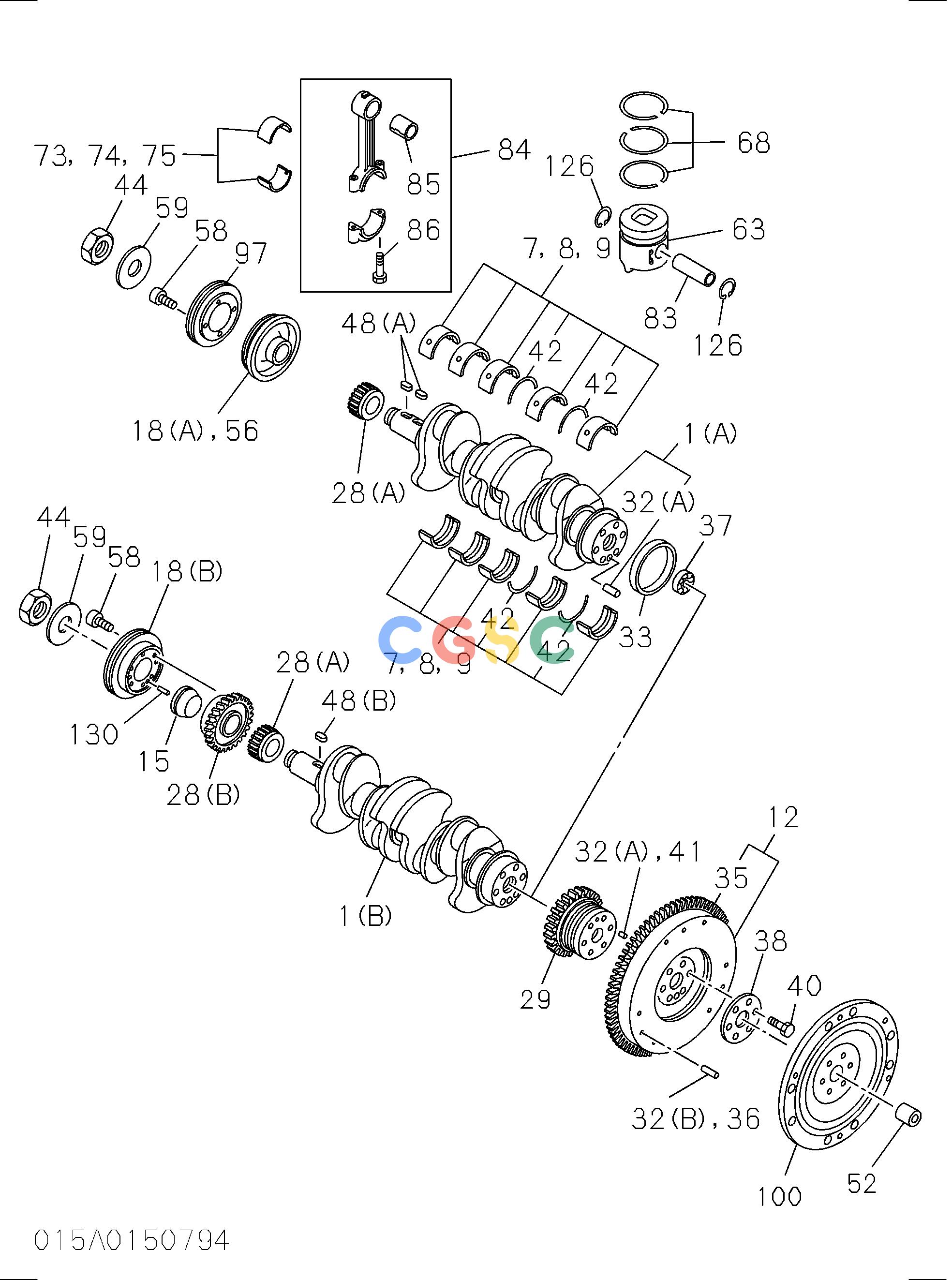

日立零件查询（BX70D）CRANKSHAFT,PISTON AND FLYWHEEL Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
911 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(B). | 5123102151 | [1] | CRANKSHAFT | |
| 7. | 8941170322 | [1] | METAL KIT; CRANKSHAFT,STANDARD | |
| 12. | 8944592440 | [1] | FLYWHEEL | |
| 15. | 5123790141 | [1] | BUSHING; TAPER,CR/SHF PULLEY | |
| 18(B). | 8944648320 | [1] | PULLEY; CR/SHF | |
| 28(A). | 9125210430 | [1] | GEAR; CR/SHF | |
| 28(A). | 9125210430 | [1] | GEAR; CR/SHF | |
| 32(A). | 9081612200 | [1] | PIN; FLYWHEEL | |
| 35. | 9123336070 | [1] | GEAR; RING | |
| 38. | 5123360030 | [1] | WASHER; FLYWHEEL | |
| 40. | 5123340030 | [6] | BOLT; FLYWHEEL | |
| 42. | 8941145652 | [2] | WASHER; THRUST,CR/SHF | |
| 44. | 5094000460 | [1] | NUT; CR/SHF FRT | |
| 48(B). | 5097380010 | [1] | KEY; WOODRUFF,CR/SHF | |
| 59. | 5095031011 | [1] | WASHER; CR/SHF PULLEY | |
| 63. | 8971766340 | [4] | PISTON; STANDARD | GRADE=AXALSO INCLUDED IN LINER SET. |
| 63. | 8971766350 | [4] | PISTON; STANDARD | GRADE=CXALSO INCLUDED IN LINER SET. |
| 68. | 5121210050 | [4] | RING SET; PISTON,STANDARD | ALSO INCLUDED IN LINER SET. |
| 73. | 9122716080 | [4] | METAL SET; CONN ROD,STANDARD | |
| 83. | 9122116041 | [4] | PIN; PISTON | ALSO INCLUDED IN LINER SET. |
| 84. | 1122301041 | [4] | ROD ASM; CONN | |
| 85. | 1122510270 | [4] | BUSHING; CONNROD | ALSO INCLUDED IN LINER SET. |
| 86. | 1122350271 | [8] | BOLT; CONNROD | |
| 126. | 8941075751 | [8] | RING; SNAP,PISTON PIN | ALSO INCLUDED IN LINER SET. |
