日立零件查询（BX70D）TIMING GEAR CASE AND FLYWHEEL HOUSING Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
490 次

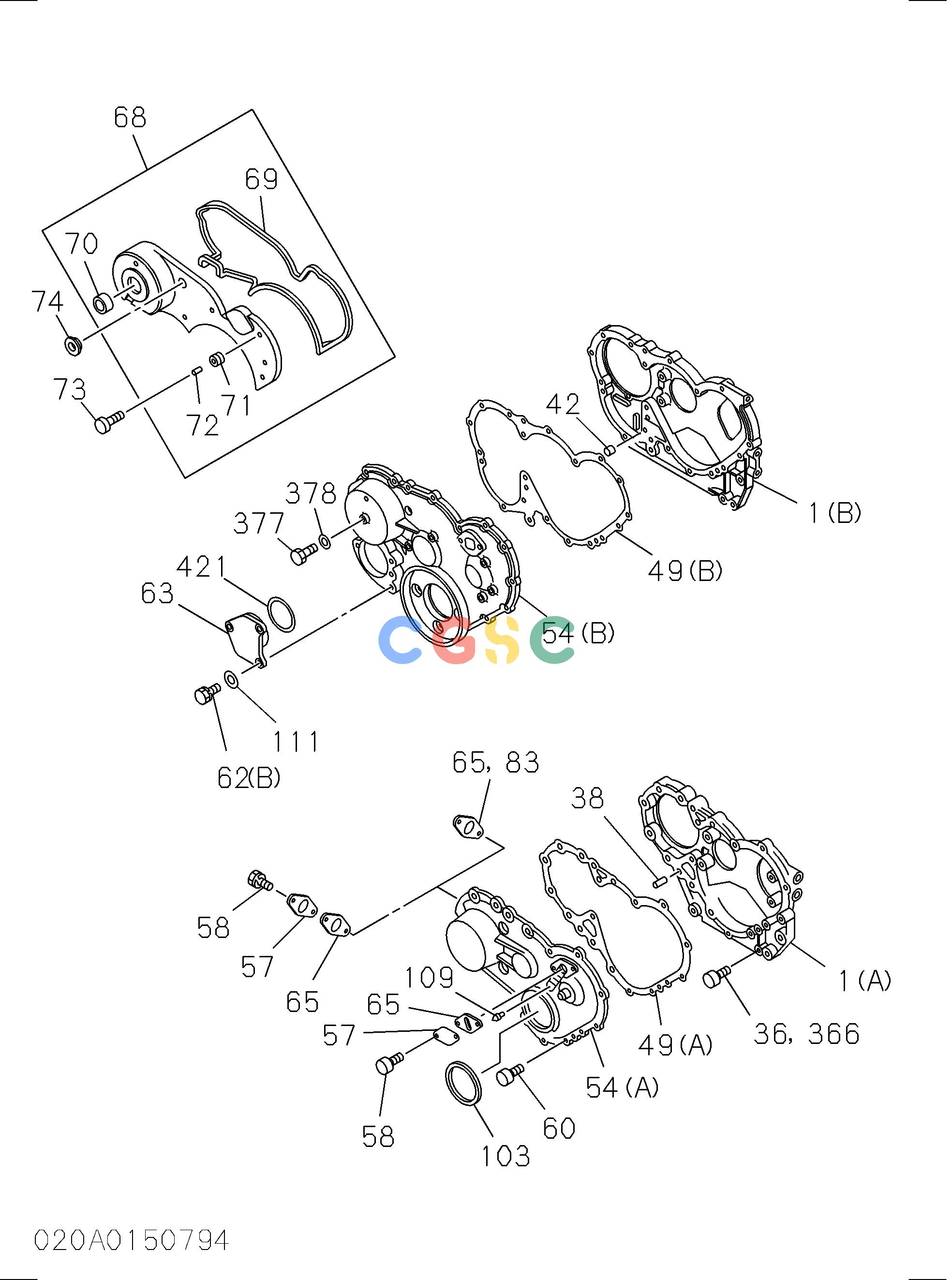

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 5113110113 | [1] | CASE; TIMING GEAR | |
| 2(A). | 5113410078 | [1] | HOUSING; FLYWHEEL | |
| 38. | 9081510180 | [1] | PIN; GEAR CASE COVER | |
| 49(A). | 8943632690 | [1] | GASKET; GEAR CASE TO COVER | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 49(A). | 1113220600 | [1] | GASKET; GEAR CASE TO COVER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 54(A). | 8944707110 | [1] | COVER; GEAR CASE | |
| 56. | 1113120140 | [1] | GASKET; GEAR CASE TO COVER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 56. | 8943706710 | [1] | GASKET; GEAR CASE TO COVER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 57. | 5113210090 | [1] | COVER; TIMING CHECK HOLE | |
| 57. | 5113210090 | [1] | COVER; TIMING CHECK HOLE | |
| 58. | 0500406140 | [2] | BOLT; CHECK HOLE COVER | M6X14 W/LK WASHER |
| 58. | 0500406140 | [2] | BOLT; CHECK HOLE COVER | M6X14 W/LK WASHER |
| 58. | 0280806120 | [2] | BOLT; CHECK HOLE COVER | M6X12 FLANGE |
| 60. | 0500408250 | [6] | BOLT; COVER TO CASE | M8X25 W/LK WASHER |
| 60. | 5090000841 | [4] | BOLT; COVER TO CASE | M8X55 W/LK WASHER |
| 65. | 1112820130 | [1] | GASKET; COVER,TIMING CHECK HOLE | |
| 65. | 1112820130 | [1] | GASKET; COVER,TIMING CHECK HOLE | C |
| 65. | 8970276011 | [1] | GASKET; COVER,TIMING CHECK HOLE | |
| 103. | 1096253160 | [1] | SEAL; OIL,CR/SHF,FRT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 109. | 5113270090 | [1] | POINTER; TIMING | |
| 175. | 1096253620 | [1] | SEAL; OIL,CR/SHF,RR | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 211(A). | 0500408250 | [7] | BOLT; HSG | |
| 241(A). | 9096510690 | [8] | WASHER; PL,HSG | |
| 241(A). | 9096510690 | [8] | WASHER; PL,HSG | |
| 242. | 9095714160 | [1] | GASKET; PLUG | |
| 366. | 0500408200 | [4] | BOLT; GEAR CASE | |
| 366. | 0286808200 | [4] | BOLT; GEAR CASE | |
| 366. | 0500408450 | [2] | BOLT; GEAR CASE | |
| 366. | 0286808400 | [2] | BOLT; GEAR CASE | |
| 382(A). | 9992023160 | [1] | PLUG; HSG | |
