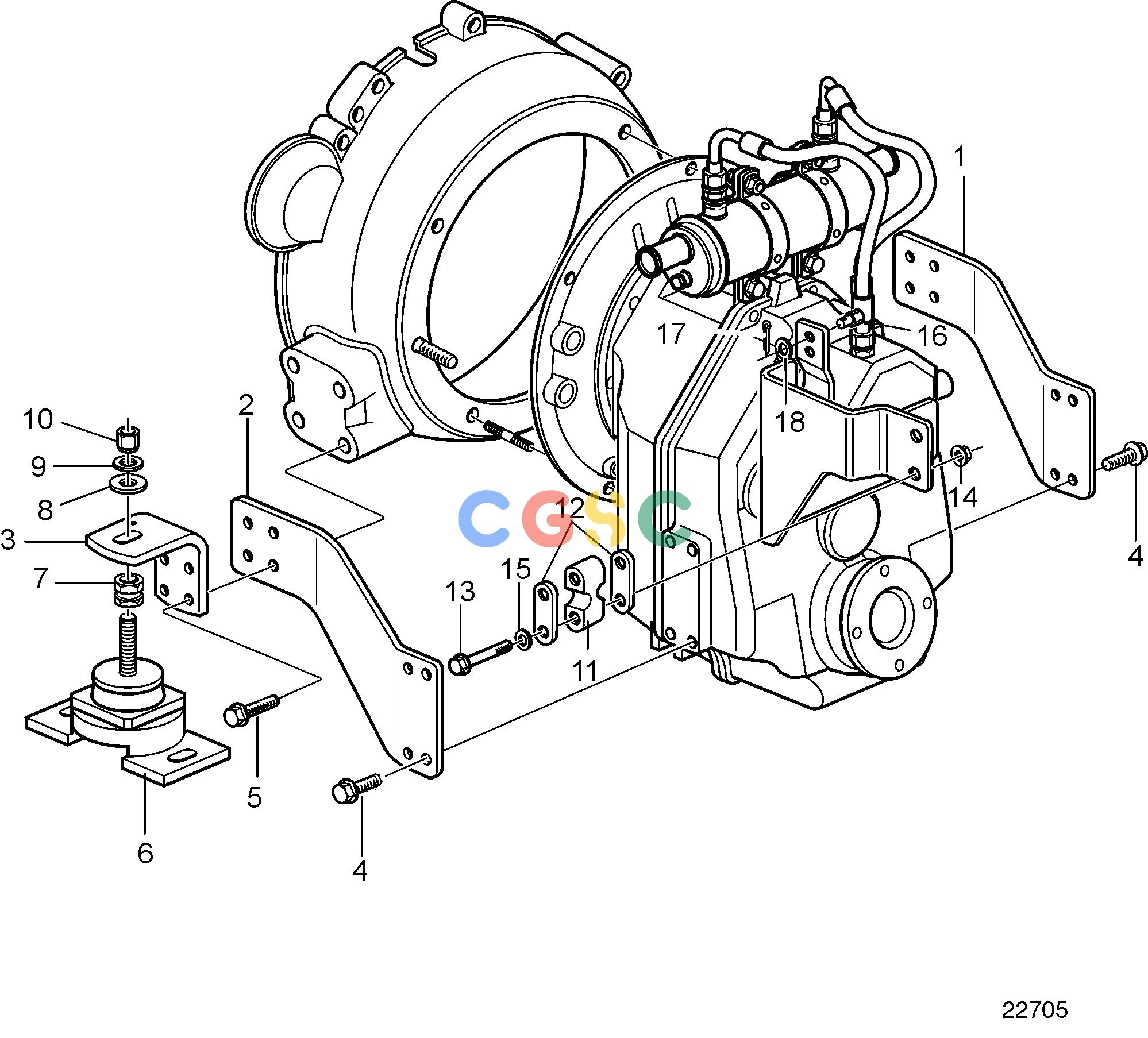

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-EngineEngine Mounts for Reverse Gear HS63VEEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
623 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3817416
|
[1] |
Bracket
|
|
| 2. |
3817414
|
[1] |
Bracket
|
|
| 3. |
3817418
|
[2] |
Engine bracket
|
|
| 4. |
965191
|
[8] |
Flange screw
|
M12x30mm
|
| 5. |
965227
|
[8] |
Flange screw
|
M12x55mm
|
| 6. |
3842098
|
[2] |
Rubber cushion
|
|
| 7. |
3826709
|
[2] |
Adjusting sleeve
|
|
| 8. |
3832907
|
[2] |
Spacer
|
|
| 9. |
955900
|
[2] |
Washer
|
|
| 10. |
963110
|
[2] |
Lock nut
|
|
| 11. |
872074
|
[1] |
Retainer
|
|
| 12. |
872076
|
[2] |
Washer
|
|
| 13. |
969439
|
[1] |
Six point socket scr
|
M5x40mm
|
| 14. |
949874
|
[1] |
Flange lock nut
|
|
| 15. |
940090
|
[2] |
Washer
|
|
| 16. |
3852329
|
[1] |
Cube
|
|
| 17. |
17276
|
[1] |
Split pin
|
|
| 18. |
941906
|
[1] |
Spring washer
|
|
