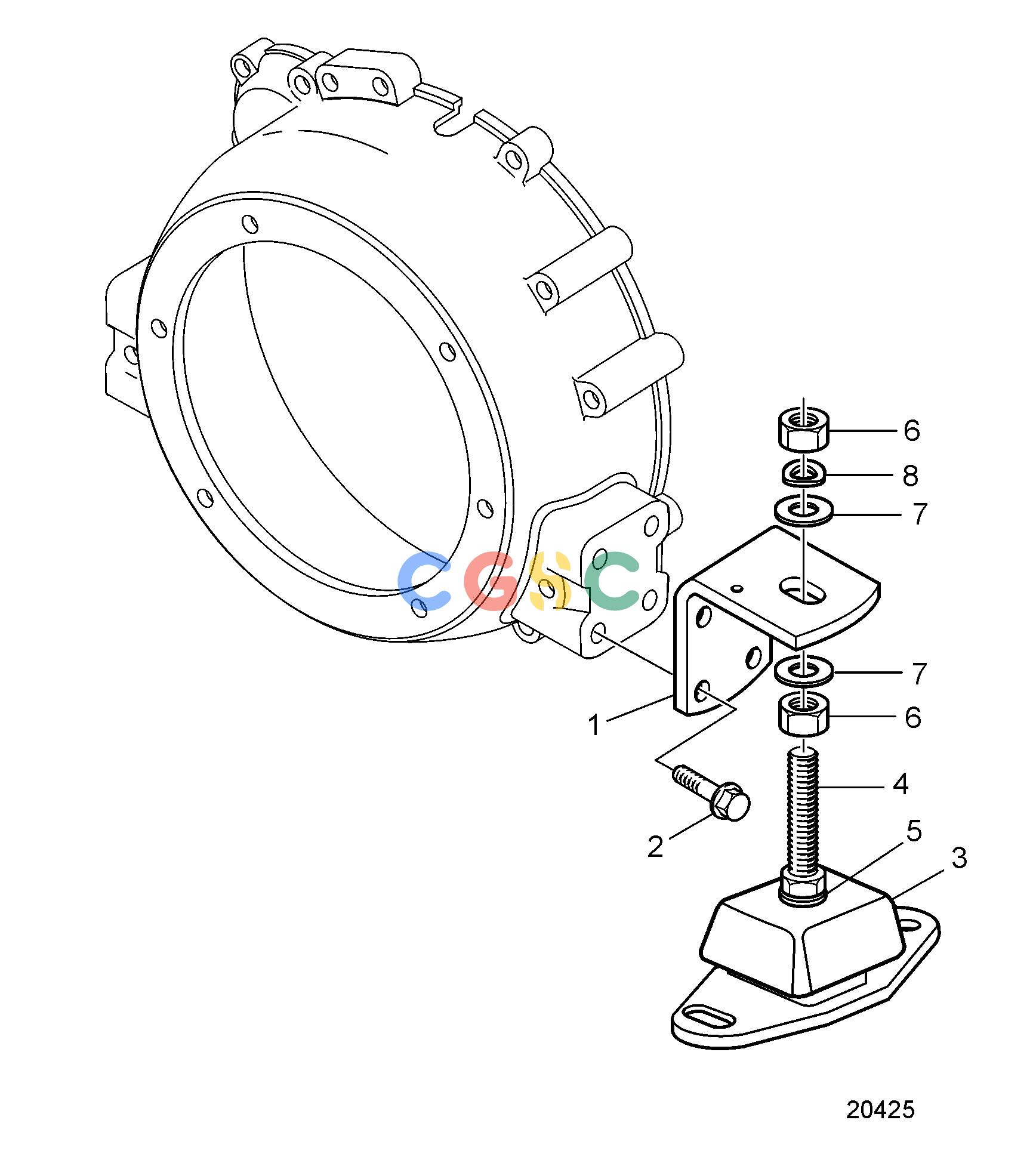

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-EngineEngine Mounts for Reverse Gear HS25A-A and HS45A-AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3589825
|
[2] |
Bracket
|
|
| 2. |
965193
|
[8] |
Flange screw
|
M12x50mm
|
| 3. |
846765
|
[2] |
Rubber element
|
|
| 4. |
860950
|
[2] |
Adjusting screw
|
|
| 5. |
955900
|
[2] |
Washer
|
|
| 6. |
955806
|
[4] |
Hexagon nut
|
|
| 7. |
978991
|
[4] |
Washer
|
|
| 8. |
941913
|
[2] |
Spring washer
|
|
