日立零件查询（BX70D）VENTILATION SYSTEM Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
200 次

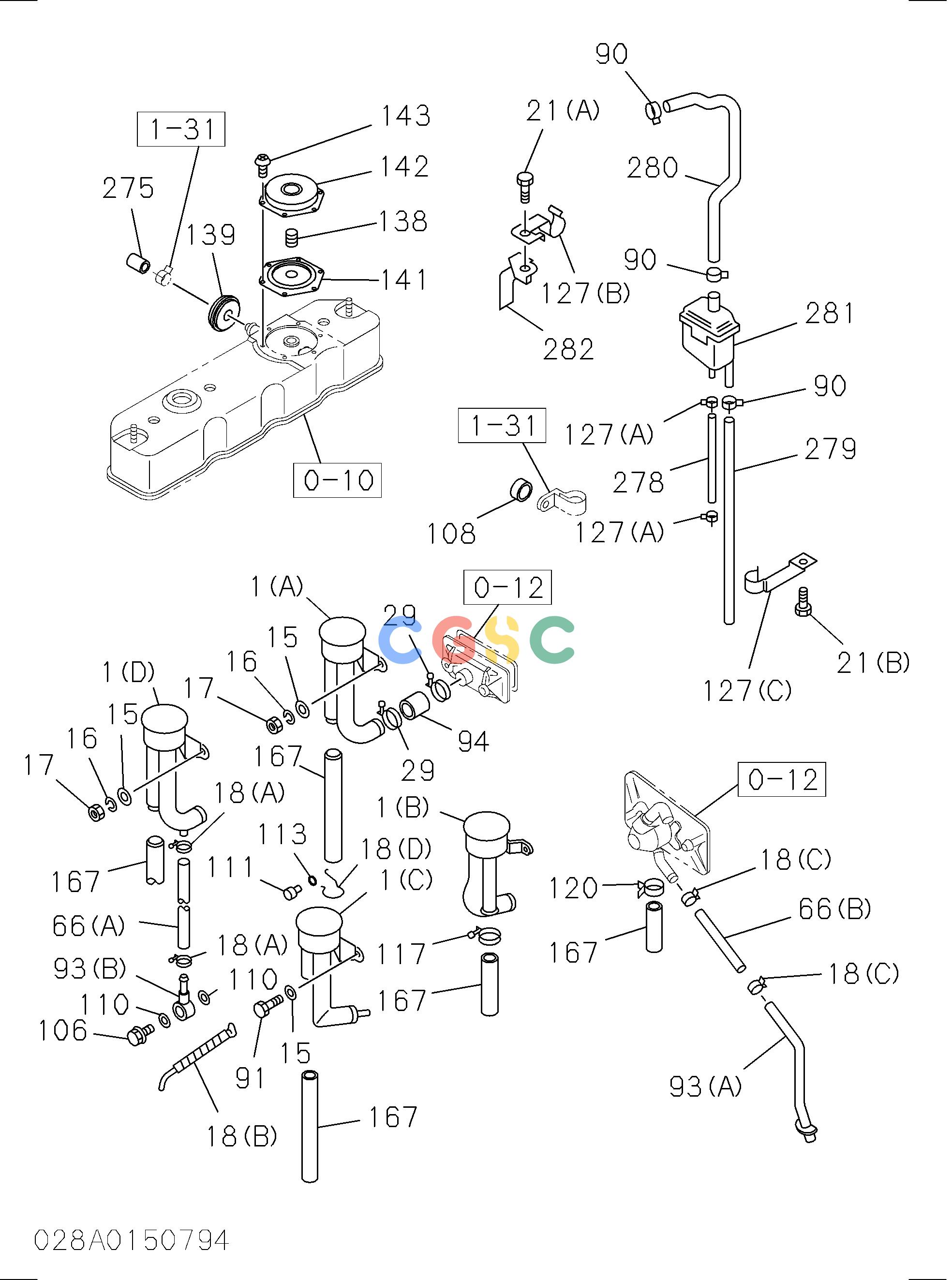

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 8941691931 | [1] | BREATHER; AIR | |
| 15. | 9091645080 | [2] | WASHER; PL,BREATHER | |
| 16. | 9091505080 | [2] | WASHER; LK,BREATHER | |
| 17. | 9091104080 | [2] | NUT; BREATHER FIX | |
| 17. | 0911501080 | [2] | NUT; BREATHER FIX | |
| 18(D). | 5097040331 | [1] | CLIP; RUBBER HOSE,AIR BREATHER | |
| 29. | 1097071340 | [2] | CLIP; RUBBER HOSE,BREATHER | |
| 29. | 8941625680 | [2] | CLIP; RUBBER HOSE,BREATHER | |
| 94. | 8944338711 | [1] | HOSE; BREATHER TO PIPE | C L=53 |
| 94. | 8972242050 | [1] | HOSE; BREATHER TO PIPE | |
| 111. | 0500408200 | [1] | BOLT; CLIP | M8X20 W/LK WASHER |
| 111. | 0280808180 | [1] | BOLT; CLIP | M8X18 FLANGE |
| 113. | 9091606080 | [1] | WASHER; PL,CLIP | |
| 167. | 8941376820 | [1] | PIPE; BREATHER | L=740 S.B. L=1200 |
