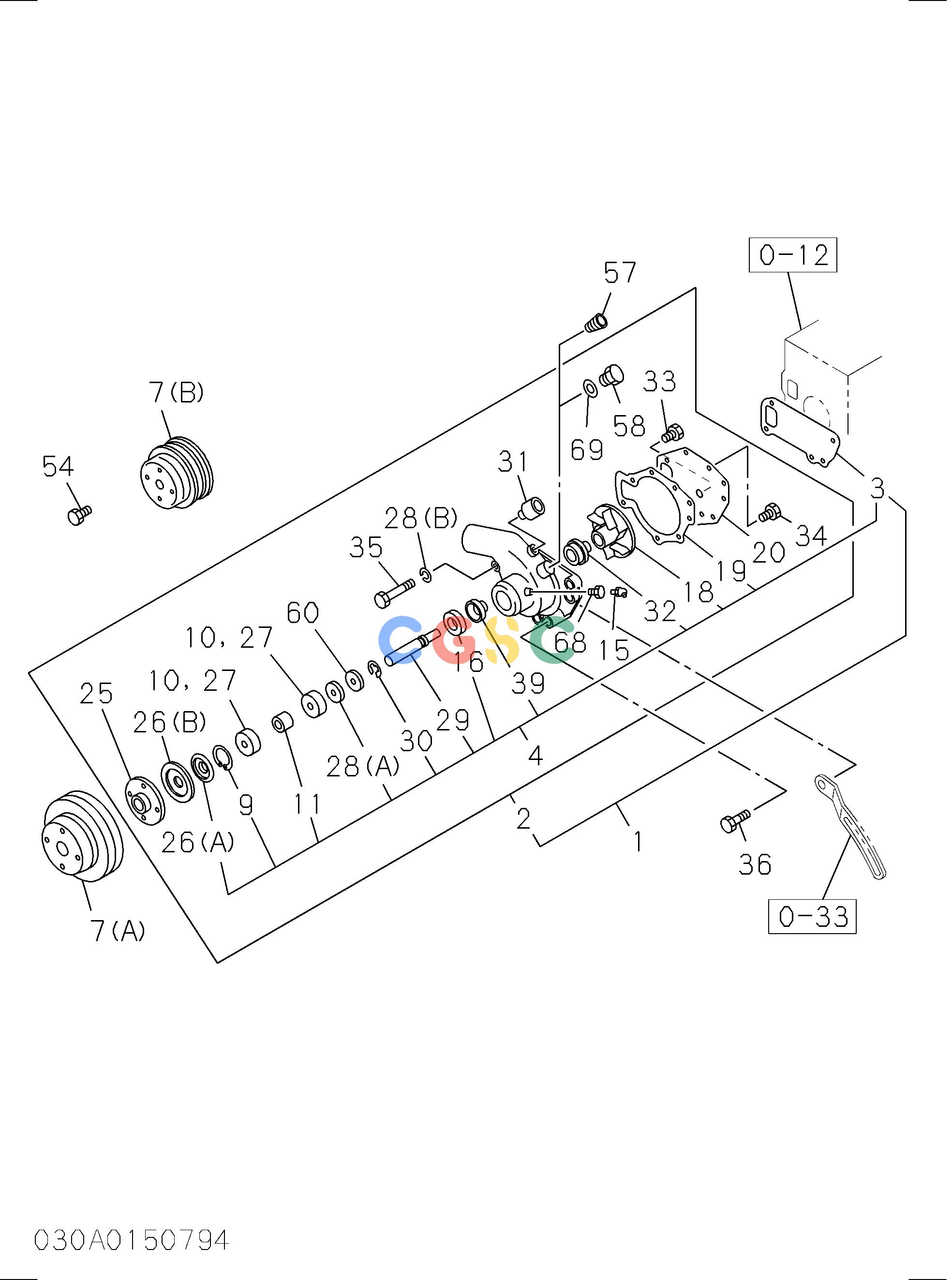

日立零件查询（BX70D）WATER PUMP AND CORROSION RESISTOR Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
209 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1136500200 | [1] | PUMP ASM; WATER,W/GASKET | |
| 3. | 9136140440 | [1] | GASKET; PUMP TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 4. | 1878109370 | [1] | REPAIR KIT; WATER PUMP | |
| 7(B). | 5136410381 | [1] | PULLEY; WATER PUMP | |
| 7(A). | 5136410171 | [1] | PULLEY; WATER PUMP | 2-GROOVE |
| 9. | 9091801520 | [1] | RING; SNAP,WATER PUMP | |
| 10. | 9000900590 | [1] | BEARING; WATER PUMP,FRT | |
| 10. | 9000901130 | [1] | BEARING; WATER PUMP,FRT | |
| 11. | 5136340020 | [1] | SPACER; BRG,WATER PUMP | |
| 15. | 9090311100 | [1] | NIPPLE; GREASE,WATER PUMP | |
| 16. | 1096255450 | [1] | SEAL; OIL,WATER PUMP | |
| 18. | 9136218020 | [1] | IMPELLER; WATER PUMP | |
| 19. | 9136136130 | [1] | GASKET; COVER TO BODY | |
| 20. | 1136120230 | [1] | COVER; WATER PUMP | |
| 25. | 1136420030 | [1] | CENTER; WATER PUMP | |
| 26(A). | 5136390010 | [1] | COVER; DUST,WATER PUMP | |
| 28(A). | 1095030700 | [1] | WASHER; WATER PUMP | |
| 29. | 1136310740 | [1] | SHAFT; WATER PUMP | |
| 30. | 9099521430 | [1] | RING; SNAP,WATER PUMP SHAFT | |
| 31. | 1096601192 | [1] | PIPE; SUCTION,INL | |
| 32. | 5136200061 | [1] | SEAL UNIT; WATER PUMP | |
| 34. | 9030908200 | [3] | SCREW; COVER TO BODY,WATER PUMP | |
| 36. | 0500410350 | [1] | BOLT; WATER PUMP TO C/BL | M10X35 W/LK WASHER |
| 36. | 0500410500 | [2] | BOLT; WATER PUMP TO C/BL | M10X50 W/LK WASHER |
| 36. | 5090300101 | [1] | BOLT; WATER PUMP TO C/BL | M10X75 W/LK WASHER |
| 54. | 0500408200 | [4] | BOLT; PULLEY | |
| 58. | 9992023200 | [1] | PLUG; HTR | |
| 68. | 9097020260 | [1] | ADAPTER; GREASE NIPPLE | |
| 69. | 9095714200 | [1] | GASKET; PLUG,HTR | |
