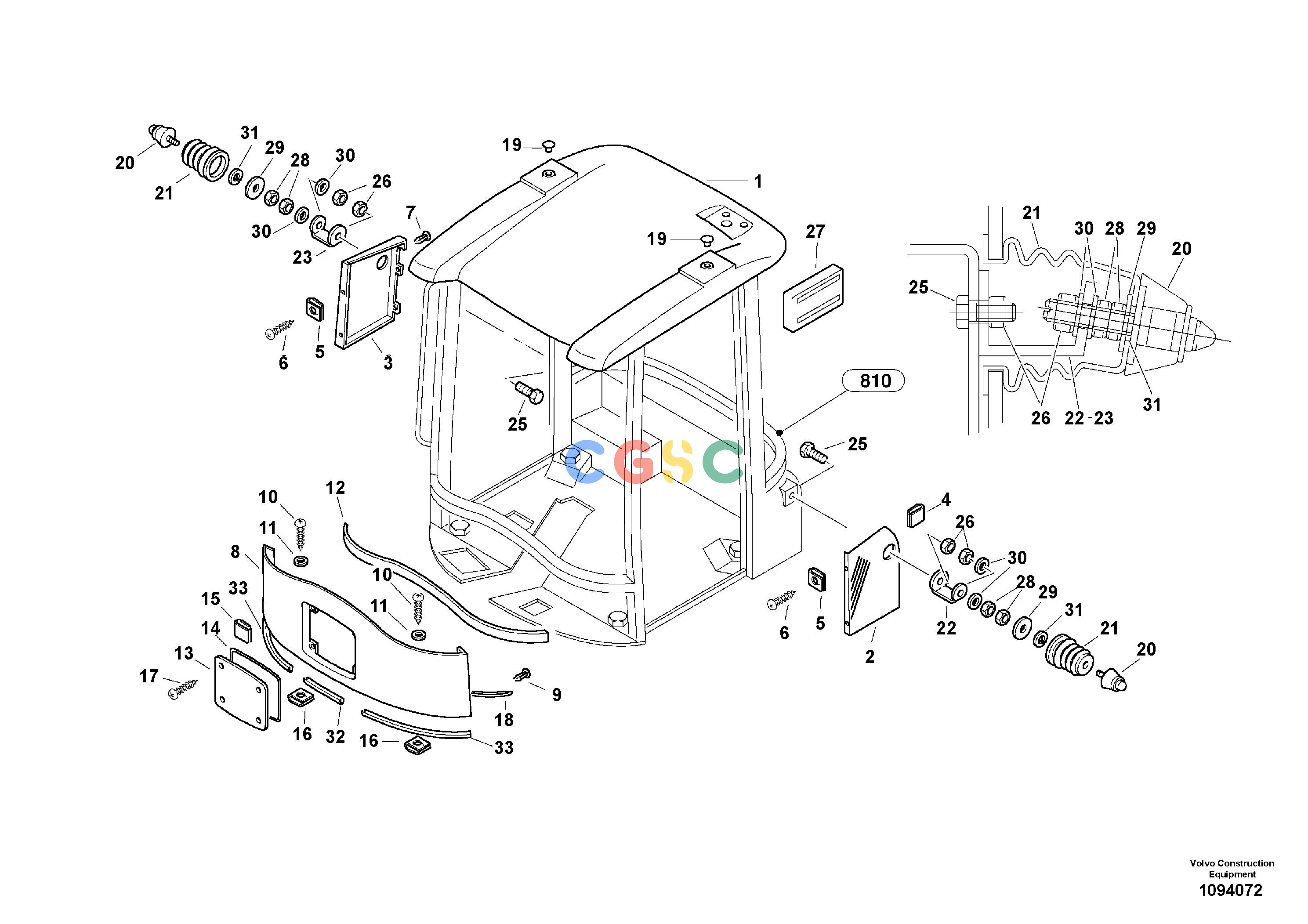

沃尔沃零件查询L40 Driver's cabinTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
172 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2907106
|
[1] |
Roof
|
|
| 10. |
VOE13955272
|
[4] |
Screw
|
M6x20
|
| 11. |
VOE955892
|
[4] |
Plain washer
|
B6,4
|
| 12. |
ZM2908993
|
[1] |
Sealing strip
|
|
| 13. |
ZM2907111
|
[1] |
Side Panel
|
|
| 14. |
ZM2907112
|
[REQ] |
Gasket
|
|
| 15. |
ZM2906716
|
[2] |
Clamp
|
|
| 16. |
ZM2906639
|
[2] |
Nut
|
|
| 17. |
ZM2907095
|
[2] |
Screw
|
4,2x20
|
| 18. |
ZM2907113
|
[2] |
Rubber profile
|
|
| 19. |
ZM2907114
|
[2] |
Plug
|
|
| 2. |
ZM2907107
|
[1] |
Casing rear, left
|
|
| 20. |
ZM2907119
|
[2] |
Locking Pin
|
|
| 21. |
ZM2907383
|
[2] |
Bellows
|
|
| 22. |
ZM2907384
|
[1] |
Angle
|
|
| 23. |
ZM2907385
|
[1] |
Angle
|
|
| 25. |
VOE983242
|
[2] |
Hexagon screw
|
M8x20
|
| 26. |
ZM5241125
|
[4] |
Nut
|
M8
|
| 27. |
ZM2906652
|
[1] |
Adhesive - Repair set
|
|
| 28. |
ZM7098010
|
[4] |
Nut
|
M8
|
| 29. |
VOE11307560
|
[2] |
Washer
|
B8,4
|
| 30. |
ZM7098750
|
[4] |
Washer
|
B 8,4
|
| 3. |
ZM2907108
|
[1] |
Cover
|
|
| 31. |
ZM7098303
|
[2] |
Spring Ring
|
8
|
| 32. |
ZM2908991
|
[1] |
Sealing moulding
|
|
| 33. |
ZM2908992
|
[2] |
Sealing moulding
|
|
| 4. |
ZM2906716
|
[2] |
Clamp
|
|
| 5. |
ZM2906639
|
[4] |
Nut
|
|
| 6. |
ZM2907095
|
[4] |
Screw
|
4,2x20
|
| 7. |
VOE2906710
|
[2] |
Rivet
|
|
| 8. |
ZM2907109
|
[1] |
Front panel
|
|
| 9. |
VOE2906710
|
[4] |
Rivet
|
|
