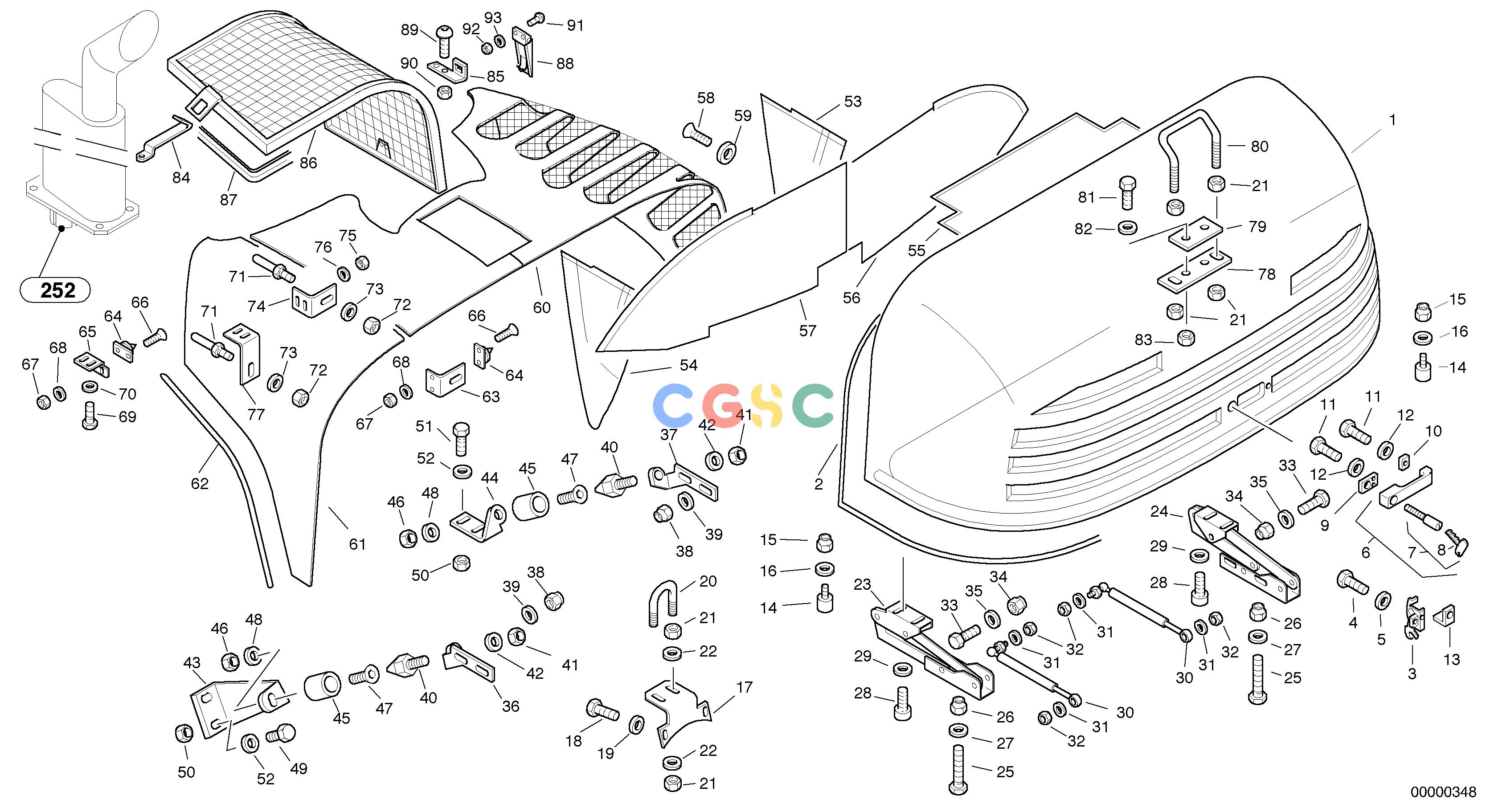

沃尔沃零件查询L40 Engine hoodTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2907660
|
[1] |
Engine hood
|
|
| 91. |
ZM2810326
|
[2] |
Screw
|
M5x16
|
| 92. |
VOE955780
|
[2] |
Hexagon nut
|
M5
|
| 93. |
ZM7099091
|
[2] |
Washer
|
B5,3
|
| 2. |
VOE11370553
|
[2] |
Sealing moulding
|
|
| 3. |
ZM2906643
|
[1] |
Lock
|
|
| 4. |
ZM8095500
|
[2] |
Screw
|
M8x12
|
| 5. |
ZM7098750
|
[2] |
Washer
|
B 8,4
|
| 6. |
ZM2906644
|
[1] |
Handle
|
|
| 7. |
ZM2906037
|
[1] |
Lock Cylinder
|
|
| 8. |
VOE14213581
|
[2] |
Key
|
|
| 9. |
ZM2906646
|
[2] |
Base
|
|
| 10. |
ZM2906645
|
[1] |
Base
|
|
| 11. |
VOE13955272
|
[3] |
Screw
|
M6x20
|
| 12. |
VOE955892
|
[3] |
Plain washer
|
B6,4
|
| 13. |
ZM2907344
|
[1] |
Connecting plate
|
|
| 14. |
ZM2907347
|
[2] |
Buffer
|
|
| 15. |
ZM5241125
|
[4] |
Nut
|
M8
|
| 16. |
ZM7098750
|
[2] |
Washer
|
B 8,4
|
| 17. |
ZM2813418
|
[1] |
Support
|
-1920026
|
| 18. |
VOE997446
|
[2] |
Hexagon screw
|
M12x30, -1920026
|
| 19. |
ZM4333064
|
[2] |
Washer
|
13, -1920026
|
| 20. |
ZM2904268
|
[1] |
Brace
|
-1920026
|
| 21. |
VOE983304
|
[4] |
Hexagon nut
|
M10
|
| 22. |
VOE930842
|
[4] |
Plain washer
|
10,5
|
| 23. |
ZM2812684
|
[1] |
Bonnet hinge
|
|
| 24. |
ZM2812685
|
[1] |
Bonnet hinge
|
|
| 25. |
ZM7094828
|
[4] |
Screw
|
M10x60
|
| 26. |
VOE14370970
|
[4] |
Lock nut
|
M10
|
| 27. |
VOE930842
|
[4] |
Plain washer
|
10,5
|
| 28. |
VOE984079
|
[4] |
Hex. socket screw
|
M10x25
|
| 29. |
VOE930842
|
[4] |
Plain washer
|
10,5
|
| 30. |
ZM2811584
|
[2] |
Gas spring
|
|
| 31. |
ZM7098750
|
[4] |
Washer
|
B 8,4
|
| 32. |
ZM4334182
|
[4] |
Nut
|
VM8
|
| 33. |
VOE983252
|
[4] |
Hexagon screw
|
|
| 34. |
VOE14370970
|
[4] |
Lock nut
|
M10
|
| 35. |
VOE930842
|
[4] |
Plain washer
|
10,5
|
| 36. |
ZM2813565
|
[1] |
Holder
|
|
| 37. |
ZM2813566
|
[1] |
Holder
|
|
| 38. |
ZM7098000
|
[4] |
Nut
|
M6
|
| 39. |
ZM4333068
|
[4] |
Washer
|
|
| 40. |
ZM2813283
|
[2] |
Bolt
|
|
| 41. |
ZM7098010
|
[2] |
Nut
|
M8
|
| 42. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 43. |
ZM2813564
|
[1] |
Bracket
|
|
| 44. |
ZM2813567
|
[1] |
Bracket
|
|
| 45. |
ZM2810946
|
[3] |
Sliding sleeve
|
|
| 46. |
ZM7098000
|
[2] |
Nut
|
M6
|
| 47. |
VOE969817
|
[3] |
Six point socket screw
|
M6x20
|
| 48. |
ZM4333068
|
[2] |
Washer
|
|
| 49. |
VOE983243
|
[2] |
Hexagon screw
|
M8x25
|
| 50. |
ZM7098010
|
[4] |
Nut
|
M8
|
| 51. |
VOE983242
|
[2] |
Hexagon screw
|
M8x20
|
| 52. |
VOE11305837
|
[4] |
Washer
|
B 8,4
|
| 53. |
ZM2907652
|
[1] |
Insulating
|
|
| 54. |
ZM2907653
|
[1] |
Insulation
|
|
| 55. |
ZM2907654
|
[1] |
Insulator
|
|
| 56. |
ZM2907655
|
[1] |
Insulator
|
|
| 57. |
ZM2907656
|
[1] |
Insulator
|
|
| 58. |
ZM2907657
|
[20] |
Screw
|
|
| 59. |
ZM2907658
|
[20] |
Washer
|
|
| 60. |
ZM2816011
|
[1] |
Cover
|
|
| 61. |
ZM2907651
|
[1] |
Maintenance flap
|
|
| 62. |
VOE11370553
|
[1] |
Sealing moulding
|
|
| 63. |
ZM2813547
|
[1] |
Holder
|
|
| 64. |
ZM2812681
|
[2] |
Door retainer
|
|
| 65. |
ZM2812864
|
[1] |
Bracket
|
|
| 66. |
ZM2289003
|
[4] |
Screw
|
M5x16
|
| 67. |
VOE955780
|
[4] |
Hexagon nut
|
M5
|
| 68. |
ZM2802430
|
[4] |
Washer
|
2,0 mm
|
| 69. |
VOE13955247
|
[2] |
Screw
|
M5x20
|
| 70. |
ZM2802430
|
[2] |
Washer
|
2,0 mm
|
| 71. |
ZM2813399
|
[2] |
Bolt
|
|
| 72. |
VOE983304
|
[2] |
Hexagon nut
|
M10
|
| 73. |
VOE930842
|
[2] |
Plain washer
|
10,5
|
| 74. |
ZM2813401
|
[1] |
Bracket
|
|
| 75. |
ZM7098000
|
[2] |
Nut
|
M6
|
| 76. |
ZM4333068
|
[2] |
Washer
|
|
| 77. |
ZM2813400
|
[1] |
Bracket
|
|
| 78. |
ZM2813616
|
[1] |
Retainer
|
1910002-/1920027-
|
| 79. |
VOE16604872
|
[1] |
Clamping plate
|
1910002-/1920027-
|
| 80. |
ZM2813618
|
[1] |
Stop
|
1910002-/1920027-
|
| 81. |
VOE11305305
|
[2] |
Hexagon screw
|
M10x50, 1910002-/1920027-
|
| 82. |
VOE930842
|
[2] |
Plain washer
|
10,5
|
| 83. |
VOE983304
|
[2] |
Hexagon nut
|
M10
|
| 84. |
ZM2814380
|
[1] |
Retainer
|
|
| 85. |
ZM2814381
|
[1] |
Retainer
|
|
| 86. |
ZM2814421
|
[1] |
Grille
|
|
| 87. |
ZM4398308
|
[1] |
Profile
|
L = 3500MM
|
| 88. |
VOE11307608
|
[1] |
Retaining clamp
|
|
| 89. |
ZM2810334
|
[2] |
Screw
|
M10x25
|
| 90. |
ZM7098002
|
[2] |
Nut
|
M10
|
