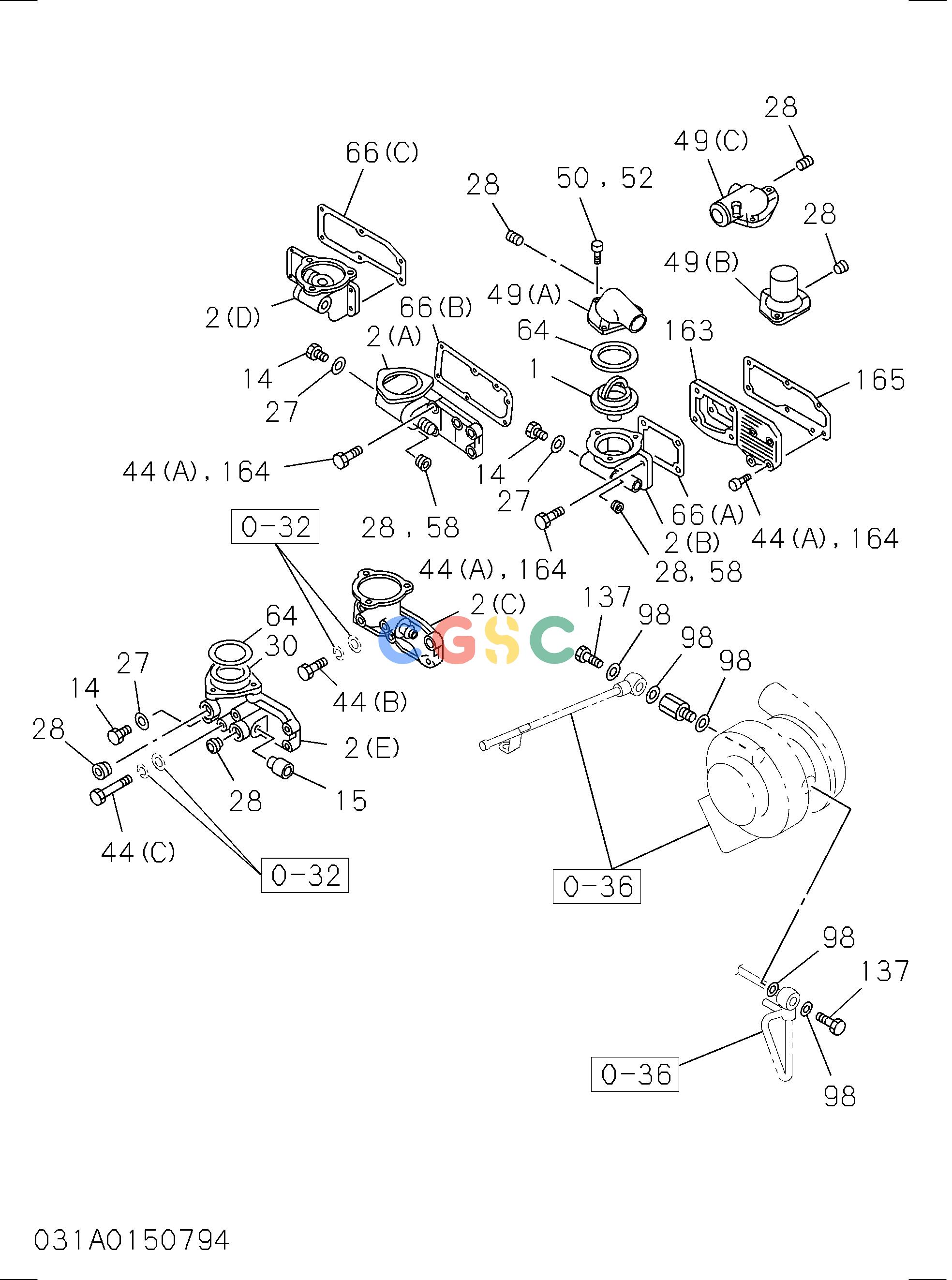

日立零件查询（BX70D）THERMOSTAT AND HOUSING Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
651 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1137700700 | [1] | THERMOSTAT | |
| 2(A). | 8944707081 | [1] | HOUSING; THERMOSTAT | |
| 14. | 9096610050 | [1] | PLUG; SW | |
| 27. | 9095714160 | [1] | GASKET; SW | |
| 28. | 5096050050 | [1] | PLUG; HTR | |
| 44(A). | 0501410280 | [2] | BOLT; HSG TO HD | |
| 49(B). | 1137130370 | [1] | PIPE; WATER OUTLET | |
| 50. | 0500408250 | [3] | BOLT; OUTLET PIPE | |
| 64. | 1137430160 | [1] | GASKET; OUTLET PIPE TO HSG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 66(B). | 1137410100 | [1] | GASKET; THERMOSTAT HSG | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
