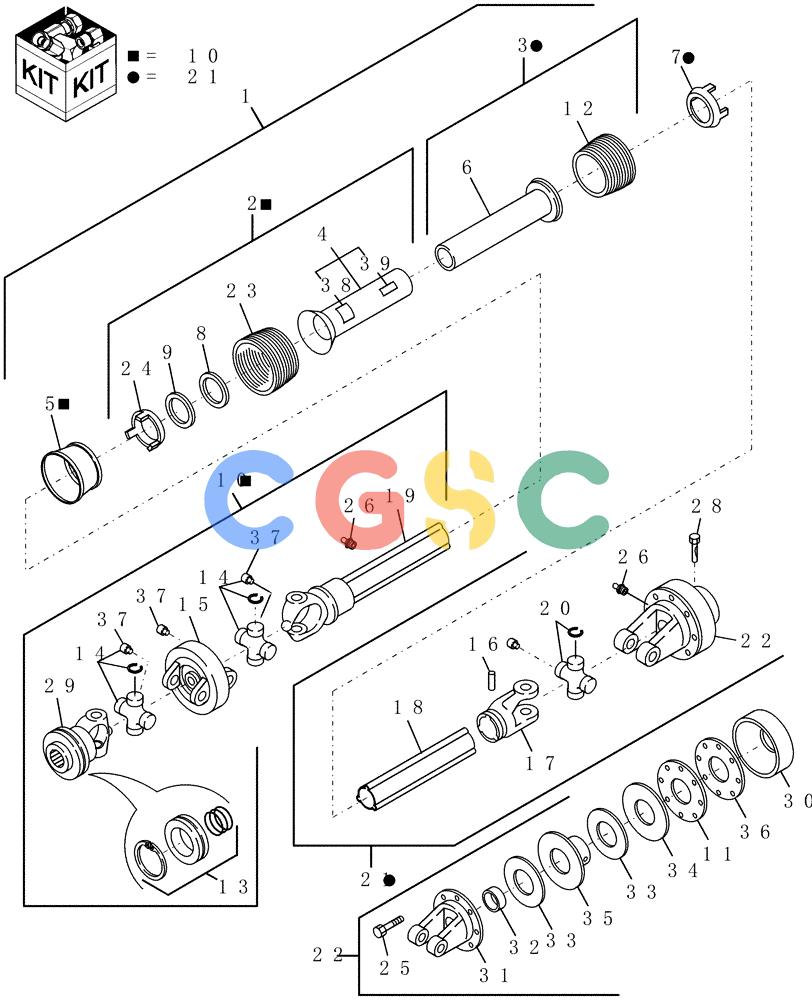

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (007) - POWER TAKE OFF, 540 RPM, W/ SLIP CLUTCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
247 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Power Take Off, 540 RPM W/ Slip Clutch {86616327}
|
| 2. |
86625858
|
[1] |
KIT
|
NH
Superseded by part number: 87552892
|
| 3. |
86625859
|
[1] |
KIT
|
NH
Superseded by part number: 87552892
|
| 7. |
86625852
|
[1] |
RING NUT
|
NH
|
| 8. |
86625851
|
[1] |
RING NUT
|
NH
|
| 10. |
86625856
|
[1] |
PTO SHAFT
|
NH
|
| 11. |
86625868
|
[1] |
SPRING
|
NH
|
| 13. |
86625855
|
[1] |
KIT
|
NH
Superseded by part number: 87461438
|
| 14. |
86625850
|
[2] |
U-JOINT SPIDER
|
NH
|
| 15. |
86625844
|
[1] |
BODY
|
NH
|
| 16. |
86625846
|
[1] |
PIN
|
NH
Superseded by part number: 87586150
|
| 17. |
86625848
|
[1] |
YOKE
|
NH
|
| 18. |
86625845
|
[1] |
TUBE,962 mm L
|
NH
|
| 19. |
86625847
|
[1] |
TUBE,967.50 mm L
|
NH
|
| 20. |
86625842
|
[1] |
BEARING ASSY
|
NH
Superseded by part number: 87018246
|
| 21. |
86625872
|
[1] |
JOINT
|
NH
W/ Clutch
|
| 22. |
86625849
|
[1] |
PTO CLUTCH
|
NH
|
| 24. |
86625854
|
[1] |
RING NUT
|
NH
|
| 28. |
86625865
|
[1] |
KIT
|
NH
Tapered
|
| 29. |
86625841
|
[1] |
YOKE
|
NH
|
| 30. |
86625869
|
[1] |
SPACER
|
NH
|
| 31. |
86625860
|
[1] |
CLUTCH PLATE
|
NH
Superseded by part number: 86625849, 86625849, 87012732
|
| 32. |
86625861
|
[1] |
BUSHING
|
NH
Superseded by part number: 84026575
|
| 33. |
86625862
|
[2] |
DISC
|
NH
Superseded by part number: 86517364
|
| 34. |
86625863
|
[1] |
THRUST PLATE
|
NH
|
| 35. |
86625864
|
[1] |
HUB
|
NH
|
| 36. |
86625867
|
[1] |
SPRING
|
NH
Superseded by part number: 87587223
|
| 37. |
321204
|
[4] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 38. |
849471
|
[1] |
DANGER DECAL
|
NH
English
|
| 38. |
849482
|
[1] |
DANGER DECAL
|
NH
French
|
| 39. |
849472
|
[1] |
DANGER DECAL
|
NH
English
|
| 39. |
849483
|
[1] |
DANGER DECAL
|
NH
English
|
