沃尔沃零件查询L40 Front mudguardTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
966 次

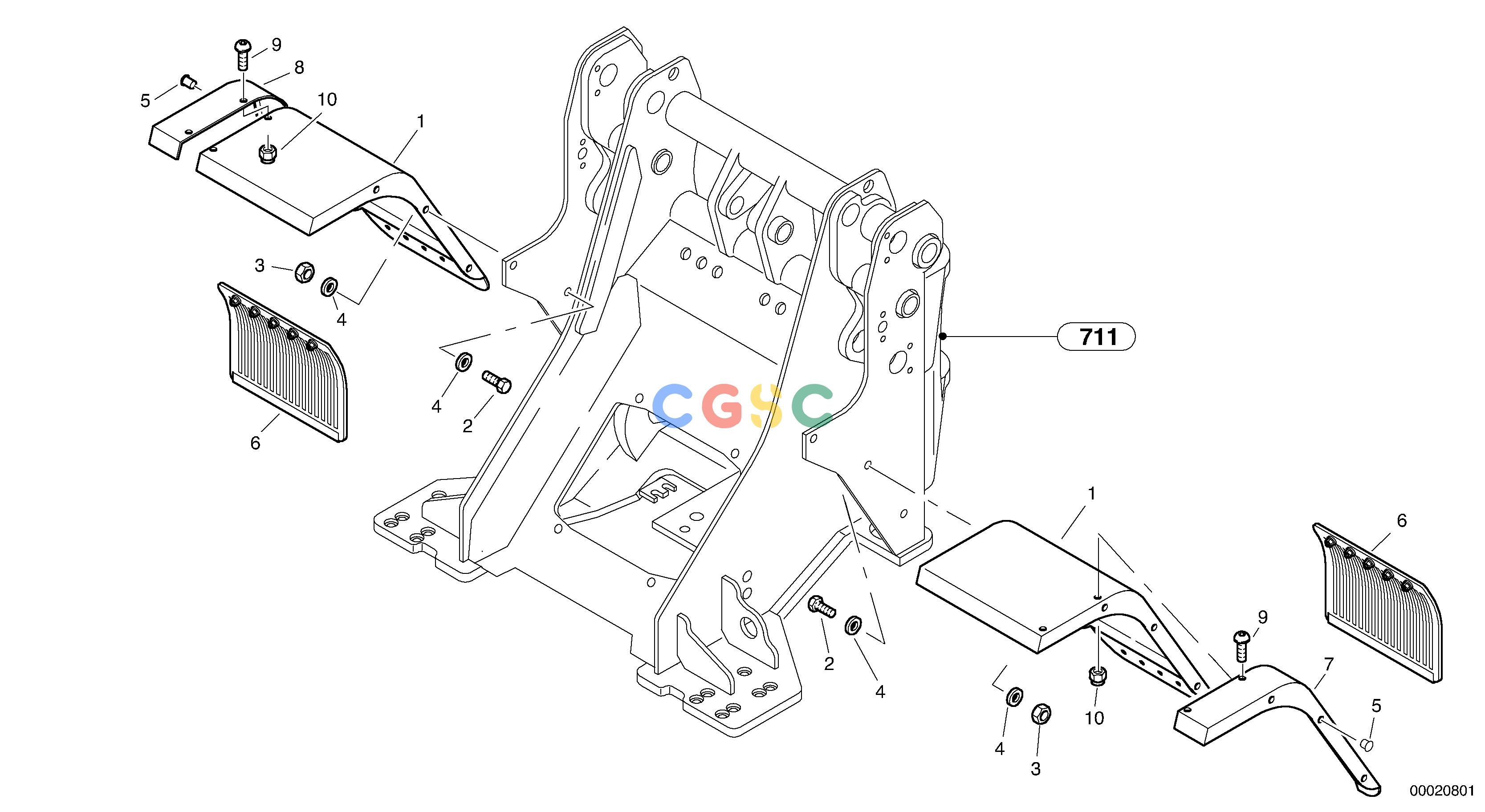

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2814257
|
[2] |
Mudguard
|
|
| 10. |
VOE14370970
|
[10] |
Lock nut
|
M10, SPECIAL
|
| 2. |
VOE983251
|
[6] |
Hexagon screw
|
M10x25
|
| 3. |
ZM7098002
|
[6] |
Nut
|
M10
|
| 4. |
VOE930842
|
[6] |
Plain washer
|
10,5
|
| 5. |
VOE11306518
|
[6] |
Plug
|
|
| 6. |
ZM2813960
|
[2] |
Mudflap
|
|
| 7. |
ZM2815173
|
[1] |
Fender flare
|
SPECIAL
|
| 8. |
ZM2815174
|
[1] |
Fender Ext
|
SPECIAL
|
| 9. |
ZM2810334
|
[10] |
Screw
|
M10x25, SPECIAL
|
