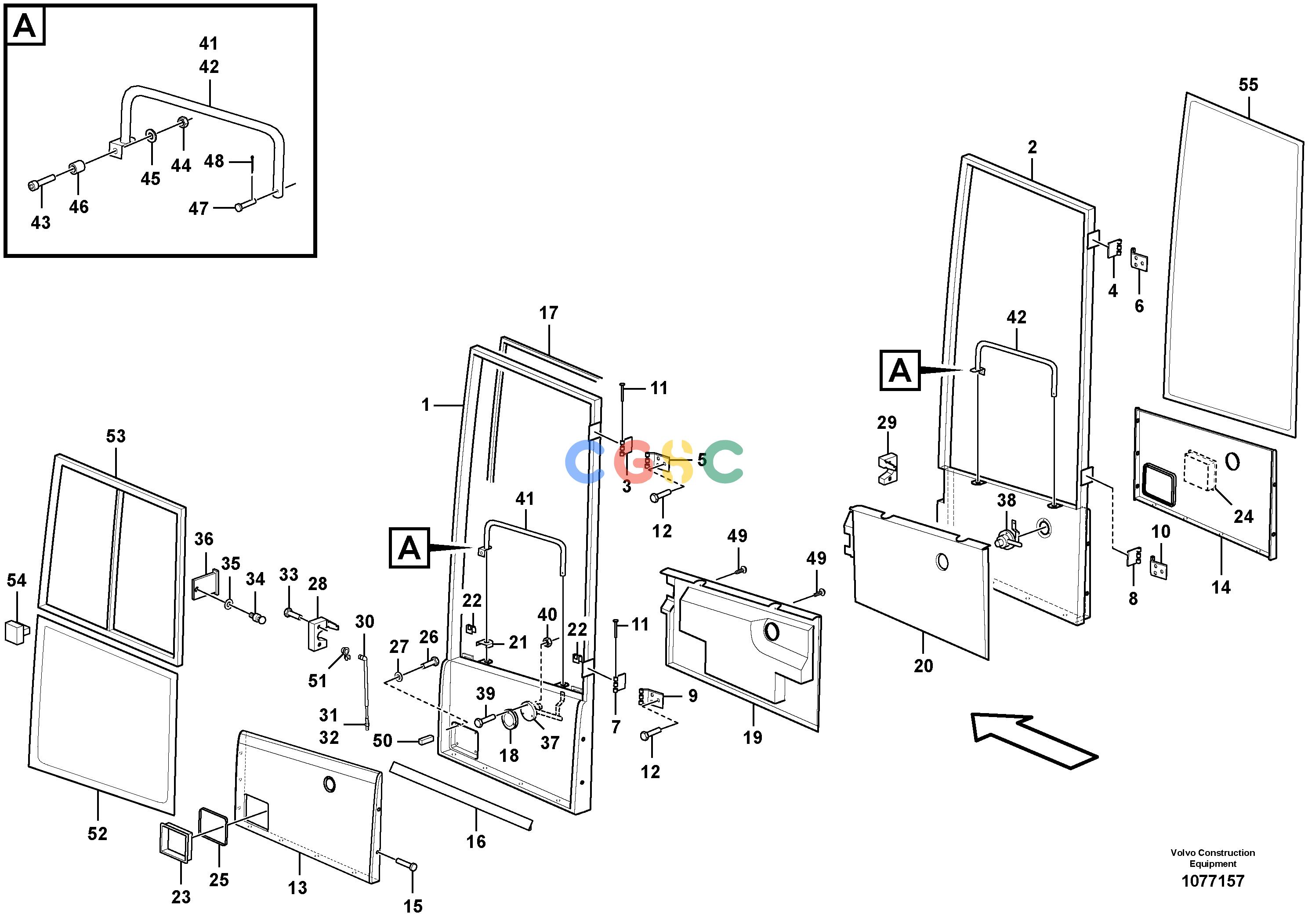

沃尔沃零件查询L40 DoorsTYPE 191, 192 SER NO - 1000LH 1910001-, 1920001--RH 1910001-, 1920001-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
639 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
ZM2812241
|
[1] |
Door
|
|
| |
ZM2812242
|
|
Door
|
|
| 1. |
ZM2906708
|
[1] |
Door frame
|
|
| 2. |
ZM2906741
|
|
Door frame
|
|
| 3. |
ZM2906725
|
[1] |
Hinge
|
|
| 4. |
ZM2906733
|
|
Hinge
|
|
| 5. |
ZM2906726
|
[1] |
Hinge
|
|
| 6. |
ZM2906734
|
|
Hinge
|
|
| 7. |
ZM2906727
|
[1] |
Hinge
|
|
| 8. |
ZM2906735
|
|
Hinge
|
|
| 9. |
ZM2906728
|
[1] |
Hinge
|
|
| 10. |
ZM2906736
|
|
Hinge
|
|
| 11. |
ZM2906724
|
[2] |
Hinge Pin
|
|
| 12. |
ZM2810330
|
[6] |
Screw
|
|
| 13. |
ZM2906709
|
[1] |
Cover
|
|
| 14. |
ZM2906729
|
|
Casing outside, right
|
|
| 15. |
VOE2906710
|
[9] |
Rivet
|
|
| 16. |
ZM2906711
|
[1] |
Profile
|
|
| 17. |
VOE11370878
|
[1] |
Door profile
|
|
| 18. |
ZM2906713
|
[1] |
Gasket
|
|
| 19. |
ZM2906714
|
[1] |
Cover Panel
|
|
| 20. |
ZM2906730
|
|
Cover
|
|
| 21. |
ZM2906715
|
[2] |
Collar
|
|
| 22. |
ZM2906716
|
[3] |
Clamp
|
|
| 23. |
ZM2906742
|
[1] |
Door handle
|
|
| 24. |
ZM2906717
|
|
Door Handle
|
|
| 25. |
ZM2906718
|
[1] |
Base
|
|
| 26. |
VOE955269
|
[4] |
Hexagon screw
|
|
| 27. |
VOE955892
|
[4] |
Plain washer
|
|
| 28. |
ZM2906720
|
[1] |
Lock
|
|
| 29. |
ZM2906731
|
|
Lock
|
|
| 30. |
ZM2906719
|
[1] |
Connecting Rod
|
|
| 31. |
ZM2289705
|
[1] |
Nut
|
|
| 32. |
VOE955891
|
[1] |
Plain washer
|
|
| 33. |
ZM7096467
|
[2] |
Screw
|
|
| 34. |
ZM4378130
|
[1] |
Locking pin
|
|
| 35. |
ZM2906721
|
[1] |
Washer
|
|
| 36. |
ZM2906722
|
[1] |
Mounting Plate
|
|
| 37. |
ZM2906723
|
[1] |
Door Catch
|
|
| 38. |
ZM2906732
|
|
Door Catch
|
|
| 39. |
VOE13955272
|
[3] |
Screw
|
|
| 40. |
ZM7098422
|
[3] |
Nut
|
|
| 41. |
ZM2906737
|
[1] |
Railing, left
|
|
| 42. |
ZM2906738
|
|
Hand Rail
|
|
| 43. |
VOE13955272
|
[1] |
Screw
|
|
| 44. |
ZM7098422
|
[1] |
Nut
|
|
| 45. |
ZM2906739
|
[1] |
Washer
|
|
| 46. |
ZM2906740
|
[1] |
Sleeve
|
|
| 47. |
ZM8090073
|
[1] |
Pin
|
|
| 48. |
ZM7098855
|
[1] |
Cotter Pin
|
|
| 49. |
ZM2907657
|
[0002] |
Screw
|
|
| 50. |
ZM2908992
|
[1] |
Sealing moulding
|
|
| 51. |
ZM2907835
|
[1] |
Retainer
|
|
| 52. |
ZM2906703
|
[1] |
Glass
|
|
| 53. |
ZM2906704
|
[1] |
Sliding window
|
|
| 54. |
ZM2906705
|
[1] |
Lever
|
|
| 55. |
ZM2906707
|
|
Door window pane
|
|
