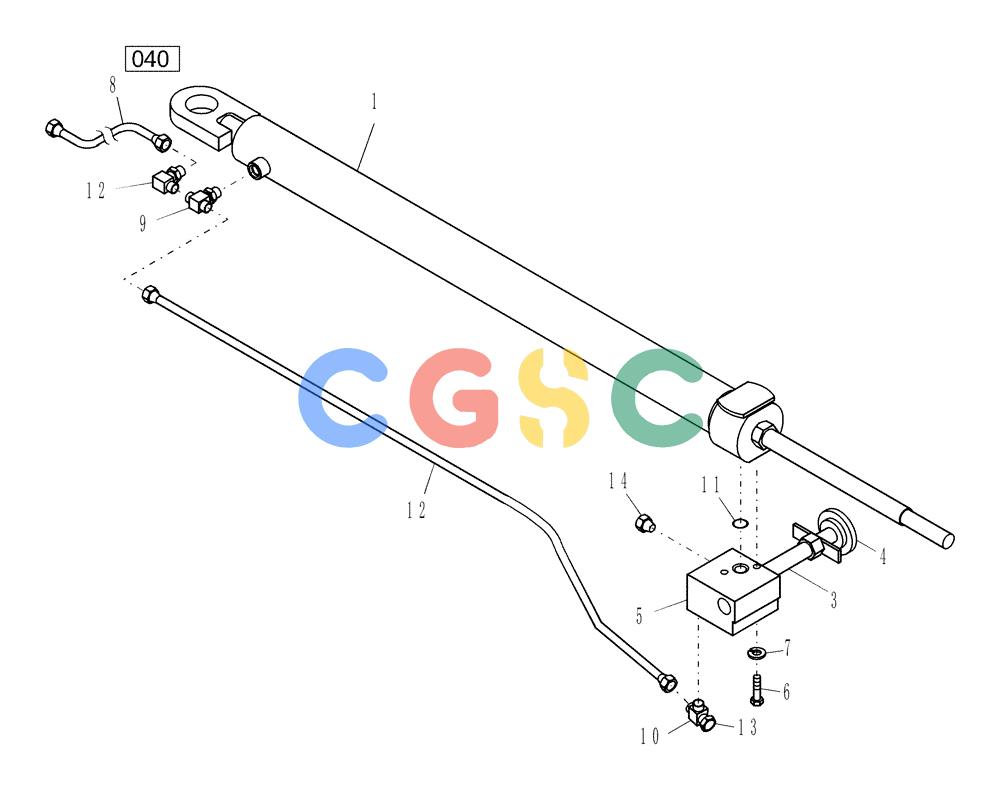

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (041) - HYDRAULICS, BALE TENSION Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86637315
|
[1] |
CYLINDER
|
NH
Hydraulic, Bale Tension, Serial Range: Refer-Fig.042 Superseded by part number: 87347263
|
| 2. |
86605282
|
[1] |
TUBE,0.375" OD x 28.83", 4.18" L
|
NH
|
| 3. |
86520937
|
[1] |
VALVE PRESSURE RELIE
|
NH
|
| 4. |
86505699
|
[1] |
KNOB
|
NH
Superseded by part number: 87035505
|
| 5. |
86601286
|
[1] |
EXCHANGE VALVE PLATE
|
NH
Superseded by part number: 47583126
|
| 6. |
413-540
|
[2] |
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 72187202, 88346
|
| 7. |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| 8. |
9847200
|
[1] |
HOSE,6.35mm ID x 2184.4mm L, SAE 100R1
|
NH
|
| 9. |
218-5182
|
[1] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
-6, 37-Or Br Superseded by part number: 163335
|
| 11. |
238-5016
|
[1] |
O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro
|
CAS
Superseded by part number: 128359
|
| 12. |
218-980
|
[1] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
|
CAS
Superseded by part number: 72186136, 86629586
|
| 13. |
218-754
|
[1] |
CAP,37 Degree, 9/16"-18
|
CAS
6, Hex Superseded by part number: 574342
|
| 14. |
76349
|
[1] |
PLUG,9/16" - 18 ORB
|
NH
|
