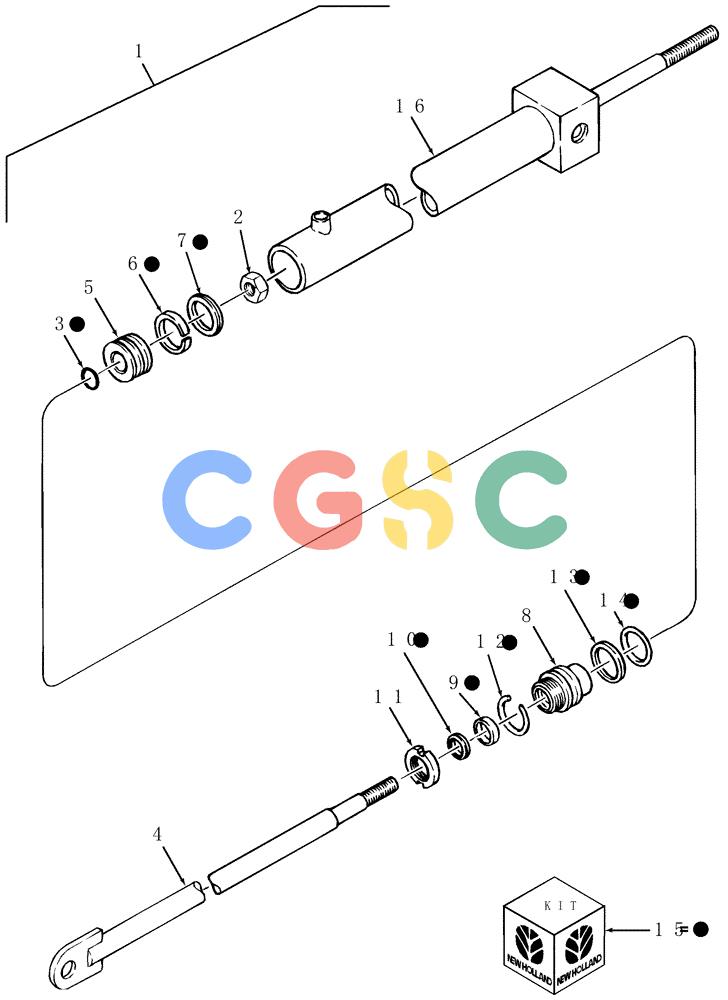

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (042) - HYDRAULIC CYLINDER, BALE TENSION Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
939 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86637315
|
[1] |
CYLINDER
|
NH
Hydraulic, Bale Tension Superseded by part number: 87347263
|
| 2. |
9602227
|
[1] |
LOCK NUT,5/8"-18, GC
|
NH
Superseded by part number: 232-46410
|
| 3. |
238-5016
|
[1] |
O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro
|
CAS
Superseded by part number: 128359
|
| 4. |
86518722
|
[1] |
ROD
|
NH
Superseded by part number: 47583115
|
| 5. |
786002
|
[1] |
PISTON
|
NH
Superseded by part number: 87026540
|
| 6. |
771705
|
[1] |
RING
|
NH
Wear, 2.004" ID x .50" Thick
|
| 7. |
86553483
|
[1] |
SEAL
|
NH
3 Piece, Piston
|
| 8. |
86520002
|
[1] |
CYLINDER HEAD
|
NH
|
| 9. |
9616363
|
[1] |
SEAL,25.4mm ID x 31.5mm OD x 6.35mm Thk
|
NH
|
| 10. |
121189
|
[1] |
OIL SEAL
|
NH
Wiper, 1-1/4" OD x 1/8" Thick
|
| 11. |
86634531
|
[1] |
BEARING LOCK NUT
|
NH
Bearing, 1-3/4"-16
|
| 12. |
512016
|
[1] |
SNAP RING
|
NH
Int, 2.125"
|
| 13. |
511297
|
[1] |
SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk
|
NH
1.638" ID x .064" Thick
|
| 14. |
238-5326
|
[1] |
O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro
|
NH
Superseded by part number: 104258
|
| 15. |
86605351
|
[1] |
SEAL KIT
|
NH
|
| 16. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Barrel
|
