日立零件查询（BX70D）FUEL INJECTION SYSTEM Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
967 次

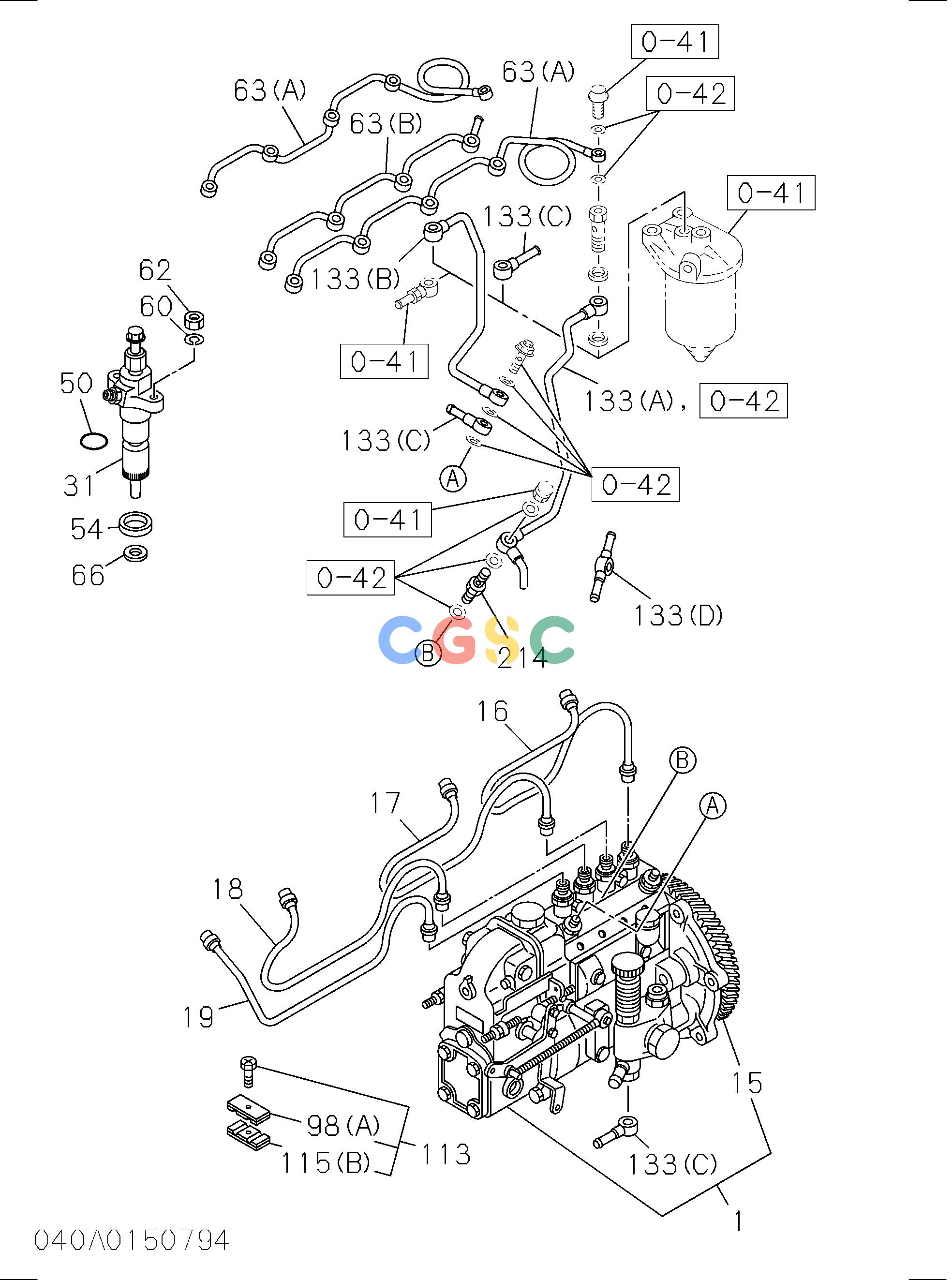

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8944707121 | [1] | PUMP ASM; INJ | SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. |
| 15. | 8943359000 | [1] | COUPLING ASM; INJ PUMP | SEE FIG-NO 0-87 FOR COMPONENT. |
| 16. | 8944636740 | [1] | PIPE; INJ NO 1 | |
| 17. | 8944636750 | [1] | PIPE; INJ NO 2 | |
| 18. | 8944636760 | [1] | PIPE; INJ NO 3 | |
| 19. | 8944636770 | [1] | PIPE; INJ NO 4 | |
| 31. | 5153001032 | [4] | NOZZLE ASM; INJ | |
| 32(A). | 1153300941 | [4] | HOLDER ASM; NOZZLE | |
| 33. | 5153110190 | [4] | NOZZLE; INJ | |
| 34. | 1153390090 | [4] | BOLT; EYE,NOZZLE HOLDER | |
| 35. | 1153320170 | [4] | NUT; NOZZLE RET,NOZZLE HOLDER | |
| 36. | 1096300820 | [8] | GASKET; RETURN PIPE,NOZZLE HOLDER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 37. | 5153320100 | [4] | NUT; CAP,NOZZLE HOLDER | |
| 38. | 9153390570 | [4] | GASKET; CAP NUT,NOZZLE HOLDER | |
| 39. | 5153450010 | [4] | SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER | |
| 41. | 5153510010 | [4] | CONNECTOR; FUEL INL,NOZZLE HOLDER | |
| 42. | 5513390030 | [4] | GASKET; INL CONNECTOR,NOZZLE HOLDER | |
| 44. | 9153430130 | [4] | SPRING; NOZZLE,NOZZLE HOLDER | |
| 45. | 5153410010 | [4] | ROD; PUSH,NOZZLE HOLDER | |
| 46. | 9153470030 | [8] | PIN; NOZZLE SET,NOZZLE HOLDER | |
| 54. | 9153390510 | [4] | COVER; DUST,NOZZLE HOLDER | |
| 60. | 9091505080 | [8] | WASHER; LK,NOZZLE HOLDER | |
| 62. | 9091104080 | [8] | NUT; NOZZLE HOLDER | |
| 63(A). | 5154110420 | [1] | PIPE; FUEL,NOZZLE LEAK OFF | |
| 66. | 5153150030 | [4] | GASKET; INJ NOZZLE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 75. | 9091605100 | [1] | WASHER; PL,BRKT TO INJ PUMP | |
| 80(A). | 5197510150 | [1] | BRACKET; PUMP | |
| 82. | 9091505100 | [1] | WASHER; LK,BRKT TO C/BL | |
| 84. | 9091105100 | [1] | NUT; BRKT TO BRKT | |
| 87. | 0500410200 | [2] | BOLT; PUMP | M10X20 W/LK WASHER |
| 87. | 0280810200 | [2] | BOLT; PUMP | M10X20 FLANGE |
| 98(A). | 9154196130 | [3] | CLIP; "A",INJ PIPE | |
| 113. | 5154190131 | [3] | CLIP; INJ PIPE | |
| 115(B). | 9154196140 | [3] | CLIP; "B",INJ PIPE | |
| 133(A). | 5154118150 | [1] | PIPE; INJ NOZZLE LEAK OFF | |
| 139. | 9153390570 | [4] | WASHER; NOZZLE SPRING,NOZZLE HOLDER | |
