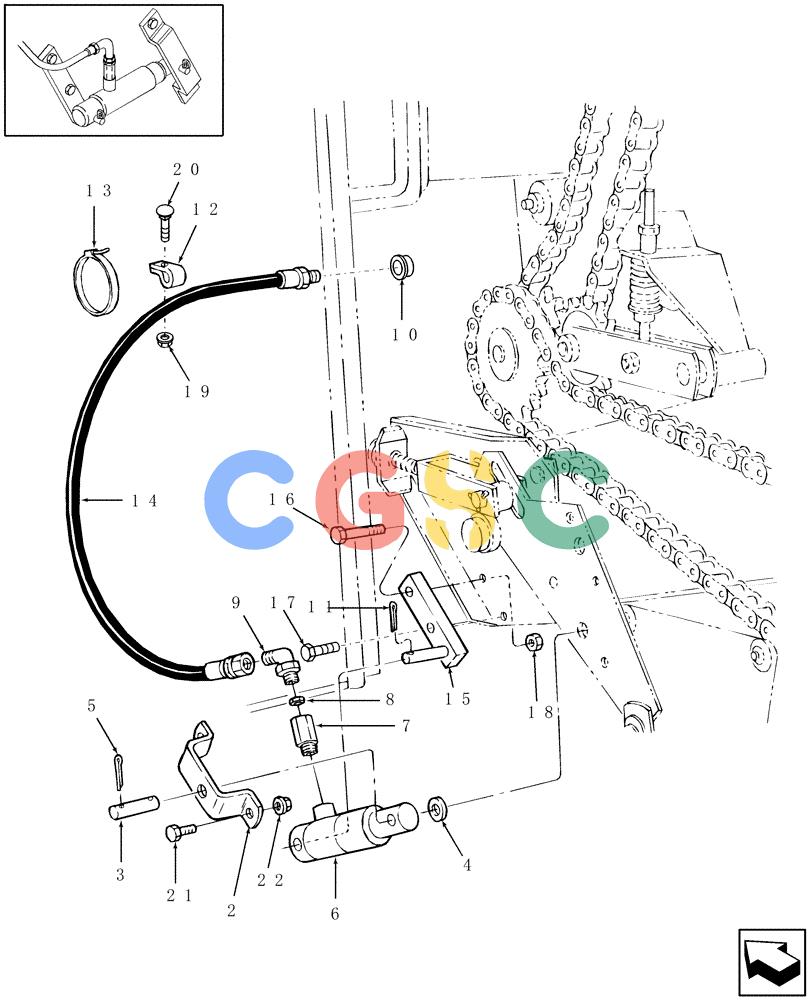

| 2. |
9829485
|
[1] |
SUPPORT
|
NH
|
| 3. |
142823
|
[1] |
CLEVIS PIN
|
NH
5/8" x 2-5/16"
|
| 4. |
495-11066
|
[1] |
WASHER,5/8", SAE
|
CAS
Superseded by part number: 87365
|
| 5. |
432-820
|
[1] |
COTTER PIN,1/8" x 1 1/4"
|
CAS
Superseded by part number: 87395, 87778232
|
| 6. |
849372
|
[2] |
CYLINDER
|
NH
Pickup Lift, Refer to Fig. 045 Superseded by part number: 47577002
|
| 6. |
87018193
|
[2] |
HYDRAULIC CYLINDER
|
RAC
Pickup Lift, Refer to Fig. 045 Superseded by part number: 47577002
|
| 7. |
86504974
|
[1] |
HYD CONNECTOR
|
NH
Includes: 237-6006 O-Ring
|
| 8. |
261066
|
[1] |
ORIFICE,9/16" - 18, 0.813" Orifice
|
NH
.032"
|
| 9. |
218-5105
|
[1] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
90°, Male 37° FL - Male, Includes: O-Ring, 3/8" Tube Superseded by part number: 76344, 72186128
|
| 10. |
116070
|
[1] |
CAP
|
NH
|
| 11. |
432-816
|
[1] |
COTTER PIN,1/8" x 1"
|
CAS
Superseded by part number: 80755
|
| 12. |
9706732
|
[3] |
CLAMP,19mm ID, 8.7mm Bolt Hole, P Type
|
NH
Superseded by part number: 86637976
|
| 13. |
263117
|
[4] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 14. |
795480
|
[1] |
FLEXIBLE HOSE,0.38" ID x 184.00", SAE 100R1
|
NH
|
| 15. |
9843116
|
[1] |
BLOCK
|
NH
|
| 16. |
814-10040
|
[1] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120112
|
| 17. |
814-10050
|
[1] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 18. |
825-51410
|
[2] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 19. |
825-5148
|
[1] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 20. |
811-8020
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 21. |
614-8020
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm
|
CAS
Superseded by part number: 120104
|
| . . |
237-6006
|
[1] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
CAS
Superseded by part number: 9617873
|
