凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (043[2]) - HYDRAULIC CYLINDER, TAILGATE LIFT, 87019624 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
436 次

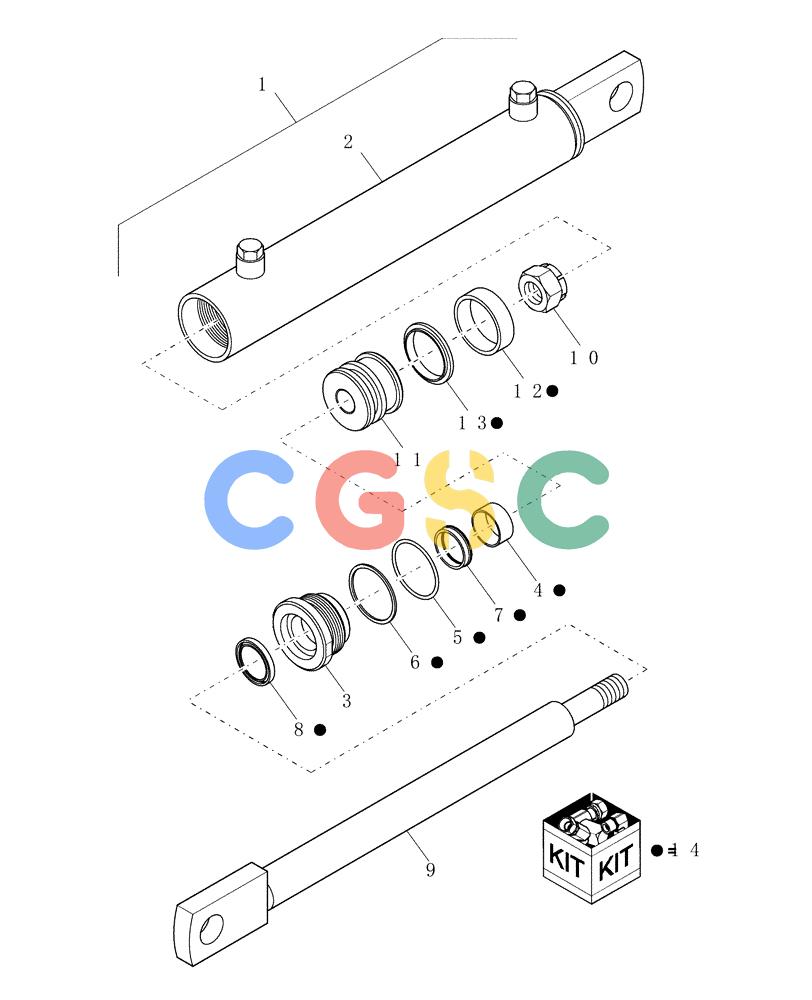

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87019624
|
[1] |
CYLINDER ASSY.,Double Acting, 31.75mm Rod, 685.8mm Stroke
|
PA
Hydraulic, Tailgate Lift
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Cylinder Barrel
|
| 3. |
87025449
|
[1] |
HEAD
|
PA
|
| 4. |
9843627
|
[1] |
WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk
|
NH
Wear, 1.250" ID x .50" Thick
|
| 5. |
238-6224
|
[1] |
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
|
CAS
Superseded by part number: 235782
|
| 6. |
270103
|
[1] |
BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk
|
NH
Backup, 1.772" ID x .043" Thk
|
| 7. |
86513307
|
[1] |
SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk
|
NH
1.250" ID x 1.500" OD
|
| 8. |
529340
|
[1] |
SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk
|
NH
Rod Wiper
|
| 9. |
87025447
|
[1] |
PISTON ROD
|
PA
|
| 10. |
280724
|
[1] |
LOCK NUT,3/4" - 16
|
NH
|
| 11. |
87025448
|
[1] |
PISTON
|
PA
|
| 12. |
771705
|
[1] |
RING
|
NH
Wear, 2.004" ID x .50" Thick
|
| 13. |
86553483
|
[1] |
SEAL
|
NH
3 Piece, Piston
|
| 14. |
87025443
|
[1] |
SEAL KIT
|
PA
|
