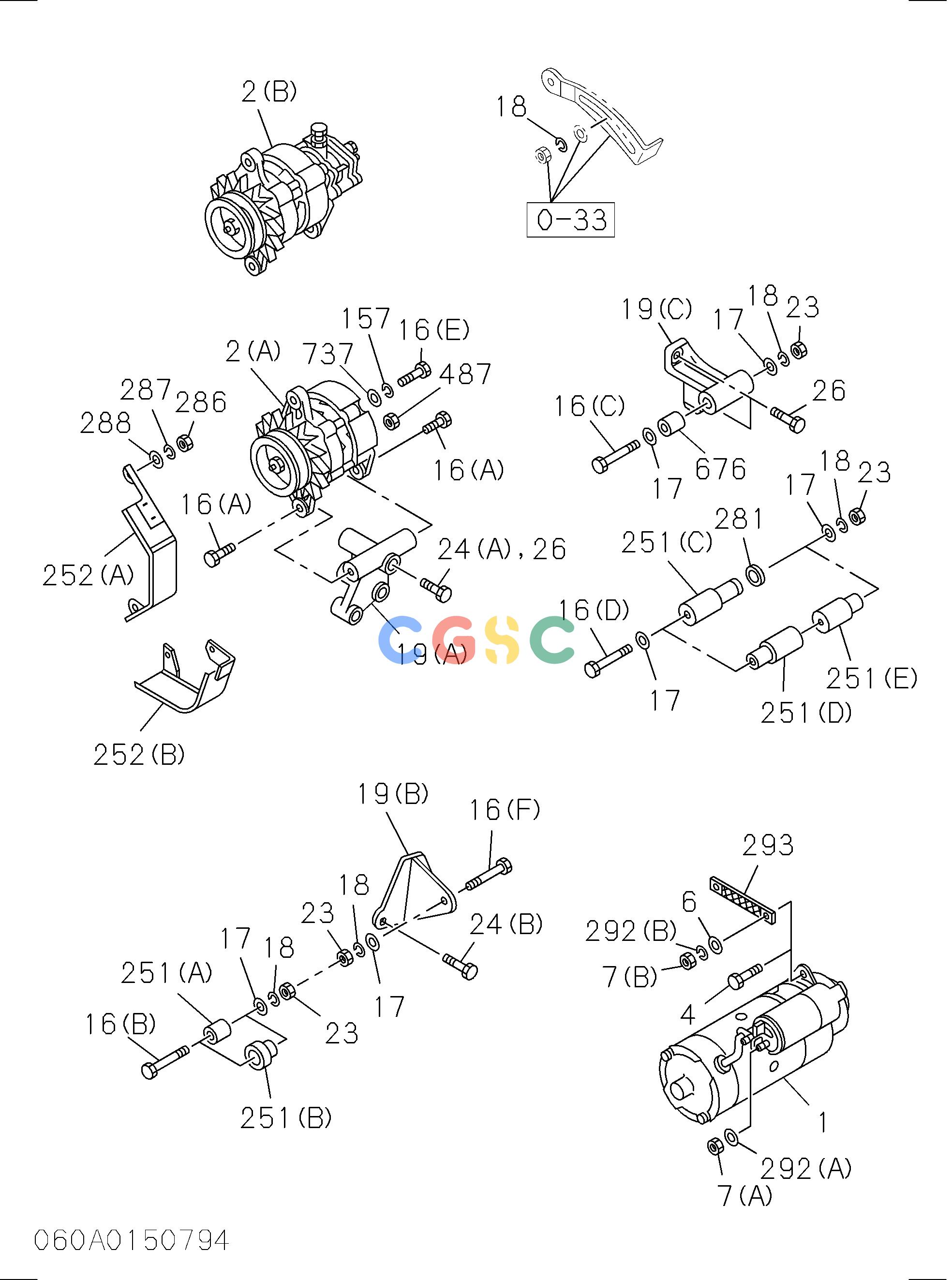

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1811001892 | [1] | STARTER ASM | 24V-4.5KW NIKKOSEE FIG-NO 0-65 FOR COMPONENT. |
| 2(A). | 1812003820 | [1] | GENERATOR ASM | 24V-25A NIKKOSEE FIG-NO 0-66 FOR COMPONENT. |
| 4. | 0500512280 | [1] | BOLT; STARTER | M12X28 |
| 4. | 0500512350 | [2] | BOLT; STARTER | M12X35 W/LK WASHER |
| 6. | 9091605120 | [1] | WASHER; PL,STARTER | |
| 16(C). | 1090001331 | [1] | BOLT; GEN | |
| 17. | 9091605140 | [2] | WASHER; PL,GEN | |
| 17. | 9091607120 | [2] | WASHER; PL,GEN | |
| 18. | 9091505140 | [1] | WASHER; LK,GEN | |
| 18. | 9091505120 | [1] | WASHER; LK,GEN | |
| 19(C). | 5197110312 | [1] | BRACKET; GEN | |
| 23. | 9991104140 | [1] | NUT; GEN | |
| 26. | 0500410250 | [1] | BOLT; GEN BRKT | M10X25 W/LK WASHER |
| 26. | 0500410350 | [2] | BOLT; GEN BRKT | M10X35 W/LK WASHER |
| 38. | 9825300460 | [1] | RESISTOR; CONT,GLOW PLUG | |
| 89(B). | 5824500141 | [1] | SWITCH; OVER HEAT WARNING | |
| 293. | 9829315110 | [1] | CABLE; STARTER EARTH | |
