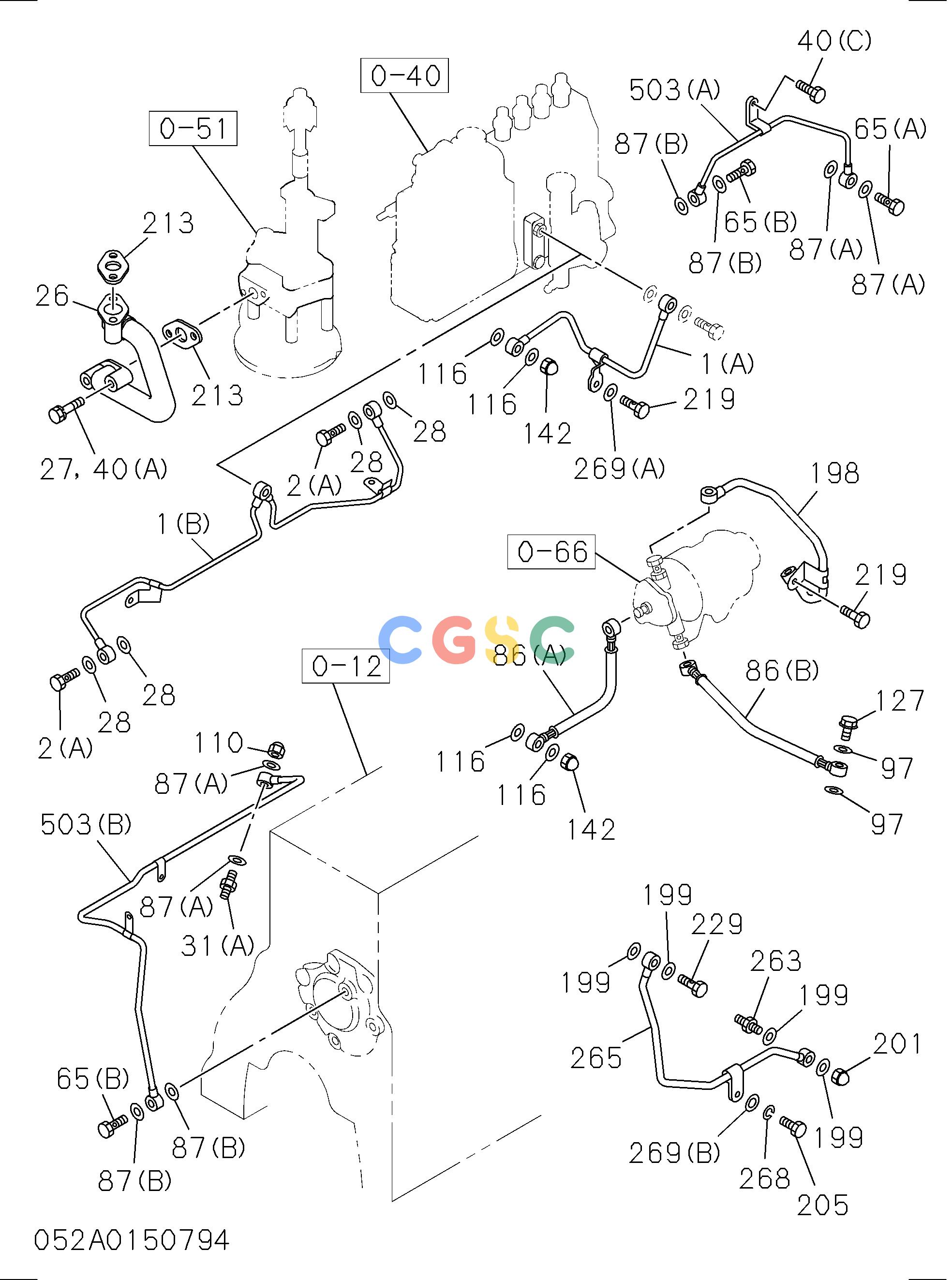

日立零件查询（BX70D）OIL AND VACUUM PIPING; ENGINE Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
716 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 8944284630 | [1] | PIPE; OIL,INJ PUMP TO C/BL | |
| 26. | 8941310603 | [1] | PIPE; OIL,PUMP TO C/BL | |
| 37(A). | 5133112561 | [1] | PIPE; OIL,FILTER TO COOLER | |
| 37(A). | 5133112561 | [1] | PIPE; OIL,FILTER TO COOLER | |
| 40(A). | 0501408450 | [4] | BOLT; OIL PIPE | M8X45 W/LK & PL WAS |
| 40(B). | 0500408350 | [2] | BOLT; OIL PIPE | M8X35 W/LK WASHER |
| 40(B). | 0280808320 | [2] | BOLT; OIL PIPE | M8X32 FLANGE |
| 40(B). | 0500408320 | [2] | BOLT; OIL PIPE | M8X32 W/LK WASHER |
| 40(B). | 0280808300 | [2] | BOLT; OIL PIPE | M8X30 FLANGE |
| 47(B). | 1096234620 | [2] | GASKET; OIL PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 116. | 9095720100 | [2] | GASKET; CAP NUT,OIL PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 142. | 9098440220 | [1] | NUT; CAP,OIL PIPE,INJ PUMP TO C/BL | |
| 213. | 9099211880 | [2] | GASKET; ROCKER OIL FEED PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 277(B). | 5117500021 | [1] | CAP; OIL FILLER | |
| 315(A). | 8943708370 | [1] | GASKET; OIL FILLER | |
| 315(B). | 9099206090 | [1] | GASKET; OIL FILLER | |
| 448(C). | 5117410250 | [1] | FILLER; OIL | |
| 449(A). | 5090000841 | [2] | BOLT; OIL FILLER | |
