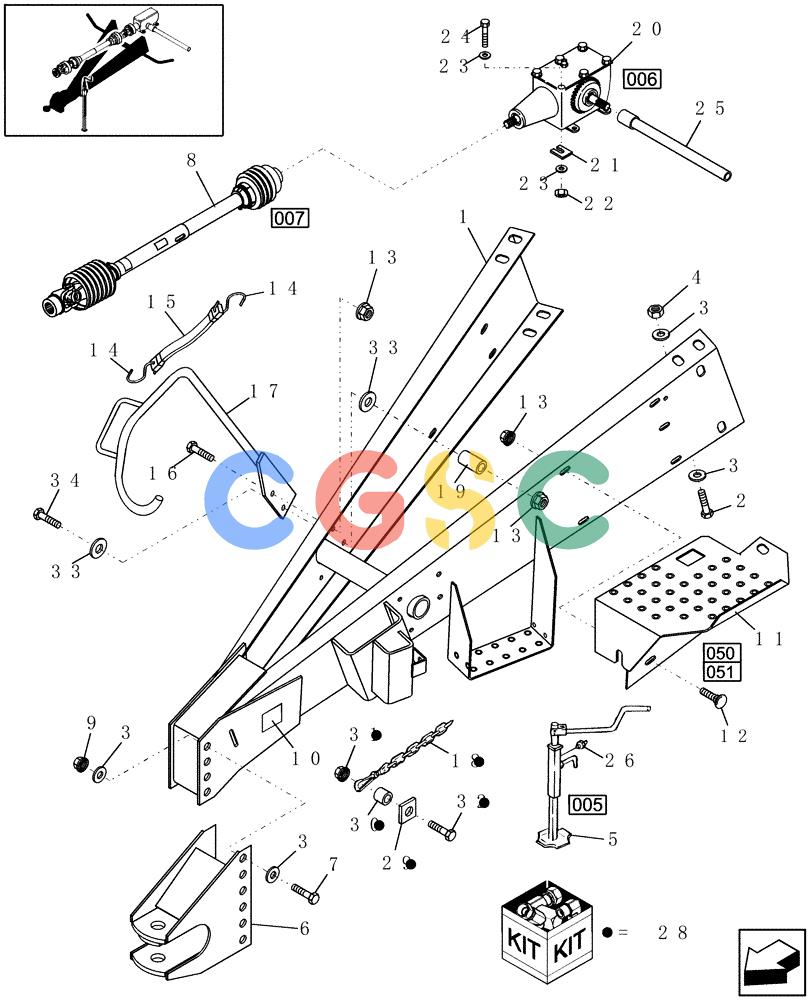

| 1. |
86500991
|
[1] |
HITCH
|
NH
Tongue
|
| 2. |
414-1024
|
[12] |
BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 88112
|
| 3. |
130358
|
[28] |
WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk
|
NH
1-1/2" OD
|
| 4. |
9602227
|
[12] |
LOCK NUT,5/8"-18, GC
|
NH
Superseded by part number: 232-46410
|
| 5. |
86625983
|
[1] |
JACK ASSY.
|
NH
Refer to Fig. 002
|
| 6. |
86635209
|
[1] |
HITCH
|
NH
|
| 7. |
413-1080
|
[2] |
BOLT,Hex, 5/8" - 11 x 5", Gr 5
|
CAS
Superseded by part number: 88729
|
| 8. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Power Take Off, Refer to Fig. 004
|
| 9. |
85700693
|
[2] |
NUT,5/8" - 11, Gr C
|
NH
|
| 10. |
28296
|
[1] |
DECAL
|
NH
Hitch/PTO
|
| 11. |
86510166
|
[1] |
STEP
|
NH
|
| 12. |
811-10020
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| 13. |
825-51410
|
[4] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 14. |
115680
|
[2] |
HOOK
|
NH
Anchor
|
| 15. |
273672
|
[1] |
FASTENER
|
NH
Rubber
|
| 16. |
614-10030
|
[1] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 17. |
86529838
|
[1] |
SUPPORT
|
NH
Hose
|
| 18. |
850116
|
[1] |
CHAIN
|
NH
Safety Tow
|
| 19. |
86500987
|
[1] |
SPACER
|
NH
|
| 20. |
86636907
|
[1] |
GEARBOX
|
NH
540 RPM, Refer to Fig. 003
|
| 21. |
163962
|
[1] |
SHIM,.015" Thk
|
NH
|
| 22. |
825-1416
|
[4] |
NUT,M16, Cl 8
|
CAS
Superseded by part number: 100020
|
| 23. |
781316
|
[8] |
WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk
|
NH
|
| 24. |
814-16060
|
[4] |
BOLT,Hex, M16 x 2 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 323866
|
| 25. |
86636672
|
[1] |
DRIVE SHAFT
|
NH
& Coupler
|
| 26. |
219-87
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 28. |
86621157
|
[1] |
KIT
|
NH
Safety Tow Chain, Includes Ref.18, 29 - 32, & Instuctions
|
| 29. |
BER714680
|
[1] |
|
PLATE
|
| 30. |
86607695
|
[1] |
SPACER,17.48mm ID x 28.6mm OD x 20.6mm L
|
NH
|
| 32. |
414-10104
|
[1] |
BOLT,Hex, 5/8" - 18 x 6-1/2", Gr 5
|
CAS
Superseded by part number: 281053
|
| 33. |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 34. |
814-10060
|
[1] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 120070
|
