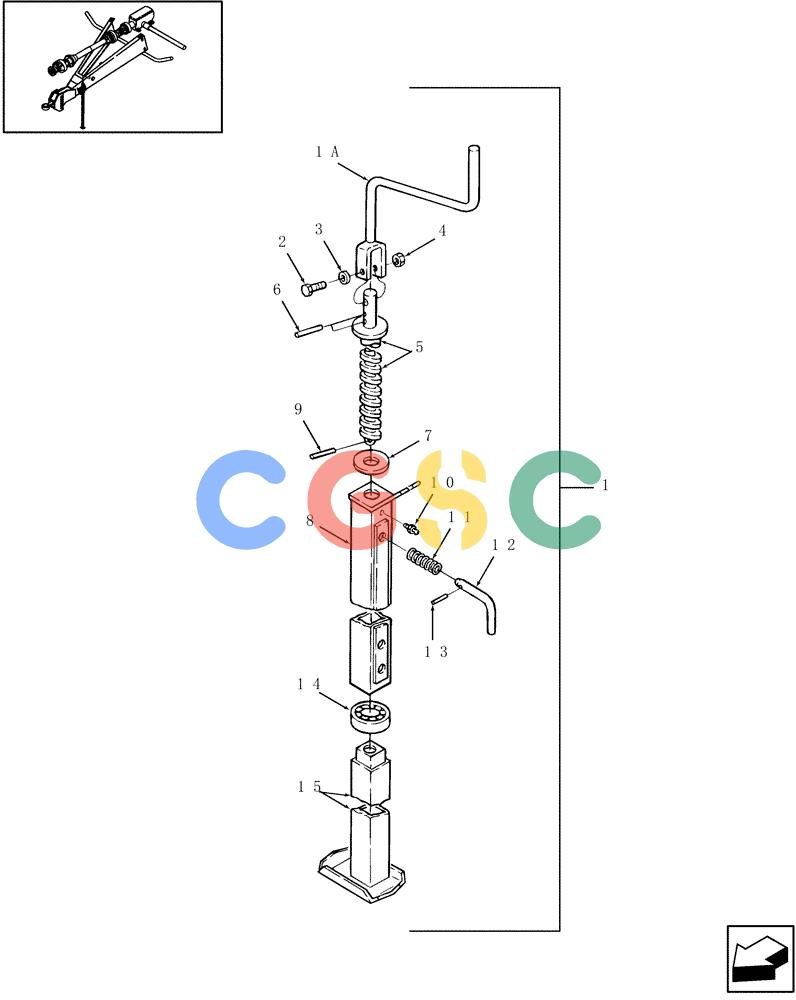

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (005) - JACK Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86625983
|
[1] |
JACK ASSY.
|
NH
|
| 1A. |
86609845
|
[1] |
CRANKED HANDLE
|
NH
|
| 2. |
814-10050
|
[1] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 3. |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 4. |
832-46410
|
[1] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 5. |
604231
|
[1] |
JACK SCREW
|
NH
|
| 6. |
435-5824
|
[2] |
GROOVED PIN,1/4" x 1 1/2", Type E
|
CAS
Superseded by part number: 87876
|
| 7. |
495-21081
|
[1] |
WASHER,3/4"
|
CAS
Superseded by part number: 86511191
|
| 8. |
86635208
|
[1] |
TUBE
|
NH
|
| 9. |
435-5616
|
[1] |
GROOVED PIN,3/16" x 1", Type E
|
CAS
Superseded by part number: 9707565
|
| 10. |
219-87
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 11. |
26538
|
[1] |
SPRING
|
NH
Superseded by part number: 86611329
|
| 12. |
86611330
|
[1] |
PIN,16.56mm OD
|
NH
Jack, 9/16" x 2-7/8"
|
| 13. |
38-1820
|
[1] |
LOCK PIN,1/8" x 1 1/4", Slotted
|
CAS
Superseded by part number: 87913
|
| 14. |
9801922
|
[1] |
THRUST BEARING,19.25mm ID x 35.97mm OD x 11.76mm W
|
NH
|
| 15. |
86629877
|
[1] |
JACK
|
NH
Jack
|
