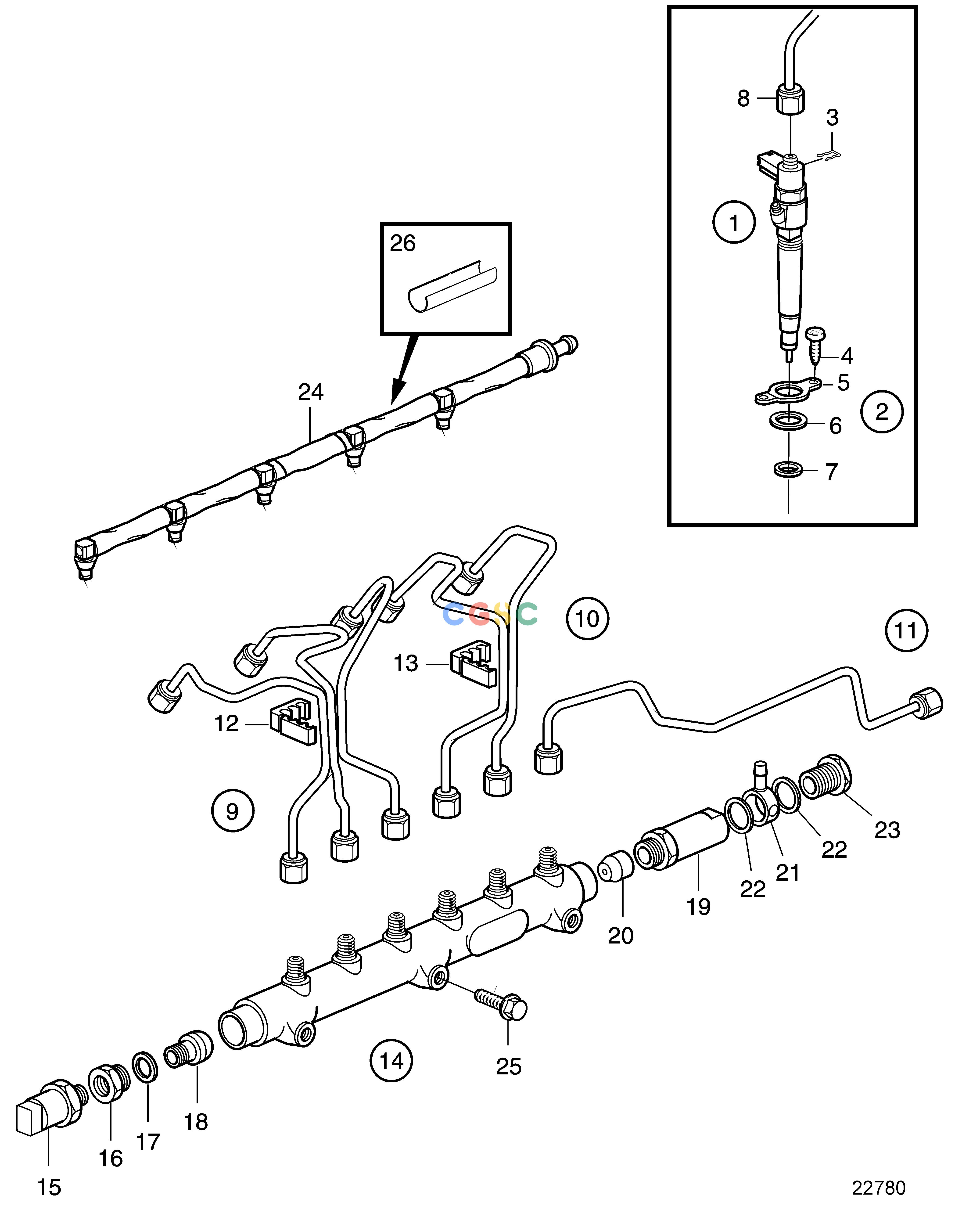

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Fuel SystemFuel Injector and Delivery PipeEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801152
|
[1] |
Injector, cyl 1
|
|
| 1. |
3801153
|
[1] |
Injector, cyl 2
|
|
| 1. |
3801154
|
[1] |
Injector, cyl 3
|
|
| 1. |
3801155
|
[1] |
Injector, cyl 4
|
|
| 1. |
3801156
|
[1] |
Injector, cyl 5
|
|
| 2. |
30650390
|
[1] |
Kit
|
|
| 3. |
8631586
|
[1] |
Clamp
|
|
| 4. |
987494
|
[2] |
Flange screw
|
|
| 5. |
8631583
|
[1] |
Retaining clamp
|
|
| 6. |
8692479
|
[1] |
Washer
|
|
| 7. |
8631582
|
[1] |
Washer
|
|
| 8. |
|
|
|
Included in exchange kit for injector.
|
| 9. |
30731826
|
[1] |
Pressure pipe
|
Fuel pipe cyl. 1-3, Clips 30677791 included., (30677135)
|
| 10. |
31272680
|
[1] |
Pressure pipe
|
Fuel pipe cyl. 4-5, Clips 8631597 included., (30677136)
|
| 11. |
30731828
|
[1] |
Pressure pipe
|
(30677137)
|
| 12. |
30677791
|
[1] |
Clip
|
For three pipes.
|
| 13. |
8631597
|
[1] |
Clip
|
For tvo pipes.
|
| 14. |
8658252
|
[1] |
Common rail
|
(30622085)
|
| 15. |
30637150
|
[1] |
Pressure sensor
|
(30637412)
|
| 16. |
8627834
|
[1] |
Adapter
|
|
| 17. |
8627837
|
[1] |
Gasket
|
|
| 18. |
|
|
|
|
| 19. |
30637151
|
[1] |
Valve
|
|
| 20. |
|
|
|
|
| 21. |
8667542
|
[1] |
Banjo nipple
|
|
| 22. |
11996
|
[2] |
Gasket
|
|
| 23. |
986735
|
[1] |
Screw
|
|
| 24. |
30750957
|
[1] |
Leak-off line
|
(8670357)
|
| 25. |
982781
|
[3] |
Flange screw
|
|
| 26. |
3808926
|
[1] |
Tape
|
L=80mm
|
