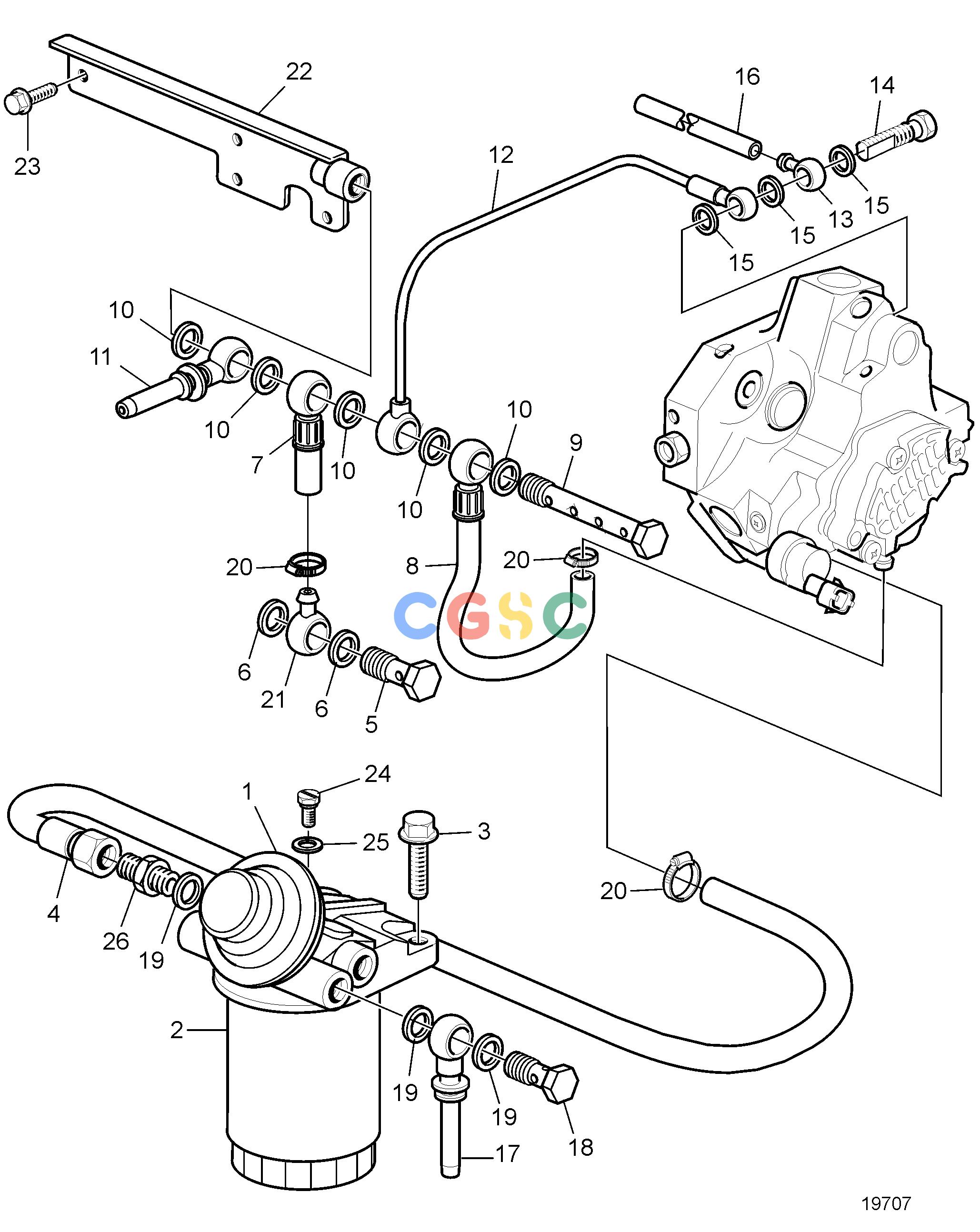

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Fuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
125 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3586804
|
[1] |
Filter housing
|
Repl by 3884825
|
| 1. |
3884825
|
[1] |
Fuel filter kit
|
|
| 2. |
31261191
|
[1] |
Fuel filter
|
(8683212)
|
| 3. |
946472
|
[2] |
Flange screw
|
M10x30mm
|
| 4. |
3584300
|
[1] |
Hose
|
|
| 5. |
986735
|
[1] |
Screw
|
|
| 6. |
11996
|
[2] |
Gasket
|
|
| 7. |
3584309
|
[1] |
Hose
|
|
| 8. |
3584341
|
[1] |
Hose
|
|
| 9. |
3584469
|
[1] |
Hollow screw
|
|
| 10. |
969011
|
[5] |
Gasket
|
|
| 11. |
3587322
|
[1] |
Banjo nipple
|
|
| 12. |
3587321
|
[1] |
Pipe
|
|
| 13. |
8642836
|
[1] |
Nipple
|
|
| 14. |
3580939
|
[1] |
Screw
|
|
| 15. |
8642838
|
[3] |
Gasket
|
|
| 16. |
3584310
|
[1] |
Hose
|
|
| 17. |
3587322
|
[1] |
Banjo nipple
|
|
| 18. |
25167
|
[1] |
Hollow screw
|
|
| 19. |
969011
|
[3] |
Gasket
|
|
| 20. |
993979
|
[4] |
Hose clamp
|
|
| 21. |
8667542
|
[1] |
Banjo nipple
|
|
| 22. |
889511
|
[1] |
Bracket
|
|
| 23. |
968159
|
[2] |
Flange screw
|
M7x30mm
|
| 24. |
3589276
|
[1] |
Air nipple
|
|
| 25. |
11991
|
[1] |
Gasket
|
|
| 26. |
941754
|
[1] |
Nipple
|
|
