日立零件查询（BX70D）STARTER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
321 次

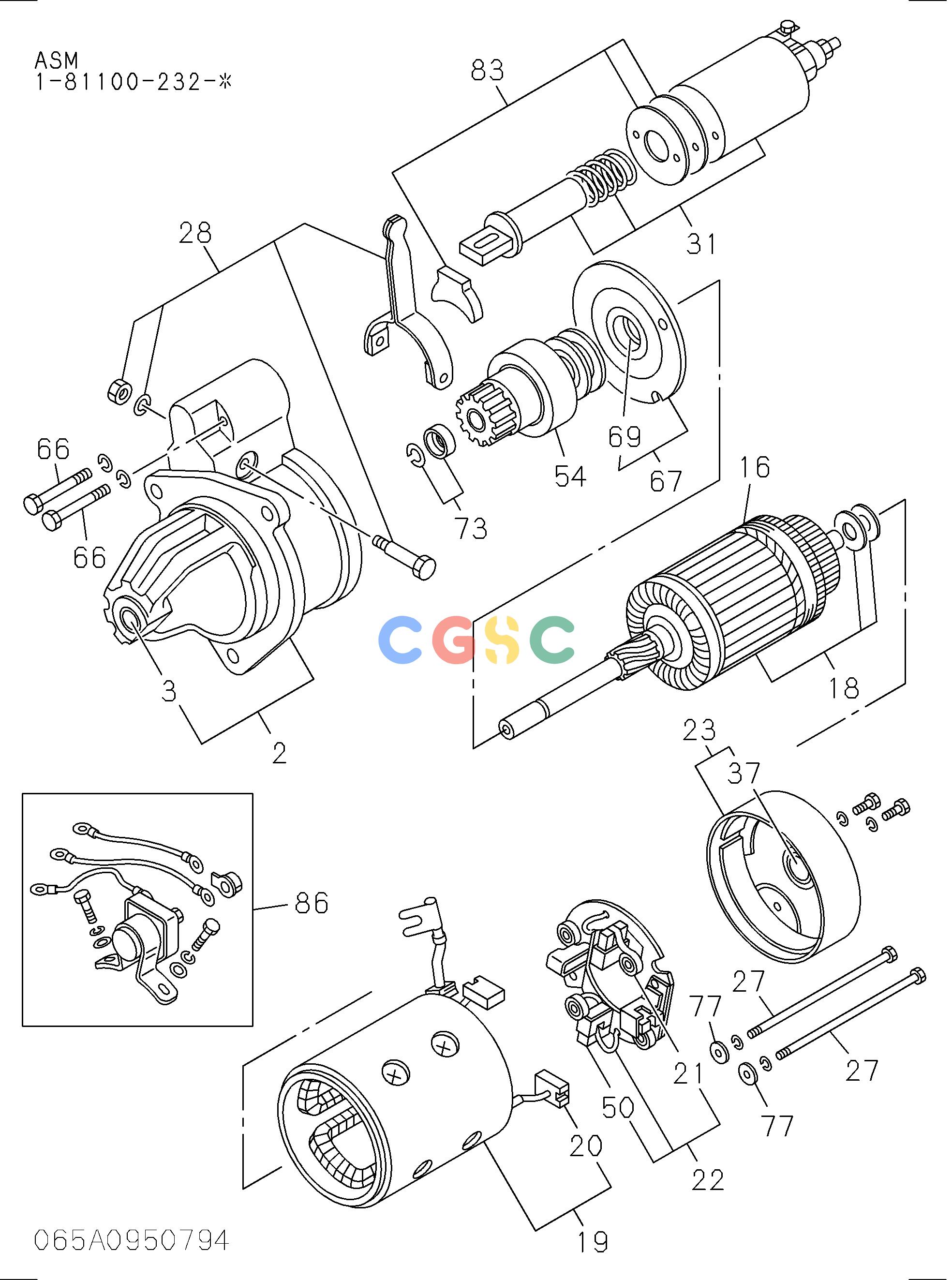

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 1811294380 | [1] | SEAL KIT; STARTER | |
| 002. | 1811230250 | [1] | CASE; PINION,STARTER | |
| 003. | 1811293970 | [1] | METAL; PINION CASE STARTER | |
| 005. | 5811291440 | [2] | CLIP; PINION STOPPER STARTER | |
| 006. | 5811291450 | [1] | STOPPER; PINION STARTER | |
| 008. | 1811130810 | [1] | BRACKET; CENTER STARTER | |
| 009. | 1811293860 | [1] | BEARING; GEAR SHAFT STARTER | |
| 010. | 1811230240 | [1] | SHAFT; GEAR STARTER | |
| 011. | 5811291600 | [1] | WASHER; GEAR SHAFT STARTER | |
| 011. | 5811291590 | [2] | WASHER; GEAR SHAFT STARTER | |
| 011. | 5811291580 | [1] | WASHER; GEAR SHAFT STARTER | |
| 012. | 1811130820 | [1] | BRACKET; CENTER RR STARTER | |
| 015. | 1811160440 | [1] | WIRE; LEAD STARTER | |
| 016. | 1811210370 | [1] | ARMATURE; STARTER | |
| 017. | 1811293950 | [1] | BEARING; ARMATURE,STARTER | |
| 017. | 1811291960 | [1] | BEARING; ARMATURE,STARTER | |
| 017. | 1811293850 | [1] | BEARING; ARMATURE,STARTER | |
| 017. | 5811291550 | [1] | BEARING; ARMATURE,STARTER | |
| 018. | 5811291560 | [2] | WASHER; THRUST,ARMATURE,STARTER | |
| 019. | 1811293960 | [1] | COIL; FIELD,STARTER | |
| 020. | 1811160420 | [2] | BRUSH; (+),STARTER | |
| 021. | 5811170140 | [4] | SPRING; BRUSH HOLDER STARTER | |
| 022. | 1811180360 | [1] | HOLDER; BRUSH STARTER | |
| 023. | 1811150700 | [1] | COVER; RR COVER STARTER | |
| 027. | 5811292140 | [2] | BOLT; THROUGH,STARTER | |
| 027. | 1811293870 | [3] | BOLT; THROUGH,STARTER | |
| 028. | 1811270310 | [1] | LEVER; SHIFT,STARTER | |
| 029. | 1811291850 | [1] | PIN; SHIFT LEVER STARTER | |
| 030. | 5811291470 | [1] | PLATE; ENGAGE SW STARTER | |
| 031. | 5811510360 | [1] | SWITCH; ENGAGE STARTER | |
| 050. | 1811160430 | [2] | BRUSH; (-),STARTER | |
| 054. | 5811220160 | [1] | CLUTCH; PINION,STARTER | |
| 057. | 1811150690 | [1] | COVER ASM; RR,STARTER | |
| 059. | 5811291500 | [1] | TERMINAL; ENGAGE SW STARTER | |
| 060. | 5811291460 | [1] | PLUNGER; ENGAGE SW STARTER | |
| 061. | 5811291480 | [1] | CONTACT; ENGAGE SW STARTER | |
| 062. | 9821161400 | [1] | BUSHING; ENGAGE SW STARTER | |
| 063. | 5811180190 | [1] | HOLDER; ENGAGE SW STARTER | |
| 064. | 9821161420 | [1] | WASHER; INSULATION ENGAGE SW STARTER | |
| 064. | 5811291510 | [2] | WASHER; INSULATION ENGAGE SW STARTER | |
| 065. | 5811291490 | [2] | RING; CLIP ENGAGE SW STARTER | |
| 066. | 5811292210 | [4] | SCREW; ENGAGE SW STARTER | |
| 077. | 1811291140 | [2] | WASHER; THROUGH BOLT,STARTER | |
| 078. | 1811293840 | [1] | TERMINAL; LEAD WIRE STARTER | |
| 080. | 1811291840 | [1] | NUT; SHIFT LEVER PIN STARTER | |
