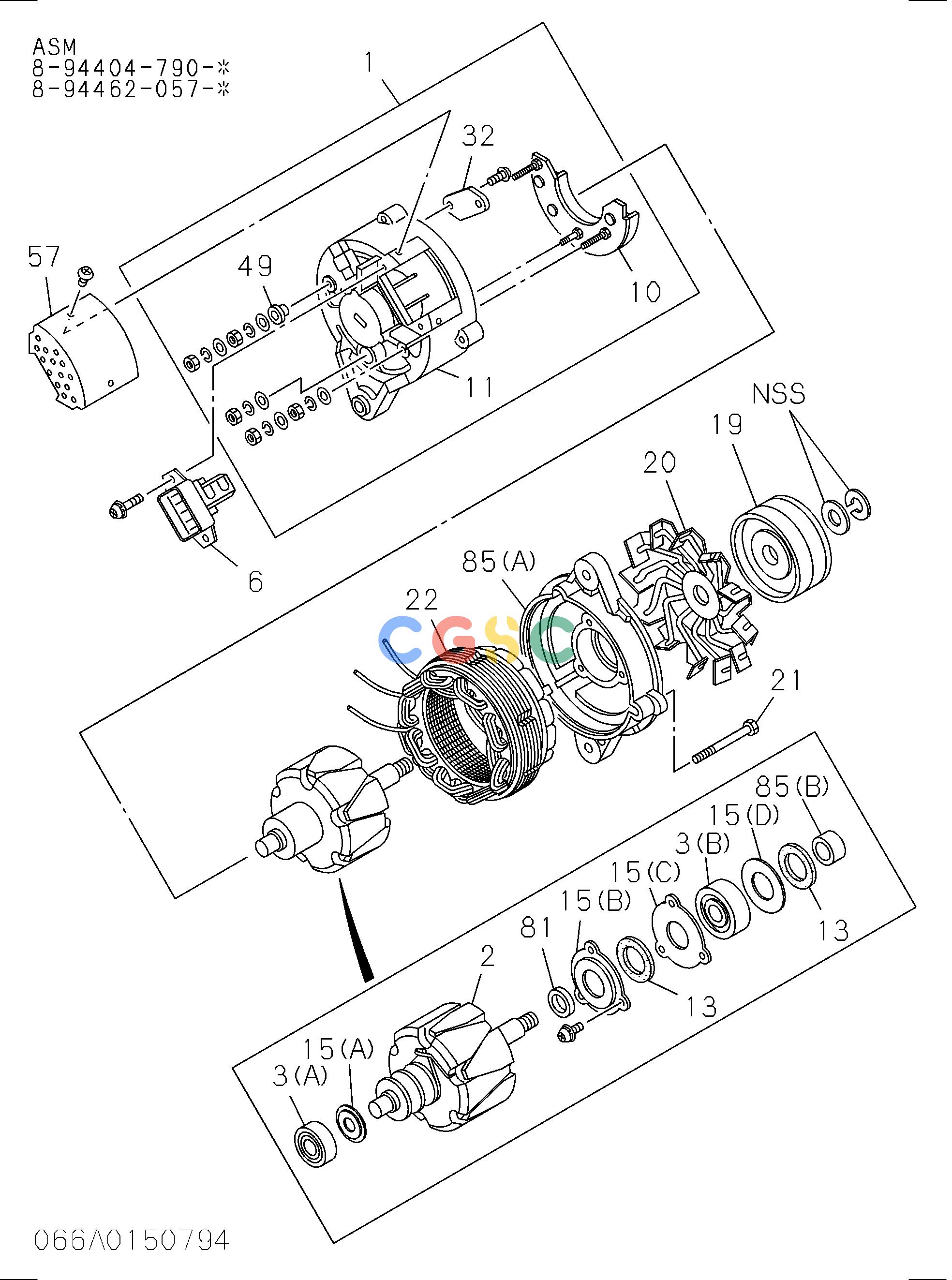

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 1812142410 | [1] | COVER ASM; RR,GEN | |
| 002. | 1812210720 | [1] | ROTOR; GEN | |
| 003. | 8941730540 | [1] | BEARING; ROTOR,GEN | |
| 003. | 1812292250 | [1] | BEARING; ROTOR,GEN | |
| 006. | 1812700070 | [1] | REGULATOR ASM; VOLTAGE,GEN | |
| 010. | 1812170690 | [1] | RECTIFIER; GEN | |
| 011. | 1812142420 | [1] | COVER; RR,GEN | |
| 012. | 9822158670 | [1] | KEY; ROTOR,GEN | |
| 013. | 1812293830 | [2] | GASKET; ROTOR,GEN | |
| 014. | 1812295430 | [1] | COLLAR; STEEL | |
| 014. | 1812295270 | [1] | COLLAR; STEEL | |
| 015. | 8941730600 | [1] | RETAINER; ROTOR,GEN | |
| 015. | 1812295130 | [1] | RETAINER; ROTOR,GEN | |
| 015. | 1812293760 | [1] | RETAINER; ROTOR,GEN | |
| 015. | 1812295260 | [1] | RETAINER; ROTOR,GEN | |
| 017. | 1812130670 | [1] | COVER ASM; FRT,GEN | |
| 019. | 1812220550 | [1] | PULLEY; GEN | |
| 020. | 1812230090 | [1] | FAN; GEN | |
| 022. | 1812110900 | [1] | STATOR; GEN | |
| 025. | 1812295200 | [1] | BUSHING; INSULATION TERMINAL | |
| 049. | 8941730610 | [1] | BUSHING; RECTIFIER,GEN | |
| 051. | 1812295460 | [1] | STOPPER; RECTIFIER,GEN | |
| 057. | 1812295440 | [2] | COVER; BRUSH,GEN | |
| 061. | 1812295580 | [1] | GASKET; BRUSH,GEN | |
| 062. | 1812291220 | [1] | CLIP; TERMINAL,BRUSH,GEN | |
| 069. | 1812295160 | [1] | CLIP; WIRE,GEN | |
