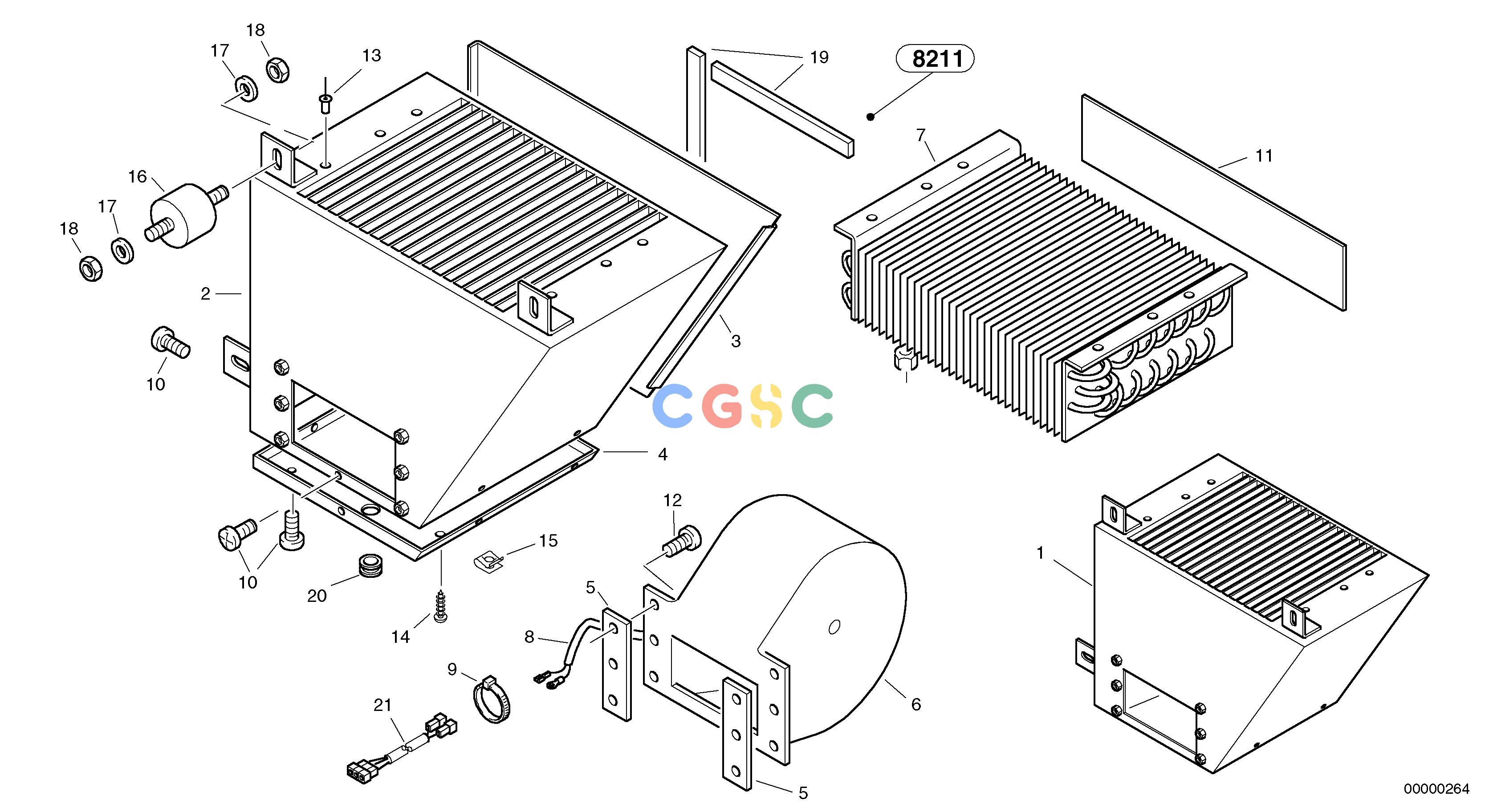

沃尔沃零件查询L40 CondenserTYPE 191, 192 SER NO - 10001910001 - 1910156-1920001 - 1920321NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1005 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2811581
|
[1] |
Condenser
|
|
| 2. |
ZM2907461
|
[1] |
Housing, cpl.
|
|
| 3. |
ZM2907462
|
[1] |
Cover
|
|
| 4. |
ZM2907463
|
[1] |
Floor plate
|
|
| 5. |
ZM2907464
|
[2] |
Blower support
|
|
| 6. |
ZM2907467
|
[1] |
Charger
|
|
| 7. |
ZM2907465
|
[1] |
Condenser
|
|
| 8. |
ZM2907468
|
[1] |
Cable Set
|
|
| 9. |
ZM2290076
|
[3] |
Strip Clamp
|
|
| 10. |
VOE956075
|
[12] |
Cross recessed screw
|
M5x10
|
| 11. |
ZM2290063
|
[2] |
Profiled joint
|
|
| 12. |
ZM2907469
|
[6] |
Screw
|
M5x12
|
| 13. |
ZM2907470
|
[6] |
Blind Rivet
|
4,8x13
|
| 14. |
ZM2290060
|
[2] |
Screw
|
4,2x13
|
| 15. |
ZM2907471
|
[2] |
Nut
|
4,2
|
| 16. |
ZM5024150
|
[3] |
Buffer
|
|
| 17. |
ZM7098750
|
[6] |
Washer
|
B 8,4
|
| 18. |
ZM7098010
|
[6] |
Nut
|
M8
|
| 19. |
ZM4398352
|
[4] |
Sealing strip
|
L = 200MM
|
| 20. |
VOE11305425
|
[1] |
Grommet
|
|
| 21. |
ZM2813898
|
[1] |
Wire
|
|
